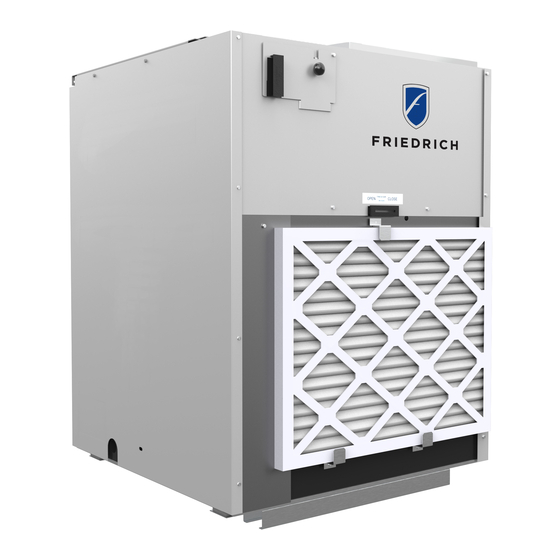

Friedrich VEA09 Product Profile
Heat pump electric heat
Hide thumbs
Also See for VEA09:
- Installation & operation manual (20 pages) ,
- Service manual (44 pages) ,
- Parts manual (8 pages)
Table of Contents
Advertisement
Quick Links
Product Profile
SINGLE PACKAGE VERTICAL AIR CoNdITIoNERS ANd HEAT PUMPS
Completely self-contained unit.
No outside condensing unit, eliminating the need for
external electrical wiring, landscaping and vandalism
barriers.
Unit is wired and charged at the factory.
No refrigerant lines running from floor to floor.
All units are shipped with return air filter installed.
An individual packaged unit can be used to heat or
cool multiple rooms.
Cabinets are fully insulated for improved sound
characteristics and unit performance.
Q U A L I T Y
Safety power disconnect.
Remote thermostat-ready 24-volt transformer.
Complete line of accessories.
Smaller closet dimensions.
Compact and lightweight– weighs as little as 125 lbs.
Unique free-floating chassis.
Ten inch crimped and beaded duct-collar ready to
attach flex-duct.
Easy to connect right, left or rear drain connection.
Easy to install front, left or right hand into closet.
www.friedrich.com
HEAT PUMP
ELECTRIC HEAT
Advertisement
Table of Contents
Related Manuals for Friedrich VEA09
Summary of Contents for Friedrich VEA09
-
Page 1: Heat Pump
Compact and lightweight– weighs as little as 125 lbs. Unique free-floating chassis. Ten inch crimped and beaded duct-collar ready to attach flex-duct. Easy to connect right, left or rear drain connection. Easy to install front, left or right hand into closet. ELECTRIC HEAT www.friedrich.com HEAT PUMP... -
Page 2: Chassis Specifications
Chassis Specifications VEA/VHA09-24 VEA09K C O O L I N G D A T A Cooling Btu/h 9500/9300 Cooling Power (W) 10.8 Sensible Heat Ratio 0.74 H E A T P U M P D A T A Heating Btu/h COP @ 47°F Heating Power (W) Heating Current (A) -
Page 3: Extended Cooling Performance
Extended Cooling Performance VEA - Extended Cooling Performance BTUh 11172 10745 9947 WATTS VEA09 AMPS 0.51 0.69 BTUh 13877 13346 12355 WATTS VEA12 AMPS 0.49 0.67 BTUh 21168 20358 18846 WATTS 1536 1560 1577 VEA18 AMPS 0.48 0.65 BTUh 28224... - Page 4 VPDP1 Drain Pan for all A Series 24,000 Btu/h 09 K 34 RT J Vert-I-Pak Vert-I-Pak® Date: For Reference: VOLTAGE FRIEDRICH MODEL ENGINEERING CODE OPTIONS RT = Standard Remote Operation ELECTRIC HEATER SIZE A Series 25 = 2.5 KW 34 = 3.4 KW 50 = 5.0 KW...
-
Page 5: Application And Installation
24 " w x 30 " h. • The use of a Friedrich wall plenum is required for installa- tion. Plenum opening is " above the floor for 9, 12 and 18k models, and 1 " for 24k BTU/h models. (VPAWP1-8 / VPAWP1-14). - Page 6 VPSC2 to match the exterior wall. DIGITAL THERMOSTAT digital thermostat for control of Friedrich VERT-I-PAK. ACCESS PANEL / RETURN AIR GRILLE – Serves as an access panel to chassis and interior return air grille. A field-supplied (25" x 20") filter is mounted inside the VPRG4 hinged access door.
- Page 7 390 for Single Packaged Vertical Air Conditioners and Heat Pumps. Units shall be ETL listed and carry a ETL label. All units shall be factory run-tested to check operation and be manufactured by Friedrich or equivalent. The basic unit shall not exceed 23 " wide x 23 height of the unit from the bottom of the isolators to the top of the duct collar shall not exceed 32 ¼"...
-
Page 8: Limited Warranty
Friedrich Air Conditioning Company - International Division. Any defective part to be replaced must be made available to FRIEDRICH in exchange for the replacement part. Reasonable proof must be presented to establish the date of install, otherwise the beginning date of this certificate will be considered to be our shipment date plus sixty days.
