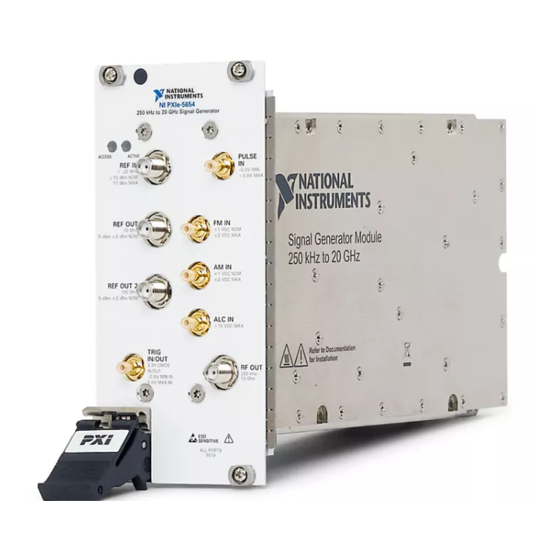

National Instruments NI PXIe-5654 Getting Started Manual
10 ghz or 20 ghz rf signal generator
Hide thumbs
Also See for NI PXIe-5654:
- Calibration procedure (56 pages) ,
- Getting started manual (18 pages) ,
- Calibration procedure (32 pages)
Table of Contents
Advertisement
Quick Links
GETTING STARTED GUIDE
NI PXIe-5654
10 GHz or 20 GHz RF Signal Generator
Note
Before you begin, install and configure your chassis and controller.
This document explains how to install, configure, and test the NI PXIe-5654 (NI 5654) as a
stand-alone device. The NI 5654 is a 10 GHz or 20 GHz continuous-wave RF signal generator.
The NI 5654 ships with the NI-RFSG instrument driver, which you use to program the device.
To access NI 5654 documentation, navigate to Start»All Programs»National Instruments»
NI-RFSG»Documentation.
The specifications document for your device is installed with the driver software. Refer to
ni.com/manuals
for the most recent specifications for your device.
Caution
manner not described in this document.
Hot Surface
temperatures and cause burns. Allow the NI 5654 to cool before removing it from
the chassis.
Contents
Electromagnetic Compatibility Guidelines............................................................................... 2
Verifying the System Requirements..........................................................................................2
Unpacking the Kit..................................................................................................................... 2
Verifying the Kit Contents................................................................................................ 3
Preparing the Environment....................................................................................................... 4
Installing the Software.............................................................................................................. 4
Installing the NI 5654............................................................................................................... 4
Installing the SMA Cables................................................................................................ 6
Configuring the NI 5654 in MAX...........................................................................................10
Programming the NI 5654.......................................................................................................11
NI-RFSG Examples.........................................................................................................11
Generating a Signal Using the NI-RFSG Soft Front Panel.............................................12
Building a Basic NI-RFSG Application..........................................................................12
Troubleshooting...................................................................................................................... 16
Why Is the ACCESS LED Off When the Chassis is On?...............................................16
What Should I Do if the NI 5654 Doesn't Appear in MAX?..........................................16
What Should I Do if the Module Fails the Self-Test?.....................................................17
The protection provided by this product may be impaired if it is used in a
If the NI 5654 has been in use, it may exceed safe handling
Advertisement
Table of Contents
Related Manuals for National Instruments NI PXIe-5654
Summary of Contents for National Instruments NI PXIe-5654
-
Page 1: Table Of Contents
Before you begin, install and configure your chassis and controller. This document explains how to install, configure, and test the NI PXIe-5654 (NI 5654) as a stand-alone device. The NI 5654 is a 10 GHz or 20 GHz continuous-wave RF signal generator. -
Page 2: Electromagnetic Compatibility Guidelines
Furthermore, any modifications to the product not expressly approved by National Instruments could void your authority to operate it under your local regulatory rules. -
Page 3: Verifying The Kit Contents
Optional Items • A 1 N · m standard SMA torque wrench (NI part number 780487-01). • The NI PXIe-5696 amplitude extender (AE) module (NI part number 783128-01). NI PXIe-5654 Getting Started Guide | © National Instruments | 3... -
Page 4: Preparing The Environment
Installing the NI 5654 Caution To prevent damage to the device caused by ESD or contamination, handle the device using the edges or the metal bracket. You must install NI-RFSG before installing the hardware. 4 | ni.com | NI PXIe-5654 Getting Started Guide... - Page 5 Ensure that the ejector handle is in the unlatched (downward) position. Place the module edges into the module guides at the top and bottom of the chassis. Slide the device into the slot until it is fully inserted. NI PXIe-5654 Getting Started Guide | © National Instruments | 5...
-
Page 6: Installing The Sma Cables
The signal pins of this product's input/output ports can be damaged if subjected to ESD. To prevent damage, remove power from the product before connecting cables and employ industry-standard ESD prevention measures during installation, maintenance, and operation. 6 | ni.com | NI PXIe-5654 Getting Started Guide... - Page 7 • If you are using an active device, such as a preamplifier or switch routed to the NI 5654, ensure no signal transients are sourced to the NI 5654. NI PXIe-5654 Getting Started Guide | © National Instruments | 7...
- Page 8 The signal pins of this product's input/output ports can be damaged if subjected to ESD. To prevent damage, turn off power to the product before connecting cables and employ industry-standard ESD prevention measures during installation, maintenance, and operation. 8 | ni.com | NI PXIe-5654 Getting Started Guide...
- Page 9 Input terminal that connects to the ALC OUT connector of the NI 5696 AE. RF OUT Output terminal for the generated RF signal at the requested frequency and power level. NI PXIe-5654 Getting Started Guide | © National Instruments | 9...
-
Page 10: Configuring The Ni 5654 In Max
Configuring the NI 5654 in MAX Use Measurement & Automation Explorer (MAX) to configure your National Instruments hardware. MAX informs other programs about which devices reside in the system and how they are configured. MAX is automatically installed with NI-RFSG. -
Page 11: Programming The Ni 5654
NI-RFSG Examples Examples demonstrate the functionality of the device and serve as programming models and building blocks for your own applications. The NI Example Finder is a utility available for NI PXIe-5654 Getting Started Guide | © National Instruments | 11... -
Page 12: Generating A Signal Using The Ni-Rfsg Soft Front Panel
Right-click the VI block diagram to launch the Functions palette. Navigate to the NI-RFSG VIs on the NI-RFSG palette. You can use the Search button on the Functions palette to find the NI- RFSG palette. 12 | ni.com | NI PXIe-5654 Getting Started Guide... - Page 13 You can use the Search button on the Functions palette to find the Structures palette. Enclose the niRFSG Check Generation Status VI in the While Loop, as shown in the following figure. NI PXIe-5654 Getting Started Guide | © National Instruments | 13...
- Page 14 Create an error indicator by right-clicking the error out output of the niRFSG Close VI and selecting Create»Indicator. Verify that the VI block diagram and VI front panel now look similar to the following figures. 14 | ni.com | NI PXIe-5654 Getting Started Guide...
- Page 15 Click the VI front panel STOP button to stop sine wave generation. You have successfully generated a continuous sine wave signal using the NI-RFSG instrument driver and the NI 5654. NI PXIe-5654 Getting Started Guide | © National Instruments | 15...
-
Page 16: Troubleshooting
Right-click the Start screen, and select All apps»Control Panel» Hardware and Sound»Device Manager. Windows 7 Select Start»Control Panel»Device Manager. Windows Vista Select Start»Control Panel»System and Maintenance»Device Manager. Windows XP Select Start»Control Panel»System»Hardware»Device Manager. 16 | ni.com | NI PXIe-5654 Getting Started Guide... -
Page 17: What Should I Do If The Module Fails The Self-Test
If you are using a PXI controller, verify that a National Instruments entry appears in the system device list. Reinstall NI-RFSG and the device if error conditions appear in the list. If you are using an MXI controller, right-click PCI-to-PCI Bridge, and select Properties from the shortcut menu to verify that the bridge is enabled. - Page 18 RF fundamentals, device features, and programming with NI-RFSG. Worldwide Support and Services The National Instruments website is your complete resource for technical support. At ni.com/ support, you have access to everything from troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers.
- Page 19 National Instruments corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. National Instruments also has offices located around the world. For telephone support in the United States, create your service request at ni.com/support...
- Page 20 Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the file on your media, or the National Instruments Patent Notice at .
