USER GUIDE
NI Smart Camera I/O Accessory
This document describes the features of the NI Smart Camera I/O Accessory, what you need to get
started, installation and operation instructions, and accessory specifications.
The NI Smart Camera I/O Accessory features the following:
•
Spring terminals for two isolated inputs
•
Spring terminals for two isolated outputs
•
Spring terminals for the quadrature encoder inputs
•
Two power connection options
•
An RS-232 connector to communicate with the smart camera serial port
•
User-replaceable fuses for isolated outputs, RS-232, and accessory power
•
Built-in DIN rail clips for easy mounting

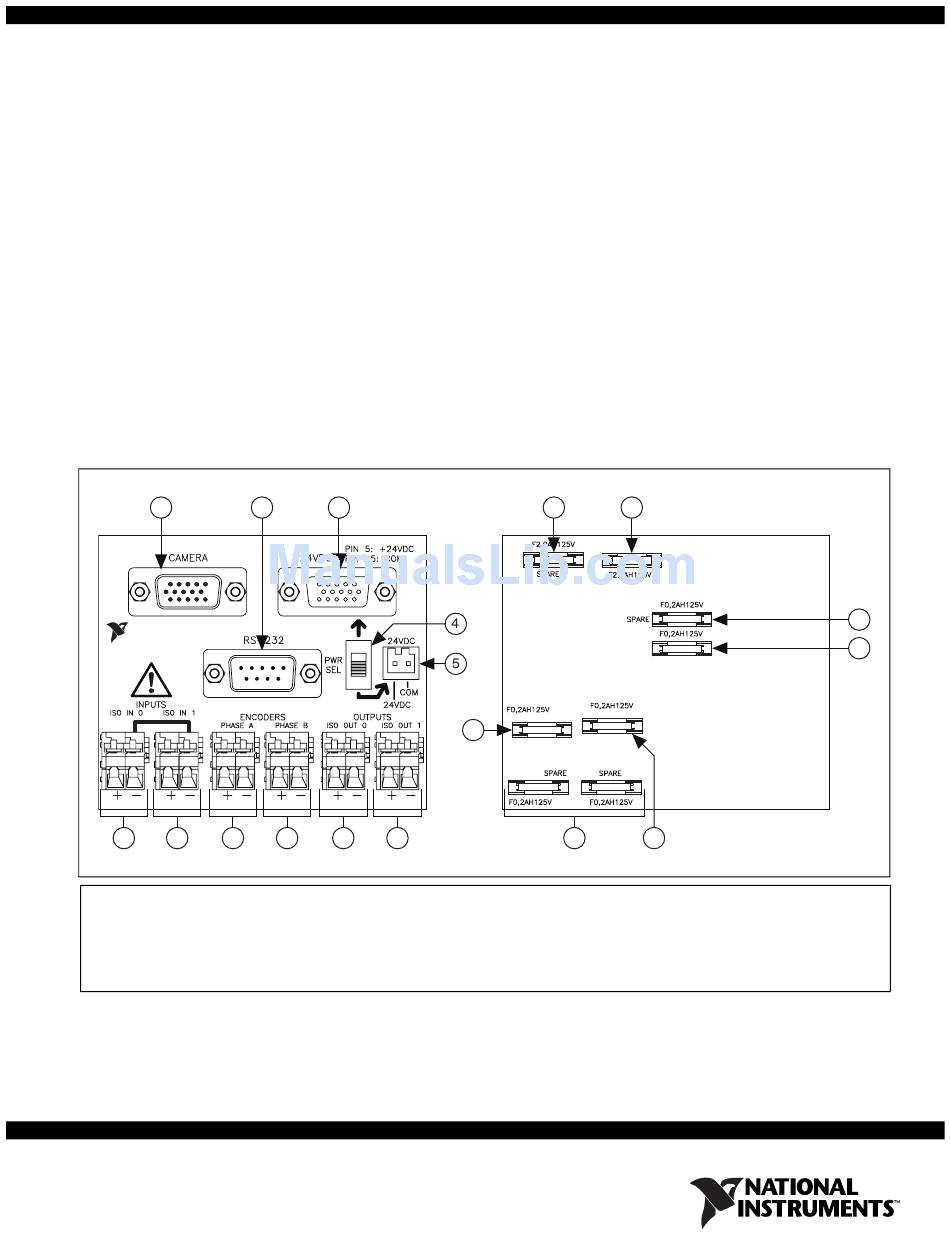

Figure 1 shows the accessory circuit board parts locator diagram.
1
2
NATIONAL
INSTRUMENTS
NI SMART CAMERA
I/O ACCESSORY
11
10
9
1
Camera D-SUB Connector
2
RS-232 D-SUB Connector
3
24 VDC D-SUB Connector
4
Power In Selection Switch
5
24VDC Two-Position Connector
6
Isolated Output 1 Terminals
Figure 1. Front and Back Views of the NI Smart Camera I/O Accessory Circuit Board
3
8
7
6
7
Isolated Output 0 Terminals
8
Quadrature Encoder Phase B Terminals
9
Quadrature Encoder Phase A Terminals
10 Isolated Input 1 Terminals
11 Isolated Input 0 Terminals
12 Spare Power Fuse
12
13
18
17
16
13 Power Fuse
14 Spare RS-232 Fuse
15 RS-232 Fuse
16 Isolated Output 0 Fuse
17 Spare Isolated Output Fuses
18 Isolated Output 1 Fuse
14
15
Advertisement
Table of Contents
Related Manuals for National Instruments Smart Camera
Summary of Contents for National Instruments Smart Camera
-
Page 1: User Guide
USER GUIDE NI Smart Camera I/O Accessory This document describes the features of the NI Smart Camera I/O Accessory, what you need to get started, installation and operation instructions, and accessory specifications. The NI Smart Camera I/O Accessory features the following: •... -
Page 2: What You Need To Get Started
❑ Wire insulation stripper ❑ Related documentation—The following documents, available from information you may find helpful as you set up and use the NI Smart Camera I/O Accessory: – Getting Started with the NI 17xx Smart Camera – NI 17xx Smart Camera User Manual... - Page 3 MAINS for measuring purposes. © National Instruments Corporation marked on the hardware label. Measurement and transient stresses (overvoltage) from the circuit to which voltage. This category is for measurements of NI Smart Camera I/O Accessory User Guide...
-
Page 4: Installation
For serial communication purposes, connect an RS-232 cable to the RS-232 connector on the accessory and to the serial port on your computer. Refer to the NI 17xx Smart Camera User Manual for information about configuring and using the serial port of the smart camera. -
Page 5: Apply Power
Apply Power When power is first applied to the smart camera, the POWER LED flashes red for one second while internal systems power up. The POWER LED then lights green when power is correctly wired to the smart camera. If the smart camera does not power up, check all connections and the power in selection... -
Page 6: Testing Fuses
Additional power two-position header connectors (part number 734-102) can be ordered from Wago at www.wago.com Fuses The NI Smart Camera I/O Accessory has four replaceable fuses. Refer to Figure 1 for the fuse locations. • The power fuse (2 A), protects the NI Smart Camera from overcurrent through the +24 VDC connectors. -
Page 7: Replacing Fuses
Description 2A, 125V lead-free very fast-acting NANO ceramic surface mount fuse, 6.10 × 2.69 mm 200mA, 125V lead-free very fast-acting NANO subminiature ceramic surface mount fuse, 6.10 × 2.69 mm subminiature NI Smart Camera I/O Accessory User Guide... -
Page 8: Specifications
Pollution Degree ...2 Approved at altitudes up to 2,000 m. Safety The NI Smart Camera I/O Accessory is designed to meet the requirements of the following standards of safety for electrical equipment for measurement, control, and laboratory use: • IEC 61010-1, EN 61010-1 •... -
Page 9: Compliance With Eu Directives
CE Compliance The NI Smart Camera I/O Accessory meets the essential requirements of applicable European Directives, as amended for CE marking, as follows: • 2006/95/EC; Low-Voltage Directive (safety) • 2004/108/EC; Electromagnetic Compatibility Directive (EMC) Note Refer to the Declaration of Conformity (DoC) for this product for any additional regulatory compliance information. -
Page 10: Where To Go For Support
National Instruments corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. National Instruments also has offices located around the world to help address your support needs. For telephone support in the United States, create your service request at and follow the calling instructions or dial 512 795 8248. - Page 11 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your...
