1 Introduction
1.1 conga-SKIT
The conga-SA5 features a quad-core Intel
up to 2.0 GHz, Gen 9 graphics with 18 execution units and 8 GB LPDDR4
RAM. Other features are 433 Mbit/s WLAN 802.11 b/g/n/ac, Bluetooth LE,
dual GbE, USB 3.0, 32 GB eMMC 5.0 flash memory and TPM 2.0.
The conga-SEVAL evaluation carrier board provides 1x PCIe x4, 1x PCIe x1, 1x
mini PCIe, 1x M.2 Key E, 2x USB 3.0, and 4x USB 2.0 for generic extensions. It
also provides 2x RJ45 for Gigabit Ethernet, 4x COM, 1x CAN bus, 12x GPIO,
Digital and analog audio I/Os for I2S and HDA. Displays can be connected
via dual channel LVDS, eDP, DP and HDMI. Additional storage media are
available via a SD/MMC socket and 1x SATA 6G.
The conga-SKIT also includes an ATX power supply, WLAN pigtail cable, LVDS
adapter, SATA, USB cables, as well as a heatspreader and cooling solution for
the module.
1.2

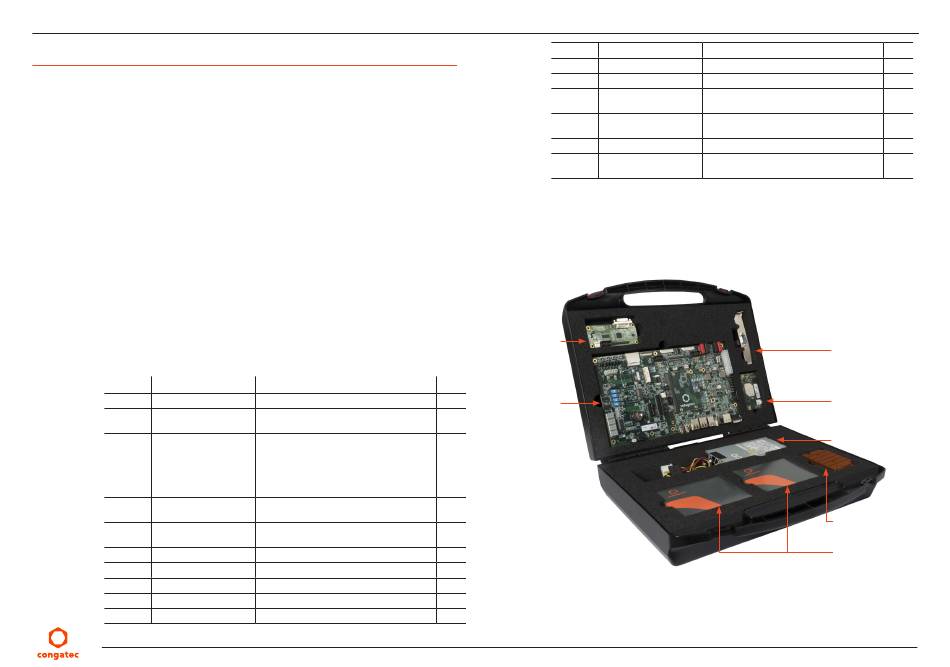

Kit Contents

PN. No Name
077650 conga-SKIT
007010 conga-SEVAL
050030 conga-SA5/E3950-8G
eMMC32 WiFi/TPM
050051 conga-SA5/i-CSP-B
050053 conga-SA5/i-HSP-B
500016 ATX power supply
10000251 WLAN Twin Antenna
48000029 SATA III cable
033331 cab-LVDV-DAT-34-15
052147 cab-LVDV-PWR-10-15
Copyright © 2017 congatec AG
® Atom™ x7-E3950 processor with
Description
Starterkit for SMARC 2.0 modules
Evaluation carrier board for standard SMARC
modules based on SMARC Specification 2.0
SMARC 2.0 module with Intel Atom™ x7-
®
E3950 quad core processor with 1.6 GHz core
frequency up to 2.0 GHz, 2 MB L2 cache,
8 GB 2400MT/s LPDDR4 onboard memory
and 32 GB eMMC onboard flash. Intel AC3165
WiFi/BT module and TPM 2.0 onboard.
Passive cooling for SMARC 2.0 module conga-
SA5. All stand-offs are bore hole 2.7mm
Standard Heatspreader for SMARC 2.0 module
conga-SA5. All stand-offs are bore hole 2.7mm
FSP180-50L max. 180 W (150 x 81.5 x 40.5 mm)
25cm 802.11 ac/a/h/b/g/n 5dBi WLAN antenna
30cm SATA III cable, straight / straight
15cm data cable LVDS to DVI adapter
15cm power cable LVDS to DVI adapter
14000199 USB Type-C to Type-A
14000200 cab-RS232-EVAL
14000202 SATA power cable
91500002 Safety and Regulatory
Information
91500003 Wireless Content
Information
85500012 Quick Start Guide
011115 conga-LDVI/EPI
conga-LDVI/EPI
Qty
conga-SEVAL
1
1
1
1
1
1
1
1
1
SKIT_q12
15cm USB Type-C to Type-A adapter cable
20cm 2x5pin female to D-Sub 9P male
12cm SATA HDD 15pin SATA to 4pin ATX
Safety and Regulatory Information
Wireless Content Information
Quick Start Guide
LVDS to DVI converter board for digital flat
panels with onboard EEPROM
cab-RS232-EVAL
conga-SA5
ATX power supply
conga-SA5/i-HSP-B
conga-SA5/i-CSP-B
Cable set
4/8
1
1
1
1
1
1
1
