1.3

Connecting the Hardware

Steps:
1. Ensure the hardware is protected from the effects of electrostatic
discharge (ESD).
2. Attach the WLAN antenna cable to the MAIN connector of the
conga-SA5 module.
3. Attach the conga-SA5 module to the conga-SEVAL carrier board.
4. Install the conga-SA5/i-HSP-B heatspreader or conga-SA5/i-CSP-B
passive cooling solution using four screws.
ATX power supply
PN: 500016
conga-SA5/i-CSP-B
PN: 050051
Copyright © 2017 congatec AG
cab-LVDV-DAT-34-15
PN: 033331
cab-RS232-EVAL
PN: 14000200

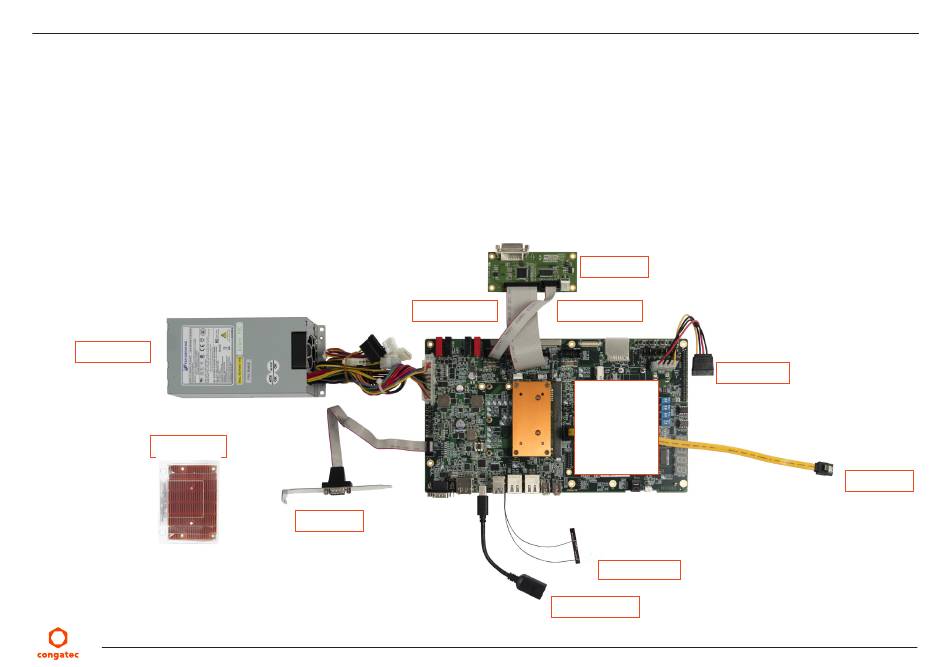

5. Connect the desired adapters, cables and devices as shown in the
image.
6. Connect the ATX power supply to the conga-SEVAL carrier board.
7. Plug a power cable into the ATX power supply (cable not included).
8. Plug the power cable into a power outlet (110V-240V).
conga-LDVI/EPI
PN: 011115
cab-LVDV-PWR-10-15
PN: 052147
conga-SEVAL
PN: 007010
conga-SA5
PN: 050030
conga-SA5/i-HSP-B
PN: 050053
WLAN Twin Antenna
PN: 10000251
USB Type-C to Type-A
PN: 14000199
SKIT_q12
SATA power cable
PN: 14000202
SATA III cable
PN: 48000029
5/8
