Summary of Contents for Congatec conga-SBM3

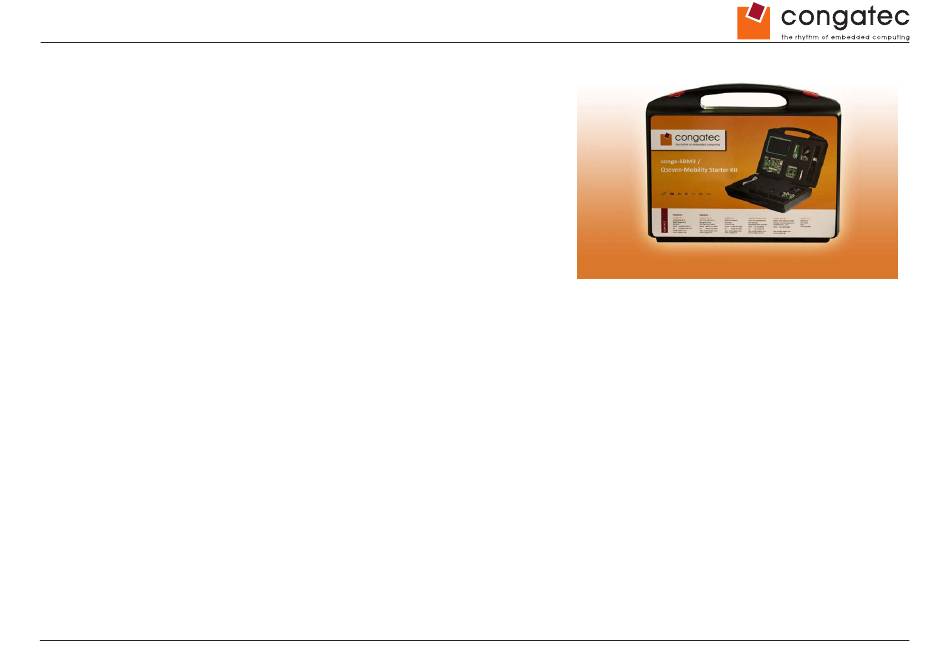

- Page 1 Qseven Mobility Starter Kit Quick Start Guide Copyright © 2013 congatec AG conga-QSMKITq11...
-
Page 2: Required Parts
Required Parts The diagram above shows all the parts needed for the mobility kit to function properly. The cables are described in the next section. Copyright © 2013 congatec AG conga-QSMKITq11... -
Page 3: Cable Definition
The following cables are required to setup a functional system “out of the box”. Fig 5: Display Data Cable (PN: 48000027) Fig 1: USB cable for touchcontroller TSC-34 (PN: 14000087) Fig 2: Control Cable for conga-SBM3 and QMCB (PN: 14000076) Fig 6: Display Backlight Cable (PN: 48000028) Optional Cables... -
Page 4: How To Connect
How To Connect Step 1: Connection on conga-QMCB (PN: 020731). Module Step 3: Connection on smart battery (PN: 10000094) already installed with cooling solution Step 2: Connection on conga-SBM (PN: 025482) Copyright © 2013 congatec AG conga-QSMKITq11... -
Page 5: Additional Information
(PN: 020731) The mobility kit is now connected and ready to boot. Press the power button on the conga-SBM3 for approximately 1 second to Step 5: Connection on USB touch controller (PN: 10000103) boot the system. - Page 6 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: congatec conga-Qseven/SBM3 - Mobility Starter Kit...
