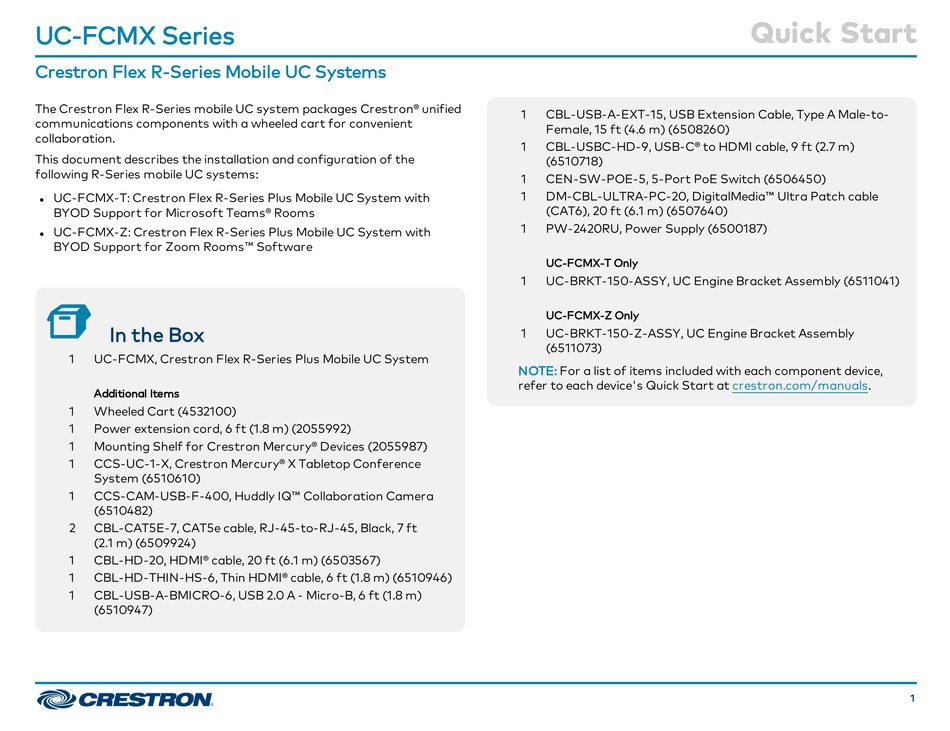

UC-FCMX Series
Crestron Flex R-Series Mobile UC Systems
The Crestron Flex R-Series mobile UC system packages Crestron® unified
communications components with a wheeled cart for convenient
collaboration.
This document describes the installation and configuration of the
following R-Series mobile UC systems:
UC-FCMX-T: Crestron Flex R-Series Plus Mobile UC System with
l
BYOD Support for Microsoft Teams® Rooms
UC-FCMX-Z: Crestron Flex R-Series Plus Mobile UC System with
l
BYOD Support for Zoom Rooms™ Software
In the Box
1
UC-FCMX, Crestron Flex R-Series Plus Mobile UC System
Additional Items
1
Wheeled Cart (4532100)
1
Power extension cord, 6 ft (1.8 m) (2055992)
1
Mounting Shelf for Crestron Mercury® Devices (2055987)
1
CCS-UC-1-X, Crestron Mercury® X Tabletop Conference
System (6510610)
1
CCS-CAM-USB-F-400, Huddly IQ™ Collaboration Camera
(6510482)
2
CBL-CAT5E-7, CAT5e cable, RJ-45-to-RJ-45, Black, 7 ft
(2.1 m) (6509924)
1
CBL-HD-20, HDMI® cable, 20 ft (6.1 m) (6503567)
1
CBL-HD-THIN-HS-6, Thin HDMI® cable, 6 ft (1.8 m) (6510946)
1
CBL-USB-A-BMICRO-6, USB 2.0 A - Micro-B, 6 ft (1.8 m)
(6510947)
1
CBL-USB-A-EXT-15, USB Extension Cable, Type A Male-to-
Female, 15 ft (4.6 m) (6508260)
1
CBL-USBC-HD-9, USB-C® to HDMI cable, 9 ft (2.7 m)
(6510718)
1
CEN-SW-POE-5, 5-Port PoE Switch (6506450)
1
DM-CBL-ULTRA-PC-20, DigitalMedia™ Ultra Patch cable
(CAT6), 20 ft (6.1 m) (6507640)
1
PW-2420RU, Power Supply (6500187)
UC-FCMX-T Only
1
UC-BRKT-150-ASSY, UC Engine Bracket Assembly (6511041)
UC-FCMX-Z Only
1
UC-BRKT-150-Z-ASSY, UC Engine Bracket Assembly
(6511073)
NOTE:
For a list of items included with each component device,
refer to each device's Quick Start at crestron.com/manuals.
Quick Start
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC-FCMX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crestron UC-FCMX Series

Summary of Contents for Crestron UC-FCMX Series

  • Page 1 Quick Start UC-FCMX Series Crestron Flex R-Series Mobile UC Systems The Crestron Flex R-Series mobile UC system packages Crestron® unified CBL-USB-A-EXT-15, USB Extension Cable, Type A Male-to- communications components with a wheeled cart for convenient Female, 15 ft (4.6 m) (6508260) collaboration.
  • Page 2 In R-Series mobile UC systems, some component mounting is required. A based on the location of the display's mounting holes. device mounting shelf for the included Crestron Mercury device is premounted to the front of the cart. A UC bracket assembly, PoE switch, power supply, power strip, retractable power cable, and retractable Ethernet cable are premounted to the cart's interior for convenience.

  • Page 3: Make Connections

    Quick Start UC-FCMX Series Crestron Flex R-Series Mobile UC Systems Make Connections To connect the system components: 1. Connect system components to the preinstalled cables. Connect the display power cord to the power strip inside of the bottom rear of the cart.
  • Page 4 Quick Start UC-FCMX Series Crestron Flex R-Series Mobile UC Systems 2. Make LAN and power connections from the bottom rear of the cart as 3. Make device presentation connections as shown in the following shown below using the integrated retractable cables.

  • Page 5: Complete The Installation

    Complete the Installation Mount the Display CAUTION: For safety, Crestron recommends that no fewer than two people mount the display. Mount the display mounting bracket arms with the attached display by sliding the mounting hooks over the display plate. Ensure that the display mounting bracket arms and the display are secure before stepping away from the cart.

  • Page 6: Mount The Camera

    2. Set the camera atop the display and hook the lip to the front edge of the display. 3. Adjust the hinge until the camera sits atop the display. Mount the Crestron Mercury Device To mount the Crestron Mercury device, place the device on the preinstalled device mounting shelf.
  • Page 7 UC Engine. Refer to the Crestron A login with administrative rights for the Crestron Mercury device Flex UC Video Conference Systems Supplemental Guide (Doc. 8360). is required. 3. Log in to the Crestron Mercury device and navigate to DEVICE > Applications.
  • Page 8 Connect a USB keyboard and mouse (not included) to a USB port on the UC Engine to configure system features. Refer to the Crestron Flex UC Use the Crestron Mercury X device to sign in to the Zoom Rooms service Video Conference Systems Supplemental Guide (Doc. 8360).
  • Page 9 Development Tools License Agreement. Crestron product operating system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_agreement. The product warranty can be found at www.crestron.com/warranty.
