To communicate with the LAB/HP/E via network, it is necessary to assign an IP address to the device first. In delivery
status, the device automatically draws an IP from the network. In its practical operation, this behavior is unfavorable,
because after each activation the device has a new IP address. Therefore, to each device an individual, permanent IP
address should be assigned.
The status word can be read with the command
bits can be 1 or 0.
Table: Error messages
D2 D1
0 0
0 1
0 1
1 0
1 0
1 1

DETERMINATING THE IP USING THE DEVICE INSTALLER BY LANTRONIX

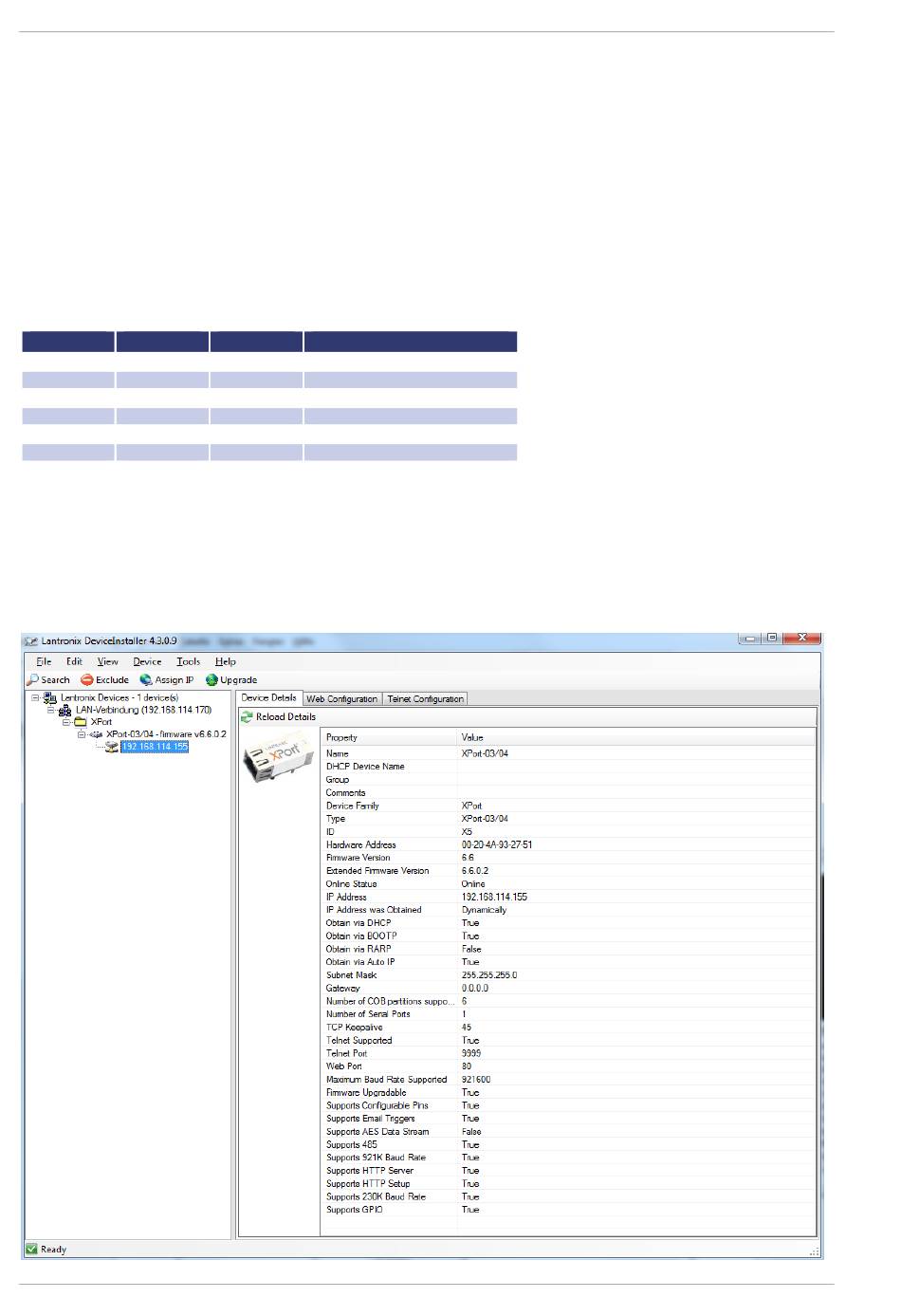

With the program Deviceinstaller, Lantronix offers a program to easily detect a device within the network. After
executing the program and clicking the button Search, all XPORTS within the network are displayed. The current
assigned (dynamical) IP will also be displayed. This IP can be entered in the address line of a browser.
If you want to set a static IP Adress use "Assign IP".
26
<STB>
or
D0 Error
1 Syntax
0 Command
1 Range
0 Unit
1 Hardware
0 Read
<*STB?>
. Only bits from D0 up to D2 are in use. All other
