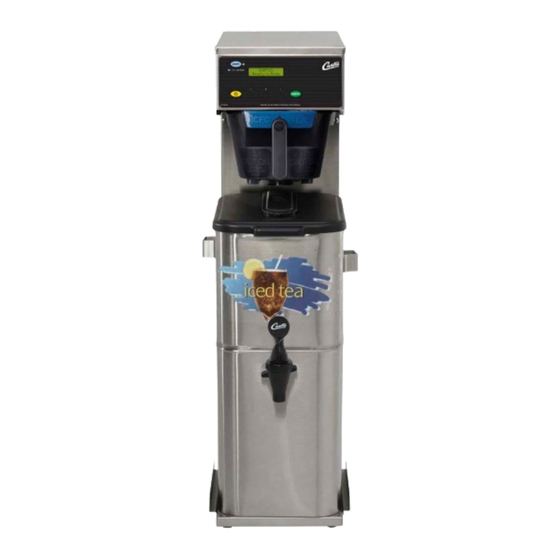

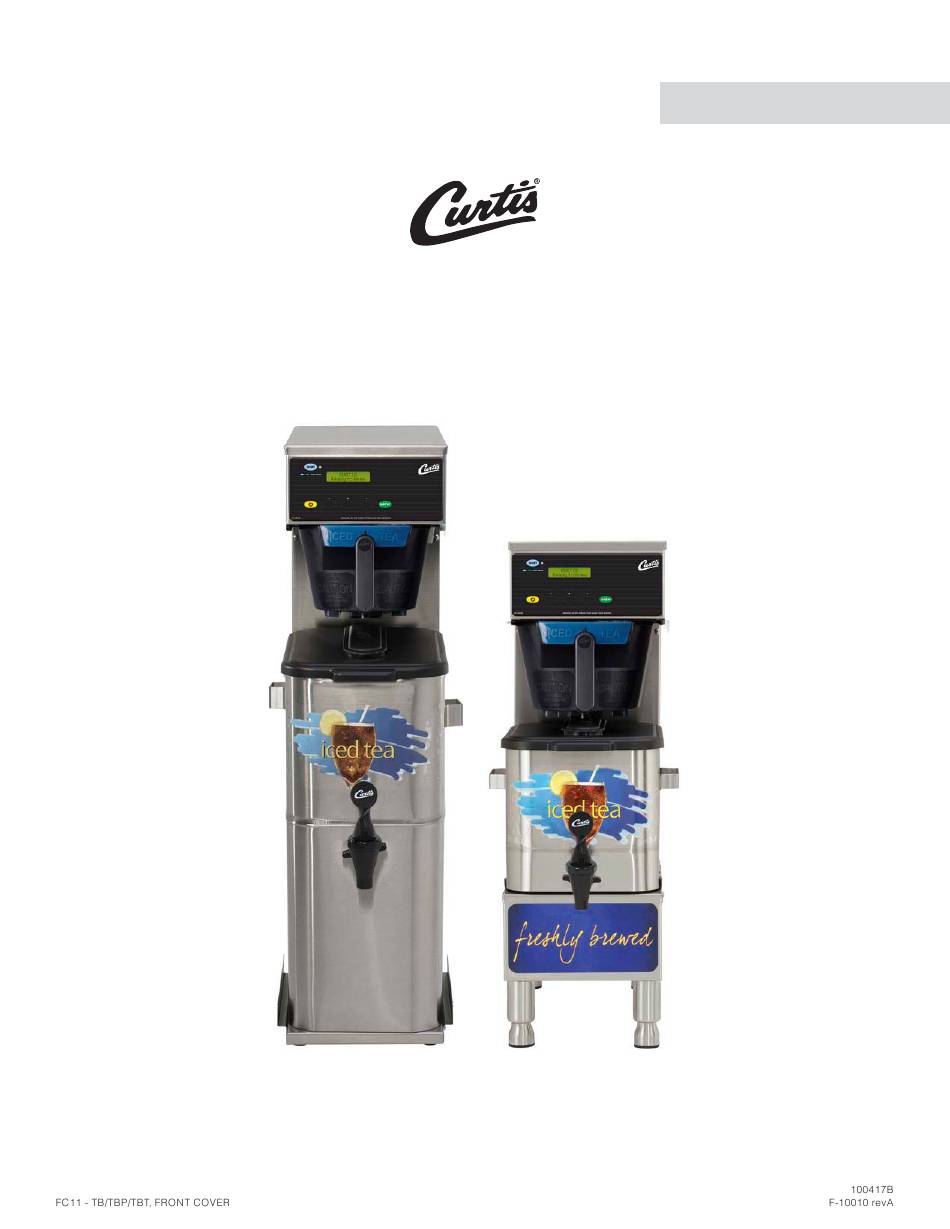

- Page 1 USER GUIDE G3 Digital Iced Tea Brewing System READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine.
-
Page 2: Table Of Contents
CONTENTS CL11 ....................FS11 ............................... IS2 ..........................II2 ..................II8 ..............................OI8 ..........................CI1 ........................CI6 ................................................................................................................................IP11 ............... IP21 ........................................ES12 ......................................................................................................................................... Contact Information Wilbur Curtis Co., Inc. . PT... -
Page 3: Fs11
KEY FEATURES/SPECIFICATIONS/SYSTEM REQUIREMENTS FS11 Key Features • • • • • • • • HEATING MODEL # DESCRIPTION PHASE VOLTS AMPS WIRE WATTS HERTZ CAPACITY CONFIG Single, Iced Tea Brewing System 1 PH 120 V 13.8 A 1 X 1600 W 2W + G 1650 W 50/60 Hz... -
Page 4: Is2
INSTRUCTIONS could result in personal injury or void the warranty. • This appliance is designed for commercial use. Any service other than cleaning and preventive maintenance should be performed by an authorized Wilbur Curtis service technician. • serviceable parts inside. - Page 5 IMPORTANT SAFEGUARDS CE Requirements • This appliance must be installed in locations where it can be overseen by trained personnel. • • This appliance is not suitable for outdoor use. • • • This appliance must not be cleaned by water jet. •...
-
Page 6: Ii2
INSTALLATION INSTRUCTIONS WARNING: WARNING: Improper electrical connection may result in an electric shock hazard or damage the unit. This appliance must be properly grounded. NOTICE: DO NOT connect this appliance to a hot water supply. The water inlet valve is not rated for hot water. -
Page 7: Ii8
INSTALLATION INSTRUCTIONS Installation Leveling WARNING: Use the leveling legs to level the brewer only. Do not use them to adjust brewer height. Do not extend them higher than necessary. Position the brewer on the countertop. Level it left to right and front to back by turning the bottom of the legs. - Page 8 INSTALLATION INSTRUCTIONS Connect the Brewer Wiring (cont.) 11 If the power cord will be connected directly to the junction box, connect the power cable wires to the terminals in the junction box. See the ELECTRICAL SCHEMATIC for the power supply requirements. WARNING: Turn off power to the junction box at the circuit breaker panel before connecting the power cable to the brewer.
- Page 9 INSTALLATION INSTRUCTIONS Power Up the Brewer (cont.) 16 Make sure that the circuit breaker supplying power to the unit is on. 17 Turn the toggle switch on the back of the brewer to the 18 When the water in the tank rises to the correct level, the heating elements will turn on automatically.
-
Page 10: Oi8
OPERATING INSTRUCTIONS Brewing Instructions WARNING - TO AVOID SCALDING, AVOID SPLASHING. Keep body parts clear of the brewer during brewing. Do not remove the brew basket while “Brewing” appears on the display. WARNING - DO NOT refrigerate unused tea overnight for later consumption. The G3 Tea Brewer is factory preset for optimal performance. -
Page 11: Ci1
CLEANING INSTRUCTIONS WARNING: HOT SURFACES - To avoid injury, allow the brewer and dispenser(s) to cool before cleaning. NOTICE - Do not use cleaning liquids, compounds or powders containing chlorine (bleach) or corrosives. USE OF THESE PRODUCTS WILL VOID THE WARRANTY. Cleaning The Brewer - Daily WARNING: DO NOT immerse the brewer in water or any other liquid. -
Page 12: Ci6
CLEANING INSTRUCTIONS Cleaning the Tea Dispenser (Daily) The following cleaning process requires a mild solution of dish-washing detergent and warm water, and One-Pro Handle Bonnet Container Remove the dispenser from the brewer and remove the Seat cup Wash Faucet the detergent solution and a soft bristled brush to wash Rinse Sanitize Disassemble the faucet - Unscrew the faucet assembly... - Page 13 PROGRAMMING GUIDE Curtis To enter programming mode: With unit OFF, press and hold bottom right BREW button (4). Then press and release Entering ON/OFF button. Continue to Programming mode hold down BREW button until Enter Code Enter Code appears. - - - - Enter 4 digit code.
- Page 14 PROGRAMMING GUIDE Programming Options To exit, press until Exit appears on the display, then press Tea Recipes - sets the tea recipe. Press to access. Press to choose from standard-gray, standard- purple, Standard-Amber, Tropical-Gray, Tropical-Purple, 76/308-Gray or 76/308-Purple. Press to save and exit programming mode.
- Page 15 PROGRAMMING GUIDE Tea Half Batch - turns half batch On and Off. Once accessed ( ), press to toggle between On and Off. Press to save. Press to display the subsequent menu features. Tea Drip-Out - sets the Tea Drip-Out time. Drip-out allows additional time for tea to drain from the brew basket before “Brewing”...
- Page 16 PROGRAMMING GUIDE Coffee Pulse Brew (combo units only) - selects the Coffee Pulse Brew pattern (Pre-Infusion must be Off to press the BREW button for which Pulse Brew needs to be changed. Press to select the desired setting (see guidelines below for information on various settings). Press to save.
- Page 17 PROGRAMMING GUIDE Cold Brew Lock - adjusts the temperature at which the brewer will brew when a BREW button is pressed (Ready to brew appears on the display). This feature also adjusts the temperature at which the heating below the temperature setting. Once accessed ( ), press to select the desired setting.
- Page 18 ROUGH-IN DRAWINGS RD12 TB - Tea Brewer 16.61 in [42.2 cm] 10.11 in [25.7 cm] 34.20 in [86.9 cm] 22.67 in [57.6 cm] 22.29 in [56.6 cm] 3.41 in 11.71 in [34.1 cm] [29.7 cm] 1.20 in 22.82 in [3.0 cm] [58.0 cm]...
- Page 19 ROUGH-IN DRAWINGS RD13 TBP - Tea Brewer 9.14 in [23.2 cm] 9.13 in [23.2 cm] 10.97 in* 25.70 in [27.9 cm] [65.3 cm] 16.63 in [42.2 cm] 29.38 in 9.94 in [74.6 cm] [25.3 cm] 9.59 in 13.46 in [24.3 cm] [34.2 cm] 5.00 in [12.7 cm]...
- Page 20 ROUGH-IN DRAWINGS RD14 TBT - Tea Brewer 16.61 in [42.2 cm] 10.11 in [25.7 cm] 38.45 in 27.02 in [97.7 cm] [68.6 cm] 26.52 in [67.4 cm] 16.82 in [42.7 cm] 13.41 in [34.1 cm] 1.20 in 22.82 in [3.0 cm] [58.0 cm]...
- Page 21 ILLUSTRATED PARTS/RECOMMENDED PARTS IP11 TB, TBP, TBT Series - Main Chassis - Exploded View 10A* 10B*...
-
Page 22: Ip11
LABEL, FLAVOR OPTIONS & BREW BUTTONS CONTROL MODULE, UCM 120V TEA/ COMBO/SWEET WC-786-104 WC-3528 LEG, 4” ADJUSTABLE 3/8-16 THRD ITALIAN STYLE TEA BREWER LABEL, UCM OVERLAY TB/TBP 1-BATCH CURTIS CONTROL MODULE, UCM 220V TEA/ COMBO/SWEET WC-390168 LOGO WC-729-104 TEA BREWER... -
Page 23: Ip21
ILLUSTRATED PARTS/RECOMMENDED PARTS IP21 WC-6277/WC-75236[-20] - Tank Assembly WC-6277/WC-75236[-20] - Tank Assembly - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION TANK, COMPLETE 1600W 120V D500GT/TCTS/ WC-5528K* KIT, WATER LEVEL PROBE, SILICONE WC-6277 PTT/CBS KIT, PROBE, ASSY WATER LEVEL W/HEX FITTING, WC-5502-01* TANK, ASSY D500GT/H/TCTS/PTT3/ CBS W/WC- O-RING &... - Page 24 ILLUSTRATED PARTS/RECOMMENDED PARTS IP23 WC-6290-101 - Tank Assembly WC-6290-101 - Tank Assembly - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION TANK, ASSY D500GT/H/TCTS/PTT3/ CBS W/WC- 934- WC-1438-101* SENSOR, TEMPERATURE TANK WC-75236-35 101 ELEMENT GUARD, SHOCK/HEATING ELEMENT FOR SINGLE WC-4394* PTT3 /CBS/W/WC- 934-01ELEMENT TANK, COM- HEATING ELEMENT...
-
Page 25: Es12
ELECTRICAL SCHEMATICS ES12 TB - 120 Volts TCT-10, ELECTRICAL SCHEMATIC 091516NC... - Page 26 ELECTRICAL SCHEMATICS ES13 TB, CB, TBP - 220 to 240 Volts Export ELECTRICAL RATING TABLE # of Tank Element Voltage Amps Wa s Hertz # of Tank Model Conductor Phase Ra ng Elements Wires TBP3x TCTS30x TB3x 11.8 2600 50/60 2500W/220V TBT3x CBP3x...
- Page 27 TROUBLESHOOTING GUIDE WARNING: Electric Shock Hazard - Scald and Burn Hazard - IMPORTANT: always Valve Test Procedure ELECTRICAL SCHEMATIC Troubleshooting Guidelines ERROR CODES • • • Use this troubleshooting guide along with the appropriate ELECTRICAL SCHEMATIC. • Valve Test Procedure in either direction Water Not Hot Enough replace the temperature sensor...
- Page 28 TROUBLESHOOTING GUIDE During Brewing ELECTRICAL SCHEMATIC No Power - Display Not Lit Water Tank Does Not Fill Brewer Does Not Start When Brew Button is Pressed Brewing Brewing Sensor Error Message...
- Page 29 TROUBLESHOOTING GUIDE Water Tank Does Not Fill IMPORTANT: Coffee/Tea Too Strong Dispenser Not Filled To Normal Level During Brewing Dispenser Not Filled To Normal Level During Brewing SPECIFICATIONS sure that the spray head is correctly aligned and that the tubing is routed properly to allow for maximum water ELECTRICAL SCHEMATIC...
- Page 30 TROUBLESHOOTING GUIDE All Of The Time ELECTRICAL SCHEMATIC No Water/Tea Flows From Brewer During Brewing Water Tank Does Not Fill ELECTRICAL SCHEMATIC Low Water Flow Warning Water Level Error Message Water Level Error Message ERROR CODES SPECIFICATIONS...
- Page 31 TROUBLESHOOTING GUIDE Water Does Not Heat At All Check to see if the water level in the tank is in contact with the water level probe. If not, see Tank Does Not Fill. • The water will not heat unless it is in contact with the probe. If the water heats, but is not hot enough, see Water Not Hot Enough.
- Page 32 ERROR CODES System Fault Messages An error message will appear on the screen in the event of a malfunction under the following conditions: ERROR MESSAGE WARNING DESCRIPTION CAUSE Water Level Error G3 BREWER, ERROR CODES 042017A...
- Page 33 Return Merchandise Authorization (RMA): All returned equipment must be properly re-packaged in the original carton and received by Curtis within 45 days following the issuance of a RMA. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA).
