Summary of Contents for Curtis G3 GEMX IntelliFresh

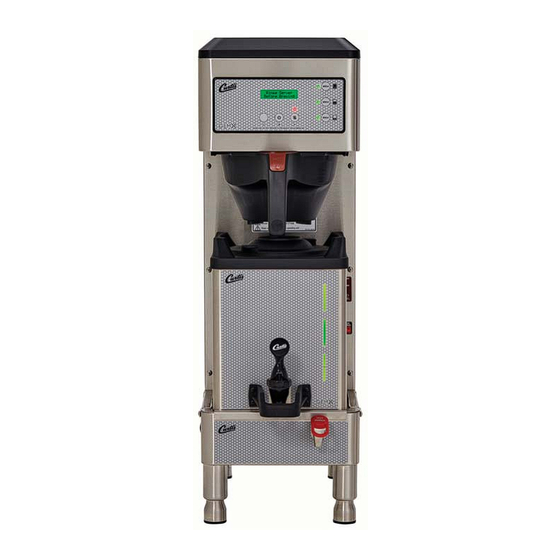

- Page 1 USER GUIDE ™ ® G3 GEMX IntelliFresh Coffee Brewing ® System with FreshTrac Satellite READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine.
-
Page 2: Table Of Contents
......................ES6 ........................ES108 ........................ES133 ......................................................................................................EC4 ..............................Contact Information Wilbur Curtis Co., Inc. 6913 Acco Street | Montebello, CA 90640 US Phone: 323-837-2300 | Toll Free: 800-421-6150 Email: csrassistance@wilburcurtis.com | Web: www.wilburcurtis.com . - 4:00 . PT Email: techsupport@wilburcurtis.com... -
Page 3: Fs68
KEY FEATURES/SPECIFICATIONS/SYSTEM REQUIREMENTS FS68 Key Features • • • • • • • 12.0 gal./hr. ® Single, 1.5 Gallon with IntelliFresh 1 PH 230 V 18.5 A 2 X 2000 W 2W + G 4050 W 50/60 Hz [45.4 L/hr.] Single, 1.5 Gallon w/IntelliFresh, Dual 4.5/10.0 gal./hr. -
Page 4: Is2
• This appliance is designed for commercial use. Any service other than cleaning and preventive maintenance should be performed by an authorized Wilbur Curtis service technician. • To reduce the risk of re or electric shock, DO NOT open the service panels. There are no user serviceable parts inside. - Page 5 IMPORTANT SAFEGUARDS CE Requirements • This appliance must be installed in locations where it can be overseen by trained personnel. • For proper operation, this appliance must be installed where the temperature is between 5°C to 35°C. • This appliance is not suitable for outdoor use. •...
-
Page 6: Ii2
INSTALLATION INSTRUCTIONS WARNING: WARNING: Improper electrical connection may result in an electric shock hazard or damage the unit. This appliance must be properly grounded. NOTICE: DO NOT connect this appliance to a hot water supply. The water inlet valve is not rated for hot water. -
Page 7: Ii1
INSTALLATION INSTRUCTIONS Installation Leveling WARNING: Use the leveling legs to level the brewer only. Do not use them to adjust brewer height. Do not extend them higher than necessary. Position the brewer on the counter top. Level it left to right and front to back by turning the bottom of the legs. - Page 8 INSTALLATION INSTRUCTIONS Connect the Brewer Wiring (cont.) Brewers With A Cord Set Attached - 12 Connect the power cord to the appropriate type of electrical outlet. WARNING: Connect the power cord to the appropriate type and size electrical outlet. If the electrical outlet is not compatible with the power cord, have it upgraded by a licensed electrician.
- Page 9 INSTALLATION INSTRUCTIONS 19 If the UCM is not already lit, push the ON/OFF button to the correct volume, the heating elements will turn on automatically. Depending on the incoming water water tank typically requires 20 to 30 minutes to the water has heated, “Ready to Brew” should be on the display.
-
Page 10: Oi50
® ™ NOTICE - satellites on GEMX series IntelliFresh brewers. The G3 GEMX Intellifresh brewer is factory preset for optimal performance. The brewer should be ON. Place an empty GEMX IntelliFresh satellite under the the brew basket. switch. “Ready to brew”... -
Page 11: Features
After the brew cycle is complete, if the GEMX dispenser is transferred from the brewer to a Curtis IntelliFresh warmer stand, the following dispenser settings will remain the same: Quality Timer, Warmer Default (heat setting) and dispenser (Intellifresh) Color Scheme. -
Page 12: Ci1
CLEANING INSTRUCTIONS WARNING: HOT SURFACES - To avoid injury, allow the brewer and dispenser(s) to cool before cleaning. NOTICE - Do not use cleaning liquids, compounds or powders containing chlorine (bleach) or corrosives. USE OF THESE PRODUCTS WILL VOID THE WARRANTY. Cleaning The Brewer - Daily WARNING: DO NOT immerse the brewer in water or any other liquid. -
Page 13: Ci29
Mild solution of dish-washing detergent and warm water ™ • TABZ Z95 Coffee Equipment Cleaner Tablets (Curtis PN WC-79000) • One-Pro Beverage Equipment Cleaner (Curtis PN WC-79001) WARNING: DO NOT immerse the dispenser in water or any other liquid. Do not place the dispenser in a dishwasher. - Page 14 PROGRAMMING GUIDE Wilbur Curtis To enter programming mode: With unit OFF, press and hold Wilbur Curtis bottom right BREW button (4). Ready to Brew* Then press and release ON/OFF button (2). Continue to hold down BREW button until Enter Code appears.
- Page 15 PROGRAMMING GUIDE Programming Options See the previous page for instructions on accessing each individual menu. Some menus save and exit automatically when a parameter is updated. Other menus exit to the previous menu when a parameter is saved. To exit, press until EXIT appears on the display, then press Global Recipes Menu Select from the following coffee recipes: Gourmet STD (standard), Light Roast, Dark Roast, High Yield, Filter...
- Page 16 PROGRAMMING GUIDE Non-Brew Programming Menu Non-Brew Prog Banner Name Warmers Default Brew Count Total QT Alarm On/Off <-- Select --> <-- Select --> <-- Select --> <-- Select --> <-- Select --> Press Select Select Select Select Temperature Cold Brew Lock Warmers Auto-Off Display Brew Time Satellite Color...
- Page 17 Banner Name - changes the company name that appears on the display. The factory default is Curtis. No name appears when all blanks are entered. Once accessed, press to choose the letter to change.
- Page 18 PROGRAMMING GUIDE Non-Brew Programming Menu (cont.) Display Brew Time - turns the display of the brew time during brewing On or Off. The factory default setting is On. Once accessed, press to choose the desired setting, then press to exit. Display Messages - turns display of the message “Rinse Server Before Brewing”...
- Page 19 PROGRAMMING GUIDE Brew Button Programming Menu (cont.) Brew by Time - adjusts the amount of coffee brewed by time rather than by volume. The factory default to change the number value. Press repeatedly to change the number value. Press repeatedly to exit.
- Page 20 PROGRAMMING GUIDE Model Select Menu - changes the model number and number of batches (to match the label on the universal control module, the factory default is Gemini-Twin, One batch). Once accessed, press until the model number matching the model number label on the brewer appears, then press Press until the number of to exit.
- Page 21 ROUGH-IN DRAWINGS RD70 GEMXSIFT - Single Coffee Brewer With high volume brew basket 0.23 in [0.58 cm] 11.31 in [28.7 cm] 10.50 in [26.7 cm] With standard brew basket 0.92 in [2.3 cm] 31.87 in [81.0 cm] 12.01 in [30.5 cm] 7.92 in [20.1 cm] 6.79 in...
- Page 22 ROUGH-IN DRAWINGS RD70 GEMXTIFT - Twin Coffee Brewer With high volume brew basket 0.26 in [0.66 cm] 11.35 in [28.8 cm] 18.17 in [46.1 cm] With standard brew basket 0.91 in [2.3 cm] 31.87 in [81.0 cm] 12.01 in 26.43 in [30.5 cm] [67.1 cm] 7.92 in...
- Page 23 ROUGH-IN DRAWINGS RD72 GEM3XIFT - Dispenser 9.04 in [23.0 cm] 9.17 in [23.3 cm] 4.68 in [11.9 cm] 11.09 in 11.42 in [28.2 cm] [29.0 cm] 0.24 in [0.6 cm] GEM3XIFT, ROUGH-IN DRAWING 052920B...
- Page 24 ILLUSTRATED PARTS/RECOMMENDED PARTS IP119 GEMXSIFT - Main Chassis - Exploded View See satellite user guide for satellite replacement parts. *Water tanks assemblies: Single voltage units, see section IP31 Dual voltage units, see section IP32 GEMXSIFT/GEMXTIFT - GENERIC, ILLUSTRATED PARTS/RECOMMENDED PARTS 090519D...
-
Page 25: Ip119
WC-58395 COVER, FRONT WC-4439 SCREW, 6-32x¼ PHIL PAN HD SS LABEL, BOTTOM DECK GEMXSIFT/ WC-390353 G4GEMXISFT CURTIS WC-4412 SCREW, 10-32x3/16” PH PN HD MS SS FAUCET, PS/HPS SERIES HOT WTR 1/2-20 UNF WC-1806 SEAT CUP, SILICONE USE ON WC-1809 FAUCET... - Page 26 ILLUSTRATED PARTS LIST IP119 GEMXTIFT - Main Chassis - Exploded View See satellite user guide for satellite replacement parts. Water tank assembly, see section IP26 GEMXSIFT/GEMXTIFT - GENERIC, ILLUSTRATED PARTS/RECOMMENDED PARTS 090519D...
- Page 27 WC-43133 GEMIF’s GEMSS/GEMTS WC-5350 TUBE, 1/2 ID x 1/8W SILICONE GEN USE LABEL, UCM & OUTER OVERLAY 3-BATCH WC-390346 GEMXTIFT CURTIS WC-4213-P NUT, 5/8 LOCK PLATED LABEL, UCM OVERLAY 2-BATCH GEMXTIFT HARNESS ASSY, COMPLETE TP2T10/ GEMTS WC-390347 WC-13335 a CURTIS...
-
Page 28: Ip26
ILLUSTRATED PARTS/RECOMMENDED PARTS IP26 WC-62033 - Tank Assembly WC-62033 - Tank Assembly - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-54287 TANK, ASSY TPS1T/GEMTS WC-1438-101 SENSOR, TEMPERATURE TANK WC-62033 TANK, COMPLETE GEMTS W/ULTEM FITTINGS WC-4382 GUARD, SHOCK HTNG ELMNT DOUBLE WC-37008 KIT, TANK LID ROUND (INCLUDES GASKET) -
Page 29: Ip31
ILLUSTRATED PARTS LIST IP31 WC-62035 - Tank Assembly WC-62035 - Tank Assembly - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-62035 TANK, COMPLETE GEMSS W/ULTEM FITTINGS THERMOSTAT, HI LIMIT HEATER CONTROL DPST WC-522 277V 40A WC-5853-102 COVER, TOP HEATING TANK GEN USE WC-43055... -
Page 30: Ip32
ILLUSTRATED PARTS LIST IP32 WC-62034 - Tank Assembly WC-62034 - Tank Assembly - Parts List ITEM # PART # DESCRIPTION TANK, COMPLETE GEMSS DV W/ ULTEM ITEM # PART # DESCRIPTION WC-62034 FITINGS THERMOSTAT, HI LIMIT HEATER CONTROL WC-522 WC-5853-102 COVER, TOP HEATING TANK GEN USE DPST 277V 40A WC-43055... -
Page 31: Es3
ELECTRICAL SCHEMATICS GEMSIF63 Series GEMSIF63A1000, ELECTRICAL SCHEMATIC 072220A... -
Page 32: Es4
ELECTRICAL SCHEMATICS GEMSIF30A1000, GEMXSIFT30A1000 UCM Pin Assignments 20 Pin Connector GRINDER INTERLOCK COMMON-SOLID STATE RELAY & GRINDER SOLID STATE RELAY +5 Vdc BREW CONE LOCK NOT USED INLET VALVE BYPASS VALVE NOT USED IF WARMER NOT USED NOT USED NOT USED TANK TEMPERATURE SENSOR TANK TEMPERATURE SENSOR UCM GROUND... -
Page 33: Es5
ELECTRICAL SCHEMATICS GEMTIF10A1000, GEMTIF10B1000... -
Page 34: Es6
ELECTRICAL SCHEMATICS GEMTIF30A1000, GEMXTIFT30A1000 UCM Pin Assignments 20 Pin Connector GRINDER INTERLOCK COMMON-SOLID STATE RELAY & GRINDER SOLID STATE RELAY +5 Vdc BREW CONE LOCK RIGHT BREW CONE LOCK LEFT INLET VALVE BYPASS VALVE RIGHT IF WARMER LEFT IF WARMER RIGHT BYPASS VALVE LEFT NOT USED NOT USED... - Page 35 ELECTRICAL SCHEMATICS ES108 GEM3XIFT GEM3XIFT, ELECTRICAL SCHEMATIC 111220B...
- Page 36 ELECTRICAL SCHEMATICS ES133 GEM3XIFT30 GEM3XIFT30, ELECTRICAL SCHEMATIC 111220B...
- Page 37 TROUBLESHOOTING GUIDE WARNING: Electric Shock Hazard - Scald and Burn Hazard - IMPORTANT: always Valve Test Procedure ELECTRICAL SCHEMATIC Troubleshooting Guidelines ERROR CODES • • • Use this troubleshooting guide along with the appropriate ELECTRICAL SCHEMATIC. • Valve Test Procedure in either direction Water Not Hot Enough replace the temperature sensor...
- Page 38 TROUBLESHOOTING GUIDE During Brewing ELECTRICAL SCHEMATIC No Power - Display Not Lit Water Tank Does Not Fill Brewer Does Not Start When Brew Button is Pressed Brewing Brewing Sensor Error Message...
- Page 39 TROUBLESHOOTING GUIDE Water Tank Does Not Fill IMPORTANT: Coffee/Tea Too Strong Dispenser Not Filled To Normal Level During Brewing Dispenser Not Filled To Normal Level During Brewing SPECIFICATIONS sure that the spray head is correctly aligned and that the tubing is routed properly to allow for maximum water ELECTRICAL SCHEMATIC...
- Page 40 TROUBLESHOOTING GUIDE All Of The Time ELECTRICAL SCHEMATIC No Water/Tea Flows From Brewer During Brewing Water Tank Does Not Fill ELECTRICAL SCHEMATIC Low Water Flow Warning Water Level Error Message Water Level Error Message ERROR CODES SPECIFICATIONS...
- Page 41 TROUBLESHOOTING GUIDE Water Does Not Heat At All Check to see if the water level in the tank is in contact with the water level probe. If not, see Tank Does Not Fill. • The water will not heat unless it is in contact with the probe. If the water heats, but is not hot enough, see Water Not Hot Enough.
- Page 42 TROUBLESHOOTING GUIDE TG35 Dispenser Does Not Heat NOTE reheat cold coffee. First check to see if one of the LED bars on the sensor circuit on the controller (replace the controller). ® Check to see if the Intellifresh LED on the front of the dispenser comes on at the beginning of the brew cycle.
-
Page 43: Ec4
ERROR CODES System Fault Messages An error message will appear on the screen in the event of a malfunction under the following conditions: ERROR MESSAGE WARNING DESCRIPTION CAUSE Water Level Error G3 BREWER, ERROR CODES 042017A... - Page 44 Return Merchandise Authorization (RMA): All returned equipment must be properly re-packaged in the original carton and received by Curtis within 45 days following the issuance of a RMA. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA).
