Fast Ethernet Media Converter
Thank you for purchasing the Intellinet Fast Ethernet Media
Converter. Media converters connect two Ethernet networks over
a longer distance using fiber optic cable.
MODELS
• 506502:
Fast Ethernet Media Converter
10/100Base-TX to 100Base-FX (SC) Multimode, 2 km (1.24 mi.)
• 506519:
Fast Ethernet Media Converter
10/100Base-TX to 100Base-FX (ST) Multimode, 2 km (1.24 mi.)
• 507332:
Fast Ethernet Single Mode Media Converter
10/100Base-TX to 100Base-FX (SC) Single Mode, 20 km (12.4 mi.)
Media Converter 1
ETHERNET 1
Twisted Pair
CONNECTIONS
Twisted Pair – RJ45
Connect the UTP port of the media converter to an RJ45 port on
the network; e.g., to an Ethernet switch. Cat5e or better cabling is
recommended.
Fiber Optic

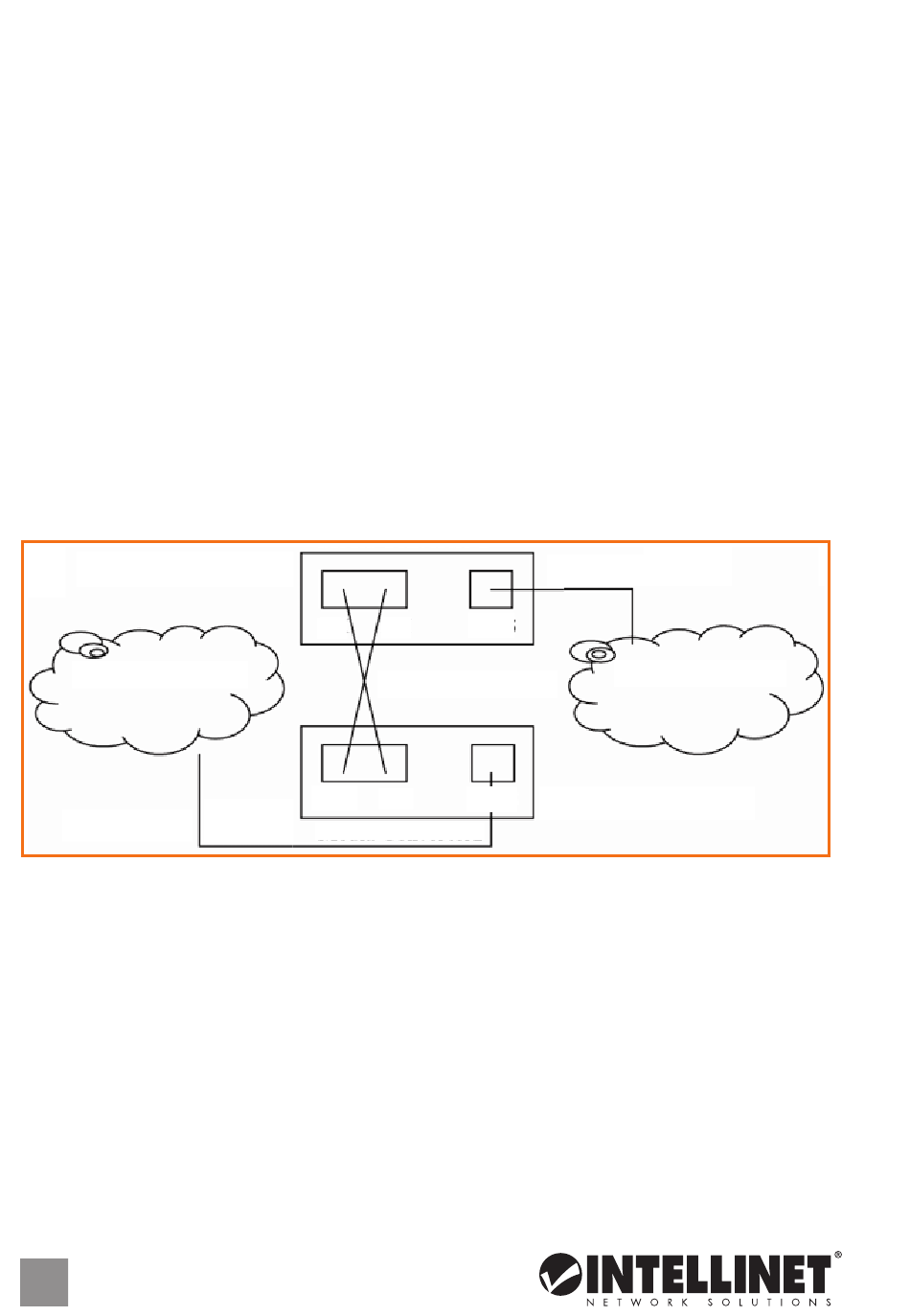

As shown above, two fiber optic cables need to be connected be-
tween two ideally identical media converters. Make a connection
2
ENGLISH
RJ45
TX RX
OPTICAL FIBER
TX RX
RJ45
Twisted Pair
ETHERNET 2
Media Converter 2
