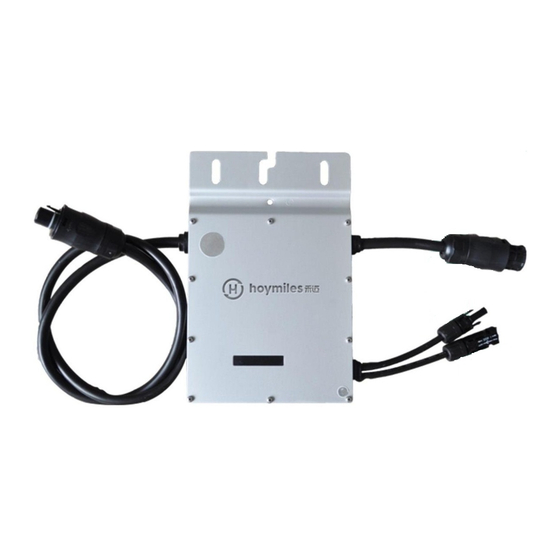

Hoymiles MI-300T User Manual

Microinverter
Hide thumbs Also See for MI-300T:
Table of Contents

Advertisement

Quick Links

Download this manual
Version 1.0 (June 2020)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MI-300T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hoymiles MI-300T

Summary of Contents for Hoymiles MI-300T

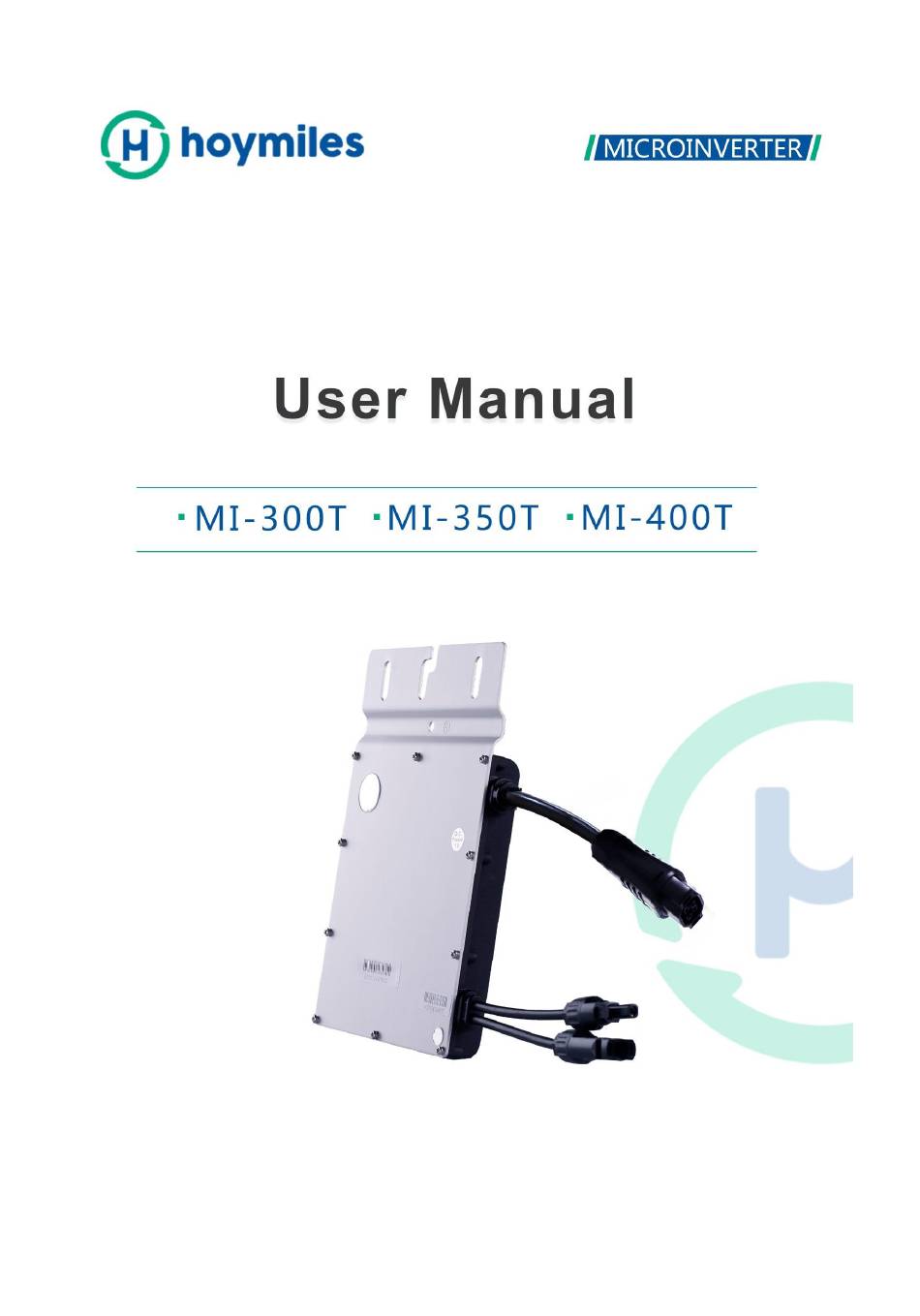

  • Page 1 Version 1.0 (June 2020)
  • Page 2 About the Manual This manual contains important instructions for the MI-300T/MI-350T/MI-400T Microinverter and must be read in its entirety before installing or commissioning the equipment. For safety, only qualified technician, who has received training or has demonstrated skills can install and maintain this Microinverter under the guide of this document.

  • Page 3: Table Of Contents

    6.3 On-site Inspection (For qualified installer only) ..................19 6.4 Routine Maintenance ..........................19 6.5 Replace Microinverter ..........................20 7. Decommissions ..............................21 7.1 Decommissions ............................21 7.2 Storage and Transportation ........................21 7.3 Disposal ............................... 22 © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.
  • Page 4 WIRING DIAGRAM – 230VAC SINGLE PHASE: ..................26 WIRING DIAGRAM – 230VAC / 400VAC THREE PHASE: ............... 27 WIRING DIAGRAM –120VAC / 240VAC SPLIT PHASE: ................28 WIRING DIAGRAM – 120VAC / 208VAC THREE PHASE: ............... 29 © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 5: Important Notes

    2. About Safety 2.1 Important Safety Instructions The MI-300T/MI-350T/MI-400T Microinverter is designed and tested according to international safety requirements. However, certain safety precautions must be taken when installing and operating this © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 6: Explanation Of Symbols

    ➢ Do not use the equipment if any operating anomalies are found. Avoid temporary repairs. ➢ All repairs should be carried out using only qualified spare parts, which must be installed in accordance with their intended use and by a licensed contractor or authorized Hoymiles service representative.

  • Page 7: Radio Interference Statement

    4) Contact your dealer or an experienced radio/TV technician for help. 3. About Product 3.1 About Single Unit “The world’s First Daisy-Chain Single Unit Microinverter” with extremely wide DC input operating voltage range (16-60V) and low start-up voltage (22V only). © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 8: Highlights

    MI-300T/MI-350T/MI-400T Hoymiles Single unit Microinverter MI-300T/MI-350T/MI-400T is the perfect selection for PV system with uneven number of panels with world’s NO.1 CEC weighted efficiency – 96.50% (peak efficiency 96.70%) in 2015. 3.2 Highlights Maximum output power up to 300W/350W/400W; Adapted to 60 & 72 cells PV panels.

  • Page 9: About Function

    *Note: All accessories above are not included in the package, and need to be purchased separately. Please contact our sales representative for the price. (M8 screws need to be prepared by installer-self.) © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 10: Installation Precaution

    5.3 Space Distance Required Please install the Microinverter at least 50cm above the ground/roof for better communication with Hoymiles DTU. Please contact with Hoymiles technical engineer if there is any special circumstance. 5.4 Preparation Installation of the equipment is carried out based on the system design and the place in which the equipment is installed.

  • Page 11: Pre-Installation

    A) Plan the cable length to make the bus cable aligned with each PV module. B) Install the AC bus end cap: ✓ Use the bus connector unlock tool to unlock the port upper cover; © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 12: Installation Steps

    C) Hang the microinverter on the screw (shown as picture below), and tighten the screw.The silver cover side of the Microinverter should be facing the panel. *Note: Please install the microinverter at least 50cm above the ground/roof for better communication with Hoymiles DTU.
  • Page 13 B) Connect the other side of the AC end cable to the distribution box, and wire it to the local grid network. Step 4. Create an Installation Map A) Peel the removable serial number lable from each microinverter (The position of the label is © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.
  • Page 14 Affix the serial number label to the respective location on the installation map. Step 5. Connect PV Modules Mount the PV modules above the microinverter. B) Connect the PV modules’ DC cables to the DC input side of the microinverter. © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 15: Troubleshooting

    Hoymiles technical support. 1.Check if the grid configuration parameter is correct and upgrade again. Grid configuration 2. If the fault still exists, contact your dealer or Hoymiles technical parameter error support. 1. If the alarm occurs accidentally and the microinverter can still work normally, no special treatment is required.
  • Page 16 2. If the alarm occurs frequently, check whether the grid voltage is within the acceptable range. If no, contact the local power operator or change the grid overvoltage protection limit via Hoymiles monitoring system with the consent of the local power operator.
  • Page 17 2. If the alarm occurs frequently, check whether the grid frequency change rate change rate is within the acceptable range. If no, contact the local power operator or change the grid frequency change rate limit via Hoymiles monitoring system with the consent of the local power operator. Power grid outage Please check whether there is a power grid outage.

  • Page 18: Status Led Indicator

    Flashing Red (1s gap): Not producing power AC grid invalid (Voltage or frequency out of range). ✓ Flashing Red (0.5s gap): There is a fault except the abnormality of grid. © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 19: On-Site Inspection (For Qualified Installer Only)

    Flashing Red and Green alternately: Firmware is corrupted. ✓ Flashing Green (s gap): Firmware is upgrading. *Note: All the faults are reported to the DTU, refer to the local APP of the DTU or Hoymiles Monitoring Platform for more information. 6.3 On-site Inspection (For qualified installer only) To troubleshoot an inoperable microinverter, follow the steps in the order shown.

  • Page 20: Replace Microinverter

    Avoid temporary repairs. All repairs should be carried out using only genuine spare parts. If all the microinverters connect to the DTU-Pro, the DTU can limit the output power imbalance of all the microinverters between phases to below 3.68kW if required. Please refer to “Hoymiles Technical Note Limit Phase Balance” for more details.

  • Page 21: Decommissions

    7.2 Storage and Transportation Hoymiles packages and protects individual components using suitable means to make the transport and subsequent handling easier. Transportation of the equipment, especially by road, must be carried out by suitable ways for protecting the components (in particular, the electronic components) from violent, shocks, humidity, vibration, etc.

  • Page 22: Disposal

    The output DC power of PV module is NOT recommended to exceed 1.35 times the output AC power of the microinverter. Refer to “Hoymiles Warranty Terms & Conditions” for more information. © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 23: Dc Input

    Model MI-300T MI-350T MI-400T Peak inverter efficiency 96.70% 96.70% 96.70% CEC weighted efficiency 96.50% 96.50% 96.50% Nominal MPPT efficiency 99.80% 99.80% 99.80% Night time power consumption (mW) <50 <50 <50 © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 24: Mechanical Data

    12 years standard, 25 years optional VDE-AR-N 4105:2018, EN50549-1:2019, VFR2019, Compliance AS 4777.2:2015, IEC/EN 62109-1/-2, IEC/EN 61000- 3-2/-3, IEC/EN-61000-6-1/-2/-3/-4 *Note: Voltage and frequency ranges can be extended beyond nominal if required by the utility. © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 25: Installation Map

    MI-300T/MI-350T/MI-400T Appendix 1: Installation Map © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 26: Wiring Diagram - 230Vac Single Phase

    MI-300T/MI-350T/MI-400T Appendix 2: WIRING DIAGRAM – 230VAC SINGLE PHASE: © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 27: Wiring Diagram - 230Vac / 400Vac Three Phase

    MI-300T/MI-350T/MI-400T WIRING DIAGRAM – 230VAC / 400VAC THREE PHASE: © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 28: Wiring Diagram -120Vac / 240Vac Split Phase

    MI-300T/MI-350T/MI-400T WIRING DIAGRAM –120VAC / 240VAC SPLIT PHASE: © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 29: Wiring Diagram - 120Vac / 208Vac Three Phase

    MI-300T/MI-350T/MI-400T WIRING DIAGRAM – 120VAC / 208VAC THREE PHASE: © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.
