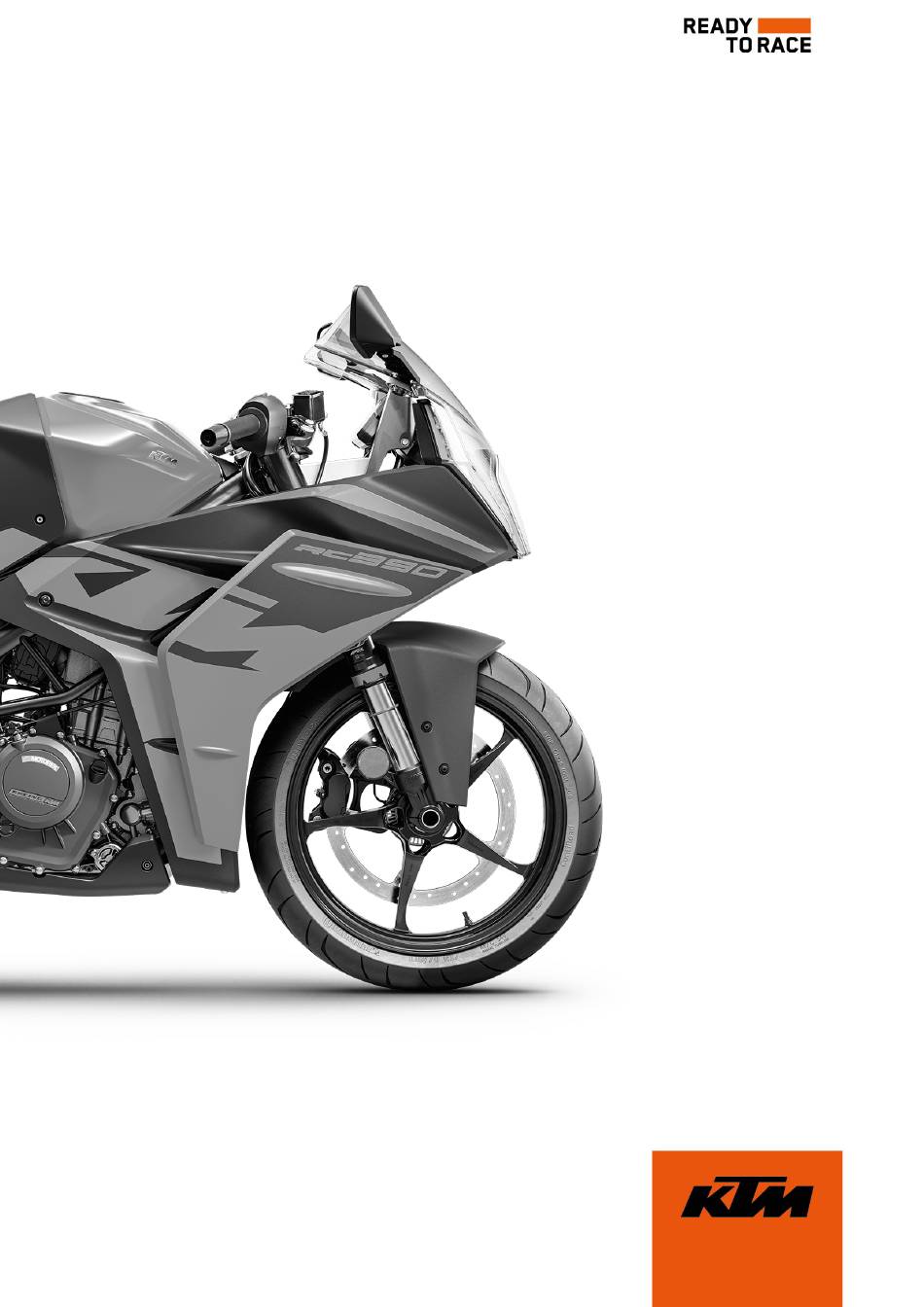

- Page 1 SETUP INSTRUCTIONS 2023 RC 390 RC 390 GP Art. no. 3214873en...
- Page 3 KTM accepts no liability for delivery options, deviations from fig- ures and descriptions, misprints, and other errors. The models portrayed partly contain special equipment that does not belong to the regular scope of supply.
-
Page 4: Means Of Representation
1 MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips. - Page 5 To operate the vehicle, the vehicle electronics must be enabled. This process is conducted during initial setup in KTM Dealer.net. Enabling ensures that the initial setup in KTM Dealer.net is docu- mented. Enabling can be performed either temporarily, e.g. for a test ride, or permanently for vehicle handover.
- Page 6 2 SETUP – Turn the rear mirror to the correct position on both sides. V02670-01 – Make sure that the clutch cable is attached to the clutch release lever and secured. – Check the clutch lever play. ( p. 6) H03807-10 –...
- Page 7 – Mount the fuel tank cover. ( p. 9) V02669-01 – Mount the front rider's seat. ( p. 8) – Refuel. ( p. 14) – Prepare the vehicle according to the specifications in KTM Dealer.net for handover to the customer.
- Page 8 3 WORK Checking the clutch lever play Note Clutch damage If there is no free travel by the clutch lever, the clutch will begin to slip. – Check the free travel of the clutch lever each time before using the motorcycle. –...
- Page 9 WORK 3 Removing the passenger seat Preparatory work – Remove the front rider's seat. ( p. 8) Main work – Loosen seat lock cover in area and pull to the front. V02495-10 – Remove screw – Lift and take off the passenger seat. V02496-10 Mounting the passenger seat Main work...
-
Page 10: Remove Screws
3 WORK – Position seat lock cover and press area into the bracket. V02495-11 Finishing work – Mount the front rider's seat. ( p. 8) Removing the front rider's seat – Insert the ignition key in seat lock and turn it clockwise. –... - Page 11 WORK 3 – Pull the fuel tank cover from holding lugs – Pull holding lugs out of the brackets. – Pull the fuel tank cover off towards the rear and take off upwards. V02493-10 Mounting the fuel tank cover Main work –...
-
Page 12: Charging The 12-V Battery
3 WORK Finishing work – Mount the front rider's seat. ( p. 8) Charging the 12-V battery Warning Risk of injury Battery acid and battery gases cause serious chemical burns. – Keep 12 V batteries out of the reach of children. –... - Page 13 WORK 3 Main work – Connect a battery charger to the 12-V battery. Adjust the bat- tery charger. EU battery charger XCharge‑professional (00029095050) Alternative 1 US battery charger XCharge‑professional (00029095051) Alternative 2 311910-10 UK battery charger XCharge‑professional (00029095052) Info Follow the instructions of the charger and the manual. –...
- Page 14 3 WORK Finishing work – Mount the fuel tank cover. ( p. 9) – Mount the front rider's seat. ( p. 8) – Set time and date. ( p. 12) 3.11 Disconnecting the negative cable of the 12-V battery Preparatory work –...
- Page 15 WORK 3 Setting the clock – Press UP or DOWN button until the time is marked. – Press the SET button. The hour flashes and is underlined. – Press UP or DOWN button until the current hour is set. – Press the SET button.
- Page 16 3 WORK Note Environmental hazard Improper handling of fuel is a danger to the environment. – Do not allow fuel to enter the groundwater, the soil, or the sewage system. – Lift cover of the fuel tank filler cap and insert the ignition key into the lock.
- Page 17 WORK 3 Warning Danger of poisoning Fuel is harmful to health. – Avoid skin, eye and clothing contact with fuel. – Immediately consult a doctor if you swallow fuel. – Do not inhale fuel vapors. – Rinse the affected area immediately with plenty of water in the event of contact with the skin. –...
-
Page 18: Technical Specifications
4 TECHNICAL SPECIFICATIONS chassis tightening torques Exhaust clamp 19 Nm (14 lbf ft) Remaining screws, chassis 4 Nm (3 lbf ft) Screw, EFI control unit 3 Nm (2.2 lbf ft) Nut, chain guard 7 Nm (5.2 lbf ft) Nut, reflector on retaining plate 7 Nm (5.2 lbf ft) Remaining nuts, chassis 5 Nm (3.7 lbf ft) - Page 19 TECHNICAL SPECIFICATIONS 4 Screw, compensating tank 9 Nm (6.6 lbf ft) Screw, cross connector, seat sup- 5 Nm (3.7 lbf ft) port Screw, damping rubber for radiator 6 Nm (4.4 lbf ft) Screw, engine sprocket cover 8 Nm (5.9 lbf ft) Screw, foot brake cylinder 8 Nm (5.9 lbf ft) Loctite...
- Page 20 4 TECHNICAL SPECIFICATIONS Remaining nuts, chassis 30 Nm (22.1 lbf ft) Remaining screws, chassis 25 Nm (18.4 lbf ft) Screw, bottom triple clamp 15 Nm (11.1 lbf ft) Screw, connecting plate, subframe 19 Nm (14 lbf ft) Screw, foot brake lever 16 Nm (11.8 lbf ft) Loctite ®...
- Page 21 TECHNICAL SPECIFICATIONS 4 Lambda sensor M18x1.5 19 Nm (14 lbf ft) Screw, subframe top 120 Nm (88.5 lbf ft) Adjusting ring, link fork bearing M22x1 Tighten and ensure that there is no play Screw, front wheel spindle M24x1.5 45 Nm (33.2 lbf ft) Nut, steering head M30x1 55 Nm (40.6 lbf ft)
- Page 22 5 SUBSTANCES Super unleaded (ROZ 95) Standard/classification – DIN EN 228 (ROZ 95) Guideline – Only use super unleaded fuel that matches or is equivalent to the specified standard. – Fuel with an ethanol content of up to 10% (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.g., M15, M85, M100) or more than 10% ethanol (e.g., E15, E25, E85, E100).
- Page 23 *3214873en* 3214873en 06.03.2023 KTM Sportmotorcycle GmbH 5230 Mattighofen/Austria Photo: Mitterbauer/KISKA/KTM KTM.COM...
