All operators must fully read and understand
this operator's manual before using the chipper.
Keep this manual for future reference.
HANSA NEW ZEALAND
HANSA NEW ZEALAND
+64 7 849 4749
+64 7 849 4749
www.hansaproducts.co.nz
www.hansachippers.com
Operation, maintenance and safety manual
info@hansaproducts.co.nz
info@hansaproducts.co.nz
HANSA AUSTRALIA
HANSA AUSTRALIA
1800 426 722
1800 248 199
www.hansaproducts.com.au
www.hansachippers.com.au
info@hansaproducts.com.au
admin@hansachippers.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C16 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hansa C16

  • Page 1 Operation, maintenance and safety manual All operators must fully read and understand this operator’s manual before using the chipper. Keep this manual for future reference. HANSA NEW ZEALAND HANSA AUSTRALIA HANSA NEW ZEALAND HANSA AUSTRALIA +64 7 849 4749 info@hansaproducts.co.nz 1800 426 722 info@hansaproducts.com.au...
  • Page 2: Table Of Contents

    ....................................18 YRE PRESSURE ..................................... 18 OLT TORQUE SPECIFICATIONS ..................................20 DECALS ....................................... 20 HANSA GLOBAL INDUSTRIAL LIMITED WARRANTY ........................22 COMMISSIONING CHECKLIST AND REGISTRATION ........................24 Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 3: What Can My Hansa Chipper Process

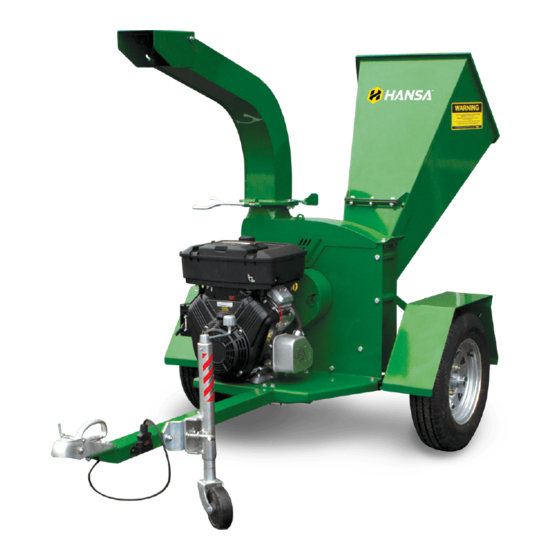

    Intended uses of the chipper The Hansa C16 chipper is built to process organic material including wooden branches not exceeding 110 mm in diameter. It is designed to be used on a regular basis by semi commercial garden maintenance contactors and hire / rental companies. Do NOT use the chipper for any other purpose.
  • Page 4: Assembling The Chipper

    Assembling the chipper When you receive your Hansa brush chipper, the inlet and outlet chute may not be assembled on the chipper. All the fasteners (bolts, nuts and washers) will be attached to their respective components Tools required for assembly (not supplied): •...
  • Page 5: Rewire The Trailer Plug

    Finally, clip the other half of the trailer plug into place and screw the plastic nut on. Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 6: Attach The Wheels

    Outlet Note: The outlet chute locking handle will be in chute the documentation package. locking handle Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 7: Fit The Inlet Chute

    Ensure the jockey wheel is in the up position and locked away during travel Ensure that the machine is towed in accordance with local trailer transport regulations Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 8: Identifying Hazards And Risks

    Take care when handling petrol, oil and grease harmful vapours Wash skin if contaminated with petrol, oil or grease Do NOT refuel the chipper in enclosed areas Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 9: Operation

    That all screws, nuts, bolts, and other fasteners are properly secured That all chipper components are in place and in good condition.  If any parts are worn or damaged, contact Hansa for replacements That fuel and engine oil levels are above the minimum levels...
  • Page 10  Result in kickback of material through the feed opening Transport the chipper while the engine is running Tamper with the engine governor settings on the chipper Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 11: Starting Procedure

    Throttle handle anti clock-wise until it lever comes to a stop. (halfway position) Pull the pull cord in one smooth motion to start the engine. Pull cord Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 12: Shutdown Procedure

    “min” position and wait for rotor Throttle lever to slow down. (“min” position) Disengage the belt drive by rotating the engagement handle anti clock-wise until it comes to a stop. Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 13: Petrol

    The chipper is clogged up Turn the engine off, disconnect the spark plug wires, ensure rotor has completely stopped, remove debris, then close and lock the outlet chute Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 14: Maintenance

    ✓ Check condition of guarding (belt guard and outlet chute)  A damaged guard must be replaced by an identical or equivalent guard immediately  It is recommended to contact Hansa for a replacement guard. Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019...
  • Page 15: Knife Re-Sharpening And Knife Replacement

     Blunt knives result in damage to the chipper How to re-sharpen the knives: If you don’t have a surface grinder or are unsure how to re-sharpen the knives, contact a professional saw doctor or Hansa to arrange re-sharpening. WARNING! Be careful when working around the sharp knives. Be aware that even though the motor is off, the cutting means can still move.
  • Page 16 1 mm on the inside closest to the bearing and 3 mm on the outside closest to the edge of the cutting rotor (refer to diagram for more detail). Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 17: Anvil Adjustment/Replacement

    WARNING! Every time the knife clamping bolts are torqued up to 35 Nm and loosened off again, the life of the bolts is reduced. The knife clamping bolts must be replaced at most after every six sharpens. Contact Hansa for replacement bolts (m8x35 bolts of grade 10.9 or higher).
  • Page 18: Belt Tension

    From this position, turn the engagement handle one full revolution clockwise. This is the recommended tension for the belt drive when in the fully engaged position. Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 19: Belt Replacement

    Note: Engine not shown in this view. Using a 16 mm and 17 mm spanner, unbolt and remove the engine (4xM10 Nuts). Note: loosen the belt tensioner to allow room for removal. Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 20: Tyre Pressure

    The maximum recommended tyre pressure is 65 Psi. Do NOT over inflate the tyres. Over inflation may cause tyres to rupture. Bolt torque Relative Strength Bolt Marking Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 21 Recommended Tightening Torque Recommended Tightening Torque Bolt size Spanner size lb ft lb ft 13 mm 16 mm 12.5 18 mm 24 mm 30 mm Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 22: Specifications

    270⁰ swivel Decals Decal Description Location General machine safety and inlet chute considerations Side of inlet chute Rotor engagement control Side of housing next to engagement arm Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 23 Rotor housing front, next to the belt guard Rotor and housing safety Top face of outlet chute Outlet chute and deflector safety Outlet chute Shaft guard safety Above shaft guard Hansa C16 O&M Manual - OM-009 Revision G 26/09/2019 © Hansa Chippers 2019...
  • Page 24: Hansa Global Industrial Limited Warranty

    HANSA offers a special extended warranty period (“Extended Warranty”) to new HANSA products purchased from an authorised HANSA dealer. The Extended Warranty period is set out below. In order to take advantage of the Extended Warranty you must: 1. Register your HANSA product through the HANSA warranty registration process and identify your HANSA product by its machine serial number.
  • Page 25 General 1. Your rights: a. HANSA will recognise any implied rights and remedies that are available to you at law in the applicable territory and that cannot be excluded by HANSA. b. In New Zealand, Hansa Products Ltd will recognise your statutory rights under the Consumers Guarantee Act 1993 (provided that you are a consumer for the purposes of that Act).
  • Page 26: Commissioning Checklist And Registration

    Commissioning checklist and registration It is the retailers’ responsibility to ensure that this chipper is correctly commissioned for use, and that the purchase is registered with Hansa Chippers so as to provide the owner with the full benefit of the warranty policy.
