All operators must fully read and understand
this operator's manual before using the chipper.
Keep this manual for future reference.
MANUFACTURER: HANSA NEW ZEALAND
+64 7 849 4749
www.hansaproducts.com

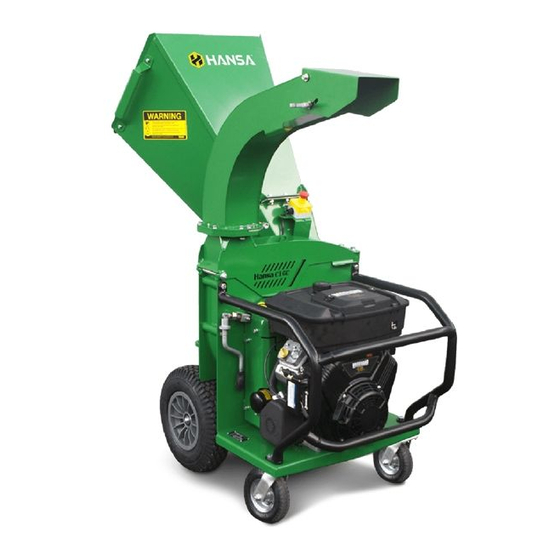

HANSA C16C
Operation, maintenance and safety manual
info@hansaproducts.co.nz
REST OF WORLD:
HANSA NETHERLANDS
Please refer to
www.hansaproducts.com
+024 622 1270
a current list of our authorised dealers and
contact details relevant to your territory
www.hansaversnipperaar.nl
for
info@angenendt.nl
Advertisement
Table of Contents
Related Manuals for Hansa C16C
Summary of Contents for Hansa C16C

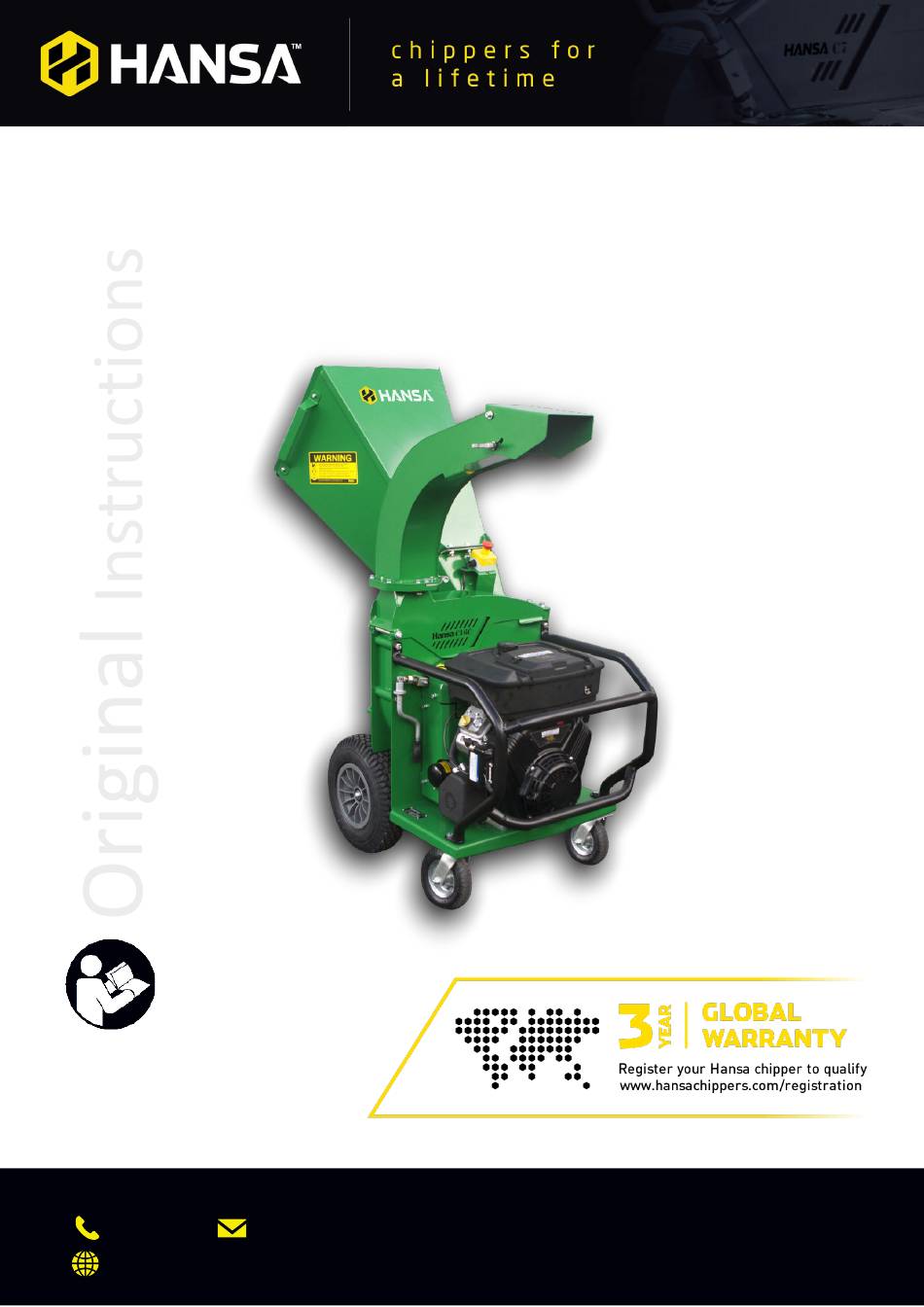

- Page 1 Operation, maintenance and safety manual All operators must fully read and understand this operator’s manual before using the chipper. Keep this manual for future reference. REST OF WORLD: MANUFACTURER: HANSA NEW ZEALAND HANSA NETHERLANDS +64 7 849 4749 info@hansaproducts.co.nz Please refer to www.hansaproducts.com...
-
Page 2: Table Of Contents
HANSA GLOBAL INDUSTRIAL LIMITED WARRANTY ........................20 HONDA ENGINE LIMITED WARRANTY ............................22 COMMISSIONING CHECKLIST AND REGISTRATION ........................24 LABELS ....................................... 25 SOUND OUTPUT INFORMATION ..............................27 EC DECLARATION OF CONFORMITY ............................28 Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019... -
Page 3: What Can My Hansa Chipper Process
Intended uses of the chipper The C16c Hansa chipper is built to process organic material including wooden branches not exceeding 110mm in diameter respectively. It is designed to be used on a regular basis by semi commercial garden maintenance contactors and hire / rental companies. - Page 4 4 mm Allen key - to fit the emergency stop to the inlet Parts supplied for assembly All fasteners included to fix the inlet chute and outlet chute onto chipper Inlet chute Outlet chute Chipper body Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019...
-
Page 5: Assembling The Chipper
Assembling the chipper When you receive your Hansa brush chipper, the inlet and outlet chute may not be assembled on the chipper. All the fasteners (bolts, nuts and washers) are attached to their respective components. Fit the outlet chute Lightly grease the flange on the chipper body. -
Page 6: Safety
Place the chipper in a manner that the operator is not exposed to direct exhaust fumes Hot Exhaust Heat burns Keep bare hands and other body parts a safe distance away from hot exhaust Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019... -
Page 7: Operation
• Freshly cut material is better to process than dry • Maximum branch diameter capacity for the C13c and C16c is 90 mm and 110 mm respectively Safe setup procedure Before you start: Ensure the chipper is positioned in an open area and on firm level ground. -
Page 8: Safe Operating Procedure
As the discharge material piles up Move the chipper to direct the outlet chute away from the pile, or move the processed material to avoid blocking Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019... -
Page 9: Starting Procedure
Turn the fuel lever and position) engine switch to the “on” position. Choke lever (“on” position) Engine Pull the choke lever to switch (“on” turn the choke on. position) Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019... - Page 10 This must be done slowly to allow the cutting rotor to pick up speed; otherwise the engine may stall. Turn the throttle to max. Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019...
-
Page 11: Shutdown Procedure
WARNING! Do NOT disengage the belt drive with the chipper running at full revs, as this will cause friction and vibration on the belt drive. Petrol The C16 chipper requires 91 unleaded petrol to run; check the petrol level before starting. Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019... -
Page 12: Emergency Stop
The knives and/or anvil might be blunt • Inspect and sharpen or replace knives and/or anvil as required. Ensure correct clearances between knives and anvil The material is ejected in long strips Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019... -
Page 13: Maintenance
Check condition of guarding (belt guard and outlet chute) A damaged guard must be replaced by an identical or equivalent guard immediately It is recommended to contact Hansa for a replacement guard. Knife re-sharpening and knife replacement How do I know that the knives need re-sharpening? ... - Page 14 How to re-sharpen the knives: If you don’t have a surface grinder or are unsure how to re-sharpen the knives, contact a professional saw doctor or Hansa to arrange re-sharpening. WARNING! Be careful when working around the sharp knives. Be aware that even though the power source is unplugged, the cutting means can still move.
- Page 15 After the correct clearance is set, fully tighten the clamping bolts using a torque Top view: Knife and anvil set-up wrench to 35 N.m. and tighten the locking nuts on the adjustment bolts. Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019...
-
Page 16: Anvil Adjustment/Replacement
12 months on average. C16c: To check the oil level on the Briggs and Stratton Vanguard engine, unscrew the oil filler cap/dipstick, clean the dipstick, then insert the dipstick into the oil filler cap. Screw the dipstick all the way in for an accurate reading. Refill the oil to the FULL mark on the dipstick, if required. -
Page 17: Belt Tension
Screw the oil outlet drain plug back in and fill the engine with SAE 10W30 or SAE 10W40 through the oil filler cap/dipstick hole. The oil capacity of the C13c and C16c are 1.1 L and 1.4 L respectively. Recheck the oil level. It should be close to, but not above, the upper limit indicator on the dipstick. Screw the oil filler cap/dipstick back into the hole. -
Page 18: Belt Replacement
Worn cover on back of belt Sidewall belt wear If a belt change is necessary, follow these steps Using a 19 mm spanner, unbolt and remove the roll cage (4xM12 bolts). Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019... - Page 19 Note: The belts pass in between the idler wheel and belt guide on the tensioner arm. Idler Wheel Belt guide Place engine back in place and ensure the pulleys are in line. Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019...
-
Page 20: Tyre Pressure
Relative Strength Bolt Marking Recommended Tightening Torque Recommended Tightening Torque Bolt size Spanner size lb ft lb ft 13 mm 16 mm 12.5 18 mm 24 mm 30 mm Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019... -
Page 21: Specifications
110 mm Chipping capacity Gravity fed, self-feeding Feed type 170 x 220 mm Inlet chute opening Discharge System 1580 mm Discharge height 270⁰ swivel Outlet chute type Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019... -
Page 22: Hansa Global Industrial Limited Warranty
HANSA offers a special extended warranty period (“Extended Warranty”) to new HANSA products purchased from an authorised HANSA dealer. The Extended Warranty period is set out below. In order to take advantage of the Extended Warranty you must: 1. Register your HANSA product through the HANSA warranty registration process and identify your HANSA product by its machine serial number. - Page 23 General 1. Your rights: a. HANSA will recognise any implied rights and remedies that are available to you at law in the applicable territory and that cannot be excluded by HANSA. b. In New Zealand, Hansa Products Ltd will recognise your statutory rights under the Consumers Guarantee Act 1993 (provided that you are a consumer for the purposes of that Act).
-
Page 24: Honda Engine Limited Warranty
HONDA product in peak operating condition. The HONDA engine may be removed from the Hansa chipper by the OEM retailer before delivery to an authorized HONDA Engine or Power Equipment dealer for repair. The removal is not covered by the limited warranty. - Page 25 This is a Honda Dealer extended warranty period items that are: Purchased after 15/09/2017. • • Registered at the time of sale through the Hansa Chippers website: www.hansachippers.com/registration • Serviced by a Honda Dealer in accordance with the Honda service schedule using Genuine Honda parts and oil (proof required).
-
Page 26: Commissioning Checklist And Registration
Commissioning checklist and registration It is the retailers’ responsibility to ensure that this chipper is correctly commissioned for use, and that the purchase is registered with Hansa Chippers so as to provide the owner with the full benefit of the warranty policy. -
Page 27: Labels
Side of housing next to engagement arm Belt guard hazard Rotor housing front, next to the belt guard Rotor and housing safety Top face of outlet chute Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019... - Page 28 Outlet chute safety Outlet chute side Lifting point Below lifting point Guaranteed sound power level Rotor housing back Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019...
-
Page 29: Sound Output Information
Sound output information The sound output level and the sound pressure level from the Hansa C16c have been measured in accordance with the testing provisions: Directive 2000/14/EC EN ISO 3744:2010 ISO 11201:2010 ISO 4871:1996 EN 13683:2003 The guaranteed sound output level which must be stated by the manufacturer in accordance with Directive 2000/14/EC is as follows: Hansa C16c: 109 dB (A) relative to 1pW. -
Page 30: Ec Declaration Of Conformity
ISO 11684:1995 ISO 13857:2008 EN 13683:2003 EN 50581:2012 Signed for and on behalf of: Hansa Products Ltd ________________________ Martin Vogel, Managing Director Hamilton, New Zealand September 10 2017 Hansa C16c O&M Manual – OM-020 Revision B 24/06/2019 © Hansa Chippers 2019...
