Hansa C27hs Operation, Safety And Maintenance Manual
Brush chipper
Hide thumbs
Also See for C27hs:
- Standard operating procedure (6 pages) ,
- Operation, maintenance and safety manual (29 pages)
Table of Contents
Advertisement
Quick Links
O
PERATION
It is important that the following instructions are fully read and understood before the
HANSA NEW ZEALAND CONTACT DETAILS:
0508 442 672
FREEPHONE
EMAIL
www.hansaproducts.co.nz
H
C
ANSA
HIPPER
, S
AFETY AND
Hansa Chipper Model C27hs is used
info@hansaproducts.co.nz
M
C27
ODEL
HS
M
AINTENANCE
HANSA AUSTRALIA CONTACT DETAILS:
1800 248 199
FREEPHONE
www.hansachippers.com.au
M
ANUAL
hansaa@bigpond.com.au
EMAIL
Advertisement
Table of Contents
Related Manuals for Hansa C27hs
Summary of Contents for Hansa C27hs

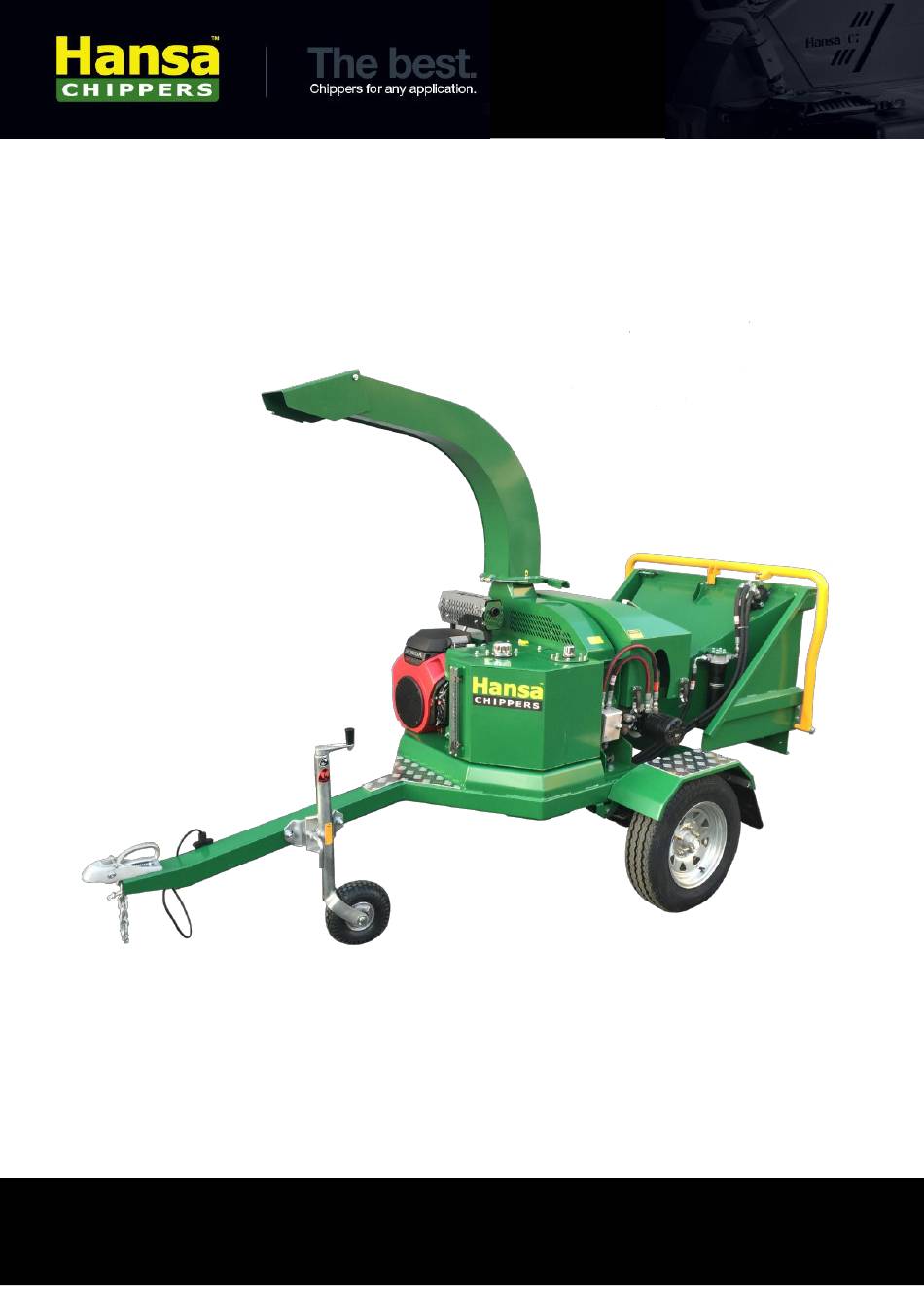

- Page 1 PERATION AFETY AND AINTENANCE ANUAL It is important that the following instructions are fully read and understood before the Hansa Chipper Model C27hs is used HANSA NEW ZEALAND CONTACT DETAILS: HANSA AUSTRALIA CONTACT DETAILS: 1800 248 199 hansaa@bigpond.com.au 0508 442 672 info@hansaproducts.co.nz...
-
Page 2: Table Of Contents
ABLE OF ONTENTS Receiving your Hansa Brush Chipper ......................1 Checklist before operation ..........................1 Chipper Components ............................ 2 Safety ................................2 Intended uses of machine ..........................2 Operator Competency ........................... 2 Operating Safety............................2 Towing Safety ..............................3 Identifying Hazards and Risks ........................3 Operation ................................ -
Page 3: Receiving Your Hansa Brush Chipper
ECEIVING YOUR ANSA RUSH HIPPER Congratulations on the purchase of a Hansa Model C27hs Brush Chipper. Checklist before operation Engine: Check oil level in engine Check condition of air cleaner Check battery is connected and electrolyte level ... -
Page 4: Chipper Components
Keep children and spectators clear of the work area at all times and do not operate the machine where there is an immediate hazard to onlookers. Before starting, ensure the chipper is positioned on level ground. Hansa C27hs O&M Manual - Issue 1 - 04/10/2016 © Hansa Chippers 2016... -
Page 5: Towing Safety
9. Increase throttle to full. WARNING! Engine must run at full throttle for the automatic feed and feed wheel to operate. 10. Set automatic feed control to the desired setting. Hansa C27hs O&M Manual - Issue 1 - 04/10/2016 © Hansa Chippers 2016... -
Page 6: Shutdown Procedure
For operation and maintenance of the engine, please refer to the engine manual. The machine should be cleaned with a hose or a blower. Avoid flooding the housing, as water could damage the bearings. Hansa C27hs O&M Manual - Issue 1 - 04/10/2016 © Hansa Chippers 2016... -
Page 7: Automatic Feed Controller (Afc)
The LCD display will toggle between the current engine RPM and machine hours every 5 seconds. Alternatively the operator can toggle between the two by pushing the ‘Set’ button. Hansa C27hs O&M Manual - Issue 1 - 04/10/2016 © Hansa Chippers 2016... -
Page 8: Maintenance & Service
31°. If you are unable to re-sharpen the blades yourself, either contact a professional sawdoctor, or if more convenient contact Hansa to arrange re-sharpening. Normally only a slight touch up is needed. In this way your blades should last for a long period of time. The blades can be ground back to a minimum width of 105mm. -
Page 9: Anvil Adjustment
The belt size is B46. 4. Once adjusted tighten the nuts to lock in place and refit the drive belt cover. Hansa C27hs O&M Manual - Issue 1 - 04/10/2016 © Hansa Chippers 2016... -
Page 10: Greasing Bearings & Pivot Points
A double crossover relief valve is fitted between the pump and the hydraulic motor. This valve is present for a maximum working pressure of 2000 PSI. For any repair in the hydraulic system, contact Hansa Products or seek advice from a competent service agent. -
Page 11: Engine Servicing
6. The gap between the end of the sensor and the sensing plate is approximately 3mm. Adjust the sensor accordingly. If it is set further away then the sensor may not work properly and therefore the AFC will not work. Hansa C27hs O&M Manual - Issue 1 - 04/10/2016 © Hansa Chippers 2016... -
Page 12: Maintenance & Service Intervals
• Drive Belts – Replace • Hydraulic Pump Belt – Replace • Blades – Replace • Anvil – Replace • Feed Wheel Teeth – Sharpen • • Hansa C27hs O&M Manual - Issue 1 - 04/10/2016 © Hansa Chippers 2016... -
Page 13: Troubleshooting
200 x 127 x 16mm Adjustable blades Belt drive 3 x B46 v-belt Hydraulic pump belt Syncronous Belt (880-8Mgt-20 Belt) Clutch Housing thickness 10mm Fuel tank size Hydraulic tank size Hansa C27hs O&M Manual - Issue 1 - 04/10/2016 © Hansa Chippers 2016... -
Page 14: Bolt Torque
Bolt torque Relative Strength Bolt Marking Maximum Torque Maximum Torque Bolt Wrench Dia. Size lb ft lb ft 13mm 16mm 18mm 24mm 30mm Hansa C27hs O&M Manual - Issue 1 - 04/10/2016 © Hansa Chippers 2016... -
Page 15: Hansa Chipper Industrial Limited Warranty
In New Zealand Hansa Products Ltd will recognise your statutory rights under the Consumers Guarantee Act 1993. In Australia this warranty is given by Hansa Australia Pty Ltd. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law. -
Page 16: Limitations
Fading of painted surfaces, deterioration of plated surfaces, deterioration of rubber and plastics including, rusting due to the passage of time. Normal phenomena such as noise, vibration or oil seepage which are considered by HANSA as not affecting the quality, function or performance of the product. ...
