General Information

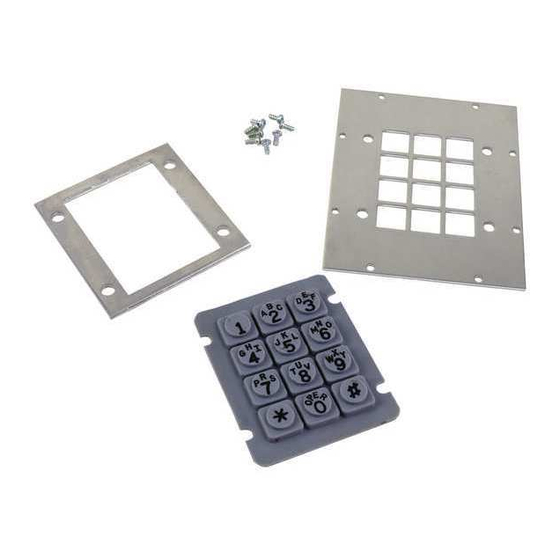

The Model 12613-001 Keypad Seal Door Kit is for use on the GAI-Tronics Model 246C, 256C, 246-001
and 256-001 Industrial Phones. This kit includes the following components:
Item
Qty.
Description
A
1
Keypad mounting panel assembly
PPHTF screws #4 × ¼-inch
B
8
C
1
Keypad seal
D
1
Keypad spacer plate
E
2
.062-inch flat nylon washer
Installation
Unpack the material and compare the included parts to the list above to ensure that all parts are present.
N
: Large and small tip Phillips head screw drivers and ¼-inch nut driver are required for installation
OTE
of this kit.
Disassembly
1. Unscrew front panel of phone from enclosure/back box and carefully disconnect the field wiring.
Please make note of all field wiring connections.
2. See Figure 1. The printed circuit board assembly (PCBA) is mounted with six screws. Four screws
mount to the keypad mounting panel below and two mount to standoffs on the phone front panel.
Remove the two 4-40 × ¼-inch screws from the hex standoffs and save for reassembly later.
Unscrew the other four screws about ¼ inch or until they disengage from the keypad mounting panel
below. (These screws will also be reused when re-assembly later.)
GAI-TRONICS 3030 KUTZTOWN RD. READING PA 19605 USA
610-777-1374
V
ISIT WWW
G A I - T R O N I C S ®
A H U B B E L L C O M P A N Y
Keypad Seal Kit
Model 12613-001
800-492-1212
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
Fax: 610-796-5954
Pub. 42003-230A
