Dyconn Myth Series Instruction Manual

Articulating tv/monitor gas spring wall mount
Hide thumbs Also See for Myth Series:

Advertisement

Quick Links

Download this manual
Page
0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Myth Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dyconn Myth Series

Summary of Contents for Dyconn Myth Series

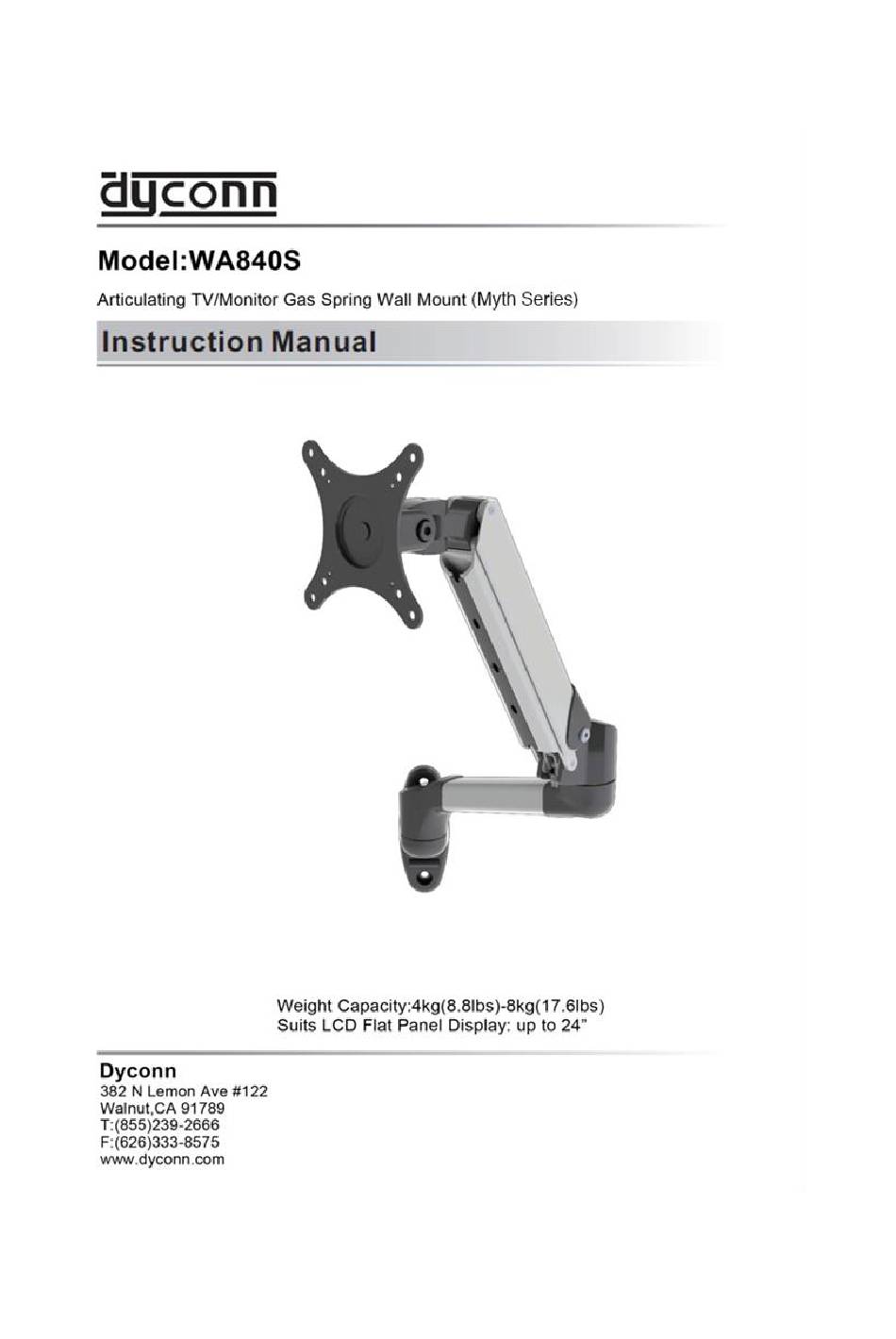

  • Page 1 Page...
  • Page 2 Images may differ from actual product Disclaimer It is Dyconn’s intention to have all the correct information present within this manual. Although we try our best, Dyconn makes no claim that the information comprised herein covers all conditions or details in connection with installation or use of this product.

  • Page 3: Assembly And Installation

    Please Read the following before installing  Verify all parts are included. Do not install if the products or hardware are damaged or missing. Not all hardware included will be used.  Please contact a qualified installer.  This product contains moving parts, use with caution. ...
  • Page 4 Product Dimension Page...
  • Page 5 Supplied Parts Page...
  • Page 6 Step 【1】 Wood Wall Installation Drilling into electrical wires or cables can cause serious personal injury! Always make certain area behind mounting area is free of electrical wires and cables before drilling or installing. Improper installation can lead to mount falling causing severe personal injury or damage to equipment.
  • Page 7 2. Ensure that the pilot holes are straight and centered on the wooden beam. Proceed to drill pilot holes 2” into the beam (See Figure 1-2). Figure 1-2 3. Insert the Philips Screw ST6.3x65mm (4) through the Washer (9), Wall Plate (3) and into the pilot hole.
  • Page 8 Step 【1】 Masonry Wall Installation Drilling into electrical wires or cables can cause serious personal injury! Always make certain area behind mounting area is free of electrical wires and cables before drilling or installing. Improper installation can lead to mount falling causing severe personal injury or damage to equipment.
  • Page 9 3. Insert the Anchor (7) into pilot hole and gently tap with a hammer until the Anchor (7) is fully engaged into the wall (See Figure 1-6). Figure 1-6 4. Insert the Philips Screw ST6.3x65mm (4) through the Washer (9), Wall Plate (3) and into the Anchor (7).
  • Page 10 Step 【2】 Display Installation Using improper screws or screw size may damage your monitor. If spacers are required, be sure to use screws of the correct size. Proper screws will easily and completely thread into the monitor mounting holes. Inadequate thread engagement in the monitor may cause the monitor to fall.
  • Page 11 3. Determine depth of recessed mounting holes relative to the back of the surface of the monitor and select proper length of Screws (11、12) or Knobs (17). 4. Place the Gas Spring Arm (1) on the back of the display and align the mounting holes with the VESA bracket.
  • Page 12 Step 【3】 Attaching Articulating Arm Assembly Gas Spring Arm will only work when a monitor is properly installed. Attaching the Articulating Arm Assembly 1. Install the Extension Arm (2) onto Wall Plate (3) (See Figure 3-1). 2. Place the Cover (14) on the pivot point. Place the Phillips Screw M6x12mm (15) through the Gasket (16) and into the bottom of the Wall Plate (3).
  • Page 13 3. Install the Gas Spring Arm (1) onto the Extension Arm (2) (See Figure 3-3). 4. Place the arm Cover (14) on the pivot point. Place the Phillips Screw M6x12mm (15) through the Plastic Washer M6 (13) and into the bottom of the pivot point. Securely tighten screw with a Phillips Screwdriver.
  • Page 14 Step 【4】 Cable Management Ensure that the gas spring arm is fully extended before connecting the cables. Exercise caution when attaching or removing the display to avoid personal injury or damage to equipment. Disconnect power before removing the display. Note: Be sure to leave enough slack in the cables to allow for movement of the arm.
  • Page 15 Step 【5】 Adjusting the Display Monitor Forced movement of the gas spring arm or VESA bracket may damage the unit. Before adjusting, disconnect the power of the monitor to avoid excess damage. Make the necessary adjustments, ensure that the monitor is supported and the proper screws are loosened.
  • Page 16 Adjusting the Mount Bracket Resistance 1. To adjust the resistance on the VESA bracket, use the provided 6mm hex Allen wrench (6) to loosen or tighten the hex screw until you have reached your desired position (See Figure 5-2). Figure 5-2 2.
  • Page 17 3. To adjust the height, remove the Extension arm (2) from wall plate (3). Reattach the Gas Spring Arm to wall plate (1) (See Figure 5-4). Figure 5-4 4. The gas spring arm can lift up 60° and down 30° (See Figure 5-5). At the wall plate, the mount has a swivel range of 180°, 360°...
  • Page 18 Step 【6】 Ergonomic Guidelines Note: Proper ergonomic design is necessary to prevent repetitive strain injuries, which can develop over time and can lead to long-term disabilities. 1. To ensure the correct focal distance for ultimate visual comfort, a viewing distance between 18"...
  • Page 19 2. Agronomists recommend that the proper screen position should be slightly below eye level. The suggested viewing angle should be approximately 10-20° downward onto the center of the screen. The lumbar (bottom five vertebrate in the spine) needs to be supported to decrease disc pressure.
  • Page 20 Dyconn disclaims any liability for modification, improper installations, or installations over specified weight range. Dyconn will not be liable for any damages arising out of the use of, or inability to use of Dyconn products. Warranty specification is subject to change without prior notice.
