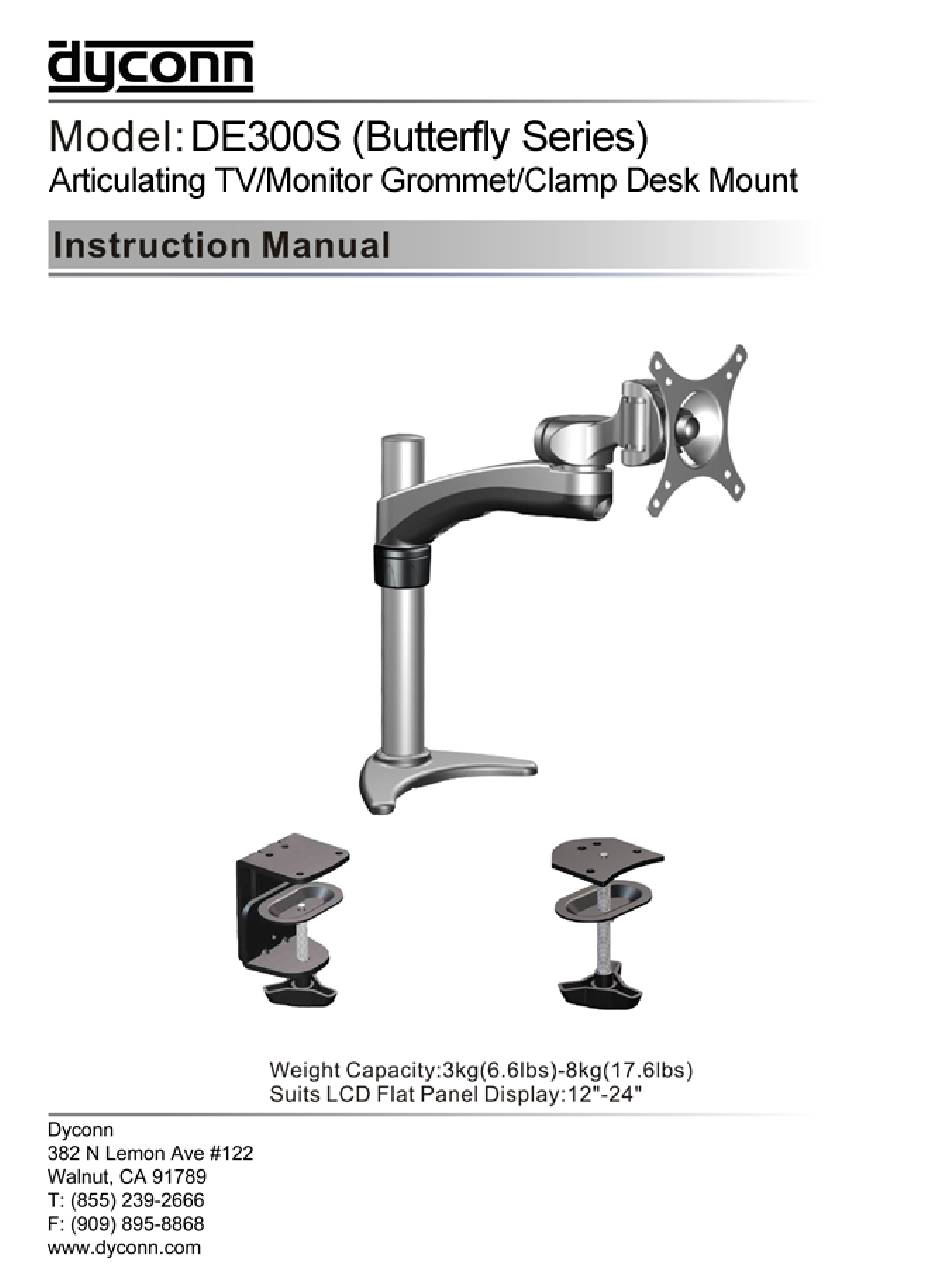

Dyconn Butterfly Series Instruction Manual

Articulating tv / monitor grommet / clamp desk mount
Hide thumbs Also See for Butterfly Series:
Table of Contents

Advertisement

Quick Links

Download this manual
t

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Butterfly Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dyconn Butterfly Series

Summary of Contents for Dyconn Butterfly Series

  • Page 2 Images may different from actual product Disclaimer It is Dyconn’s intention to have all the correct information present within this manual. Although we try our best, Dyconn makes no claim that the information comprised herein covers all conditions or details in connection with installation or use of this product.

  • Page 3: Specifications

    Please read the following warnings before installing: Verify that all parts are included. Do not install if the products or hardware are damaged. Not all hardware included will be used. Please contact a qualified installer. This product contains moving parts. Use with caution. Determine approximate location for mounting and be sure to consider the display size, extension, height adjustment and pitch/roll requirements.

  • Page 4: Product Dimension

    Product Dimension Page...

  • Page 5: Supplied Parts

    Supplied Parts Page...

  • Page 6: Assembly And Installation

    Required Tools ASSEMBLY and INSTALLATION INSPECT THE MOUNT BEFORE ASSEMBLY 1. Carefully inspect/verify that all components are present. 2. If the mount/components are damaged or missing, please contact the company/seller of the product you purchased this unit from and report the issue. Note: Read all assembly instructions before starting the installation process.
  • Page 7 Step 【1】 Installation of Desk Clamp Using improper screws or screw size may damage your display. If spacers are required, be sure to use screws of the correct size. Proper screws will easily and completely thread into the display mounting holes. Inadequate thread engagement in the display may cause display to fall. Note: Other tools may be required depending on your method of installation.
  • Page 8 3. Attach the Desk Clamp (2) on to the edge of the desk in the desired position and with the clamp opening facing towards the edge of desktop (See Figure 1-3). Tighten by hand to ensure that the Desk Clamp fully clamps to the desktop surface and is secure (See Figure 1-4). Figure 1-3 Figure 1-4 4.
  • Page 9 Step 【1】 Installation of Grommet Clamp Using improper screws or screw size may damage your display. If spacers are required, be sure to use screws of the correct size. Proper screws will easily and completely thread into the display mounting holes. Inadequate thread engagement in the display may cause display to fall. Note: Other tools may be required depending on your method of installation.
  • Page 10 7. Place the Plastic Gasket Cushions on the metal plate and base as shown (See Figure 1-8). Figure 1-8 8. Attach the Grommet Clamp Pole (2) to the edge of the desk in the desired position and ensure that there is sufficient cabling in the desktop hole as shown (See Figure 1-9). 9.
  • Page 11 10. To position the Collar at your desired height, you will need to loosen the Collar as shown. Tighten by hand in a clockwise direction until the Collar is firmly in place (See Figure 1-11). Figure 1-11 Page...

  • Page 12: Display Installation

    Step 【2】 Display Installation Using of improper screw size may damage your display. If spacers are required, be sure to use correct size of screws. Proper screws used will easily and completely thread into the display mounting holes. Inadequate thread engagement in the display may cause display falling. It is the installer’s responsibility to make sure the combined weight of all components does not exceed the weight capacity of 17.6lbs (8kg).
  • Page 13 3. Determine depth of recessed mounting holes relative to the surface on the back of the display. 4. Align the Spacers (4) with the holes on the back of the display. Then, align the Tilter Mount Bracket mounting holes with the Spacers (4). Thread the Screws M4x25mm (6) through the Tilter Mount Bracket, Spacers and into the display (See Figure 2-3).
  • Page 14 Step 【3】 Articulating TV/Monitor Grommet/Clamp Desk Mount The DE300S assembly will only work when a display is properly installed. Attaching the DE300S Arm Assembly 1. Attach the assembled arm (1) down onto the pole as shown (See Figure 3-1). 2. Once you have the assembled arm in your desired position, tighten the Hex Grub Screw using the Hex Allen Wrench 2.5mm (7) until the arm is firmly in place (See Figure 3-2).

  • Page 15: Cable Management

    Step 【4】 Cable Management Ensure the DE300S mount is fully extended before connecting the cables. Exercise caution when attaching or removing the display to avoid personal injury or damage to equipment. Disconnect power before removing the display. Note: Be sure to leave enough slack in the cables to allow for movement of the arms. Installing the Cables 1.
  • Page 16 2. Feed the cables through the cable bracket slot on the underside of the arm as shown (See Figure 4-2). Figure 4-2 3. Attach the Cable Clip (3) to secure the cables to the pole (See Figure 4-3). Figure 4-3 Page...
  • Page 17 Step 【5】 Adjusting the Display Monitor Forced movement without loosening the Screws will damage the DE300S mount or display monitor. Exercise caution when adjusting the display. Support the display to avoid damage to equipment. Disconnect power before removing the display. Note: The DE300S mount comes factory set to support 17.6 lbs (8kg) displays.
  • Page 18 3. If the weight of the display monitor causes the Tilter Mount Bracket to fall, you may need to adjust the Tilter Mount Bracket joint to suit your display monitor tilt position of +/- 90 degrees. This can be done by using Hex Allen Wrench 4mm (9). To increase the resistance of the Tilter Mount Bracket to secure tilt position, adjust the Tension Hex Socket Cap Screw M5x15mm located around the Tilter Mount Bracket Joint using the 4mm Hex Allen Wrench (See Figure 5-2).
  • Page 19 6. The DE300S mount is manufactured and designed to adjust quickly and easily according to your needs. To adjust the height, loosen Collar to raise or lower the LCD Arm assembly to achieve your desired position (See Figure 5-4). 7. If this product tends to drift to the side, you may need to adjust the tension on the arm to suit your display monitor arm to the desired position.

  • Page 20: Ergonomic Guidelines

    Step 【6】 Ergonomic Guidelines Note: Proper ergonomic design is necessary to prevent repetitive strain injuries, which can develop over time and can lead to long-term disabilities. To ensure the correct focal distance for ultimate visual comfort, a viewing distance between 460mm (18”) to 610mm (24”) is recommended (See Figure6-1).
  • Page 21 2. To assess the fit between a person and their work, ergonomists recommended that the optimal screen position should be slightly below eye level. Viewing angle should be approximately 10°-20° downward onto the screen’s center. The lumbar (bottom five vertebrate in the spine) needs to be supported to decrease disc pressure.
  • Page 22 Dyconn disclaims any liability for modification, improper installations, or installations over specified weight range. Dyconn will not be liable for any damages arising out of the use of, or inability to use of Dyconn products. Warranty specification is subject to change without prior notice.

This manual is also suitable for:

De300s
