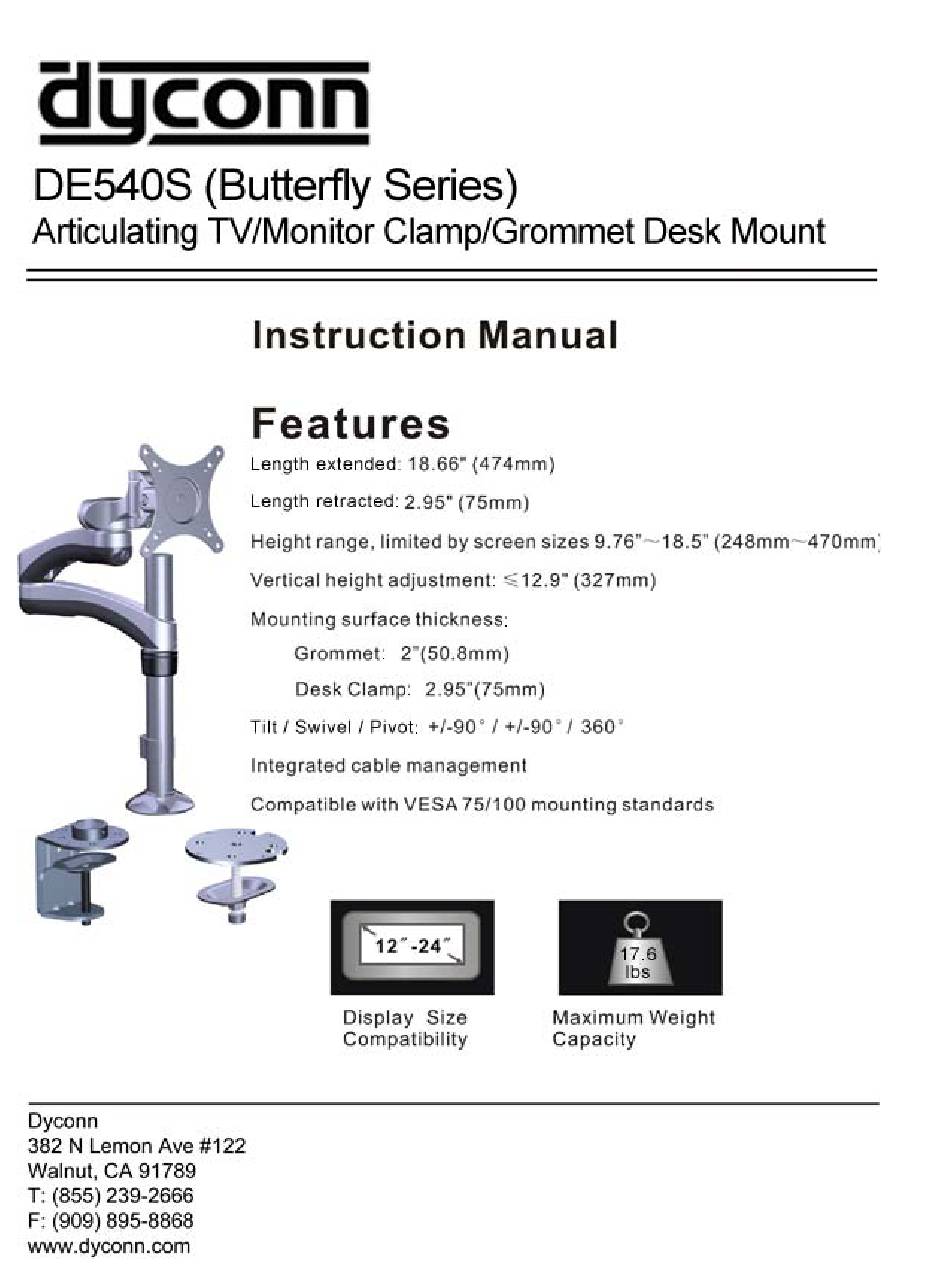

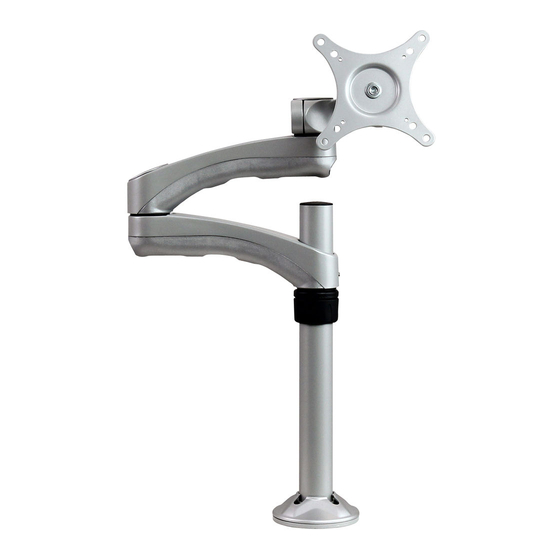

Summary of Contents for Dyconn Butterfly Series
- Page 2 Images may be different from actual product Disclaimer It is Dyconn’s intention to have all the correct information present within this manual. Although we try our best, Dyconn makes no claim that the information comprised herein covers all conditions or details in connection with installation or use of this product.
-
Page 3: Specifications
Please read the following Instructions before installing: Verify that all parts are included. Do not install if the products or hardware are damaged. Not all hardware included will be used. Please contact a qualified installer. This product contains moving parts. Use with caution. Determine approximate location for mounting and be sure to consider the display size, extension, height adjustment and pitch/roll requirements. -
Page 4: Product Dimensions
Product Dimensions Page... -
Page 5: Parts List
Parts List Page... -
Page 6: Installation Instructions
Installation Instructions 1) Place Gasket Cushions on Desk Clamp base. 2) Place the Desk Clamp on the edge of the desk. Adjust the screw on the Desk Clamp to ensure that pressure plate is pressed flat onto the desk surface. Tighten the hex screw using the Allen Wrench 8mm until the Desk Clamp is secure. - Page 7 1) Remove the Desk Clamp and attach the Grommet Plate. 2) Place the Gasket Cushions onto the Grommet Plate. Page...
- Page 8 3) Place the Grommet mount over the cable management hole. Adjust the screw until the pressure plate is pressed flat onto the desk surface. Using the Allen Wrench 8mm, tighten the hex screw until the Grommet mount is secured in place. Page...
- Page 9 1) Place the mounting head onto the back of display. Align the holes with the holes on the back of the monitor. Select the proper length of screws that suit your monitor’s specifications and tighten the screws with a Philips Screwdriver until the mount head is firmly attached to the display. Do not over tighten the screws.
- Page 10 1) Attach the assembled LCD Arm and display down onto the pole. If necessary, tighten the collar to secure position. Follow by tightening the hex grub screw using the Allen Wrench 2.5mm until the assembly is firmly in place. Page...
- Page 11 1) Ensure the assembled DE540S mount is fully extended. Be sure to leave enough slack in the cables to allow for movement of the arms so that they are not stretched or pulled out when the display is moved. 2) Feed the cables through the cable entry slot on the underside of the arm. 3) Attach the Cable Clip to secure cables to the pole.
- Page 12 1) Adjust the screws to suit your desired display tilt and swivel of +/- 90 degrees and also display orientation of 360 degrees. Page...
- Page 13 Dyconn disclaims any liability for modification, improper installations, or installations over specified weight range. Dyconn will not be liable for any damages arising out of the use of, or inability to use of Dyconn products. Warranty specification is subject to change without prior notice.
