Summary of Contents for Dyconn Myth Series

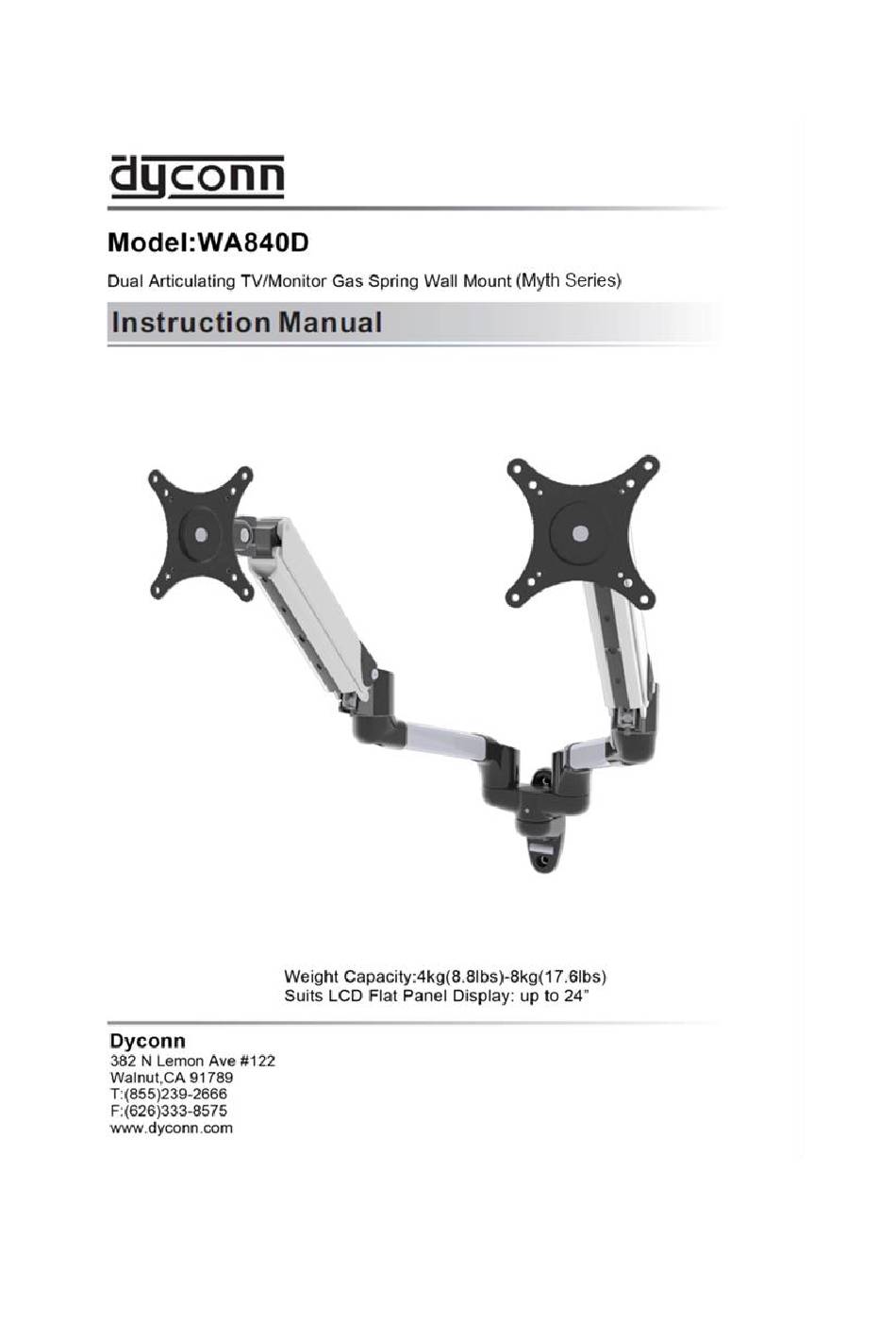

Page 1 Page...
Page 2 Images may differ from actual product Disclaimer It is Dyconn’s intention to have all the correct information present within this manual. Although we try our best, Dyconn makes no claim that the information comprised herein covers all conditions or details in connection with installation or use of this product.
Page 3: Assembly And Installation
Please Read the following before installing  Verify all parts are included. Do not install if the products or hardware are damaged or missing. Not all hardware included will be used.  Please contact a qualified installer.  This product contains moving parts, use with caution. ...
Page 4 Product Dimension Page...
Page 5 Supplied Parts Page...
Page 6 Step 【1】 Wood Wall Installation Drilling into electrical wires or cables can cause serious personal injury! Always make certain area behind mounting area is free of electrical wires and cables before drilling or installing. Improper installation can lead to mount falling causing severe personal injury or damage to equipment.
Page 7 2. Ensure that the pilot holes are straight and centered on the wooden beam. Proceed to drill pilot holes 2” into the beam (See Figure 1-2). Figure 1-2 3. Insert the Philips Screw ST6.3x65mm (4) through the Washer (9), Wall Plate (3) and into the pilot hole.
Page 8 4. Install the DEK (18) onto the wall plate (3) pole. To secure the DEK, tighten the hex screw using the 2.5mm Allen Wrench (17) (See Figure 1-4). Figure 1-4 5. Place the Cover (19) on the top of the DEK. Place the Phillips Screw M6x12mm (15) through the Plastic Washer M6 (13) and into the bottom of the DEK.
Page 9 Step 【1】 Masonry Wall Installation Drilling into electrical wires or cables can cause serious personal injury! Always make certain area behind mounting area is free of electrical wires and cables before drilling or installing. Improper installation can lead to mount falling causing severe personal injury or damage to equipment.
Page 10 3. Insert the Anchor (7) into pilot hole and gently tap with a hammer until the Anchor (7) is fully engaged into the wall (See Figure 1-8). Figure 1-8 4. Insert the Philips Screw ST6.3x65mm (4) through the Washer (9), Wall Plate (3) and into the Anchor (7).
Page 11 5. Install the DEK (18) onto the wall plate (3) pole. To secure the DEK, tighten the hex screw using the 2.5mm Allen Wrench (17) (See Figure 1-10). Figure 1-10 6. Place the Cover (19) on the top of the DEK. Place the Phillips Screw M6x12mm (15) through the Plastic Washer M6 (13) and into the bottom of the DEK.
Page 12 Step 【2】 Display Installation Using improper screws or screw size may damage your monitor. If spacers are required, be sure to use screws of the correct size. Proper screws will easily and completely thread into the monitor mounting holes. Inadequate thread engagement in the monitor may cause the monitor to fall.
Page 13 3. Determine depth of recessed mounting holes relative to the back of the surface of the monitor and select proper length of Screws (11、12) or Knobs (20). 4. Place the Gas Spring Arm (1) on the back of the display and align the mounting holes with the VESA bracket.
Page 14 Step 【3】 Attaching Dual Articulating Arm Assembly Gas Spring Arms will only work when monitors are properly installed. Attaching the Dual Articulating Arm Assembly 1. Install the Extension Arms (2) onto the DEK (18) (See Figure 3-1). 2. Place the arm Covers (14) on the pivot points. Place the Phillips Screws M6x12mm (15) through the Gaskets (16) and into the bottom of the DEK (18).
Page 15 3. Install the Gas Spring Arms onto the Extension Arms (See Figure 3-3). 4. Place the arm Covers (14) on the pivot points. Place the Phillips Screws M6x12mm (15) through the Plastic Washers M6 (13) and into the bottom of the pivot points. Securely tighten with a Phillips Screwdriver.
Page 16 Step 【4】 Cable Management Ensure that the gas spring arm is fully extended before connecting the cables. connecting cables. Exercise caution when attaching or removing the display to avoid personal injury or damage to equipment. Disconnect power before removing the display. Note: Be sure to leave enough slack in the cables to allow for movement of the arms.
Page 17 Step 【5】 Adjusting the Display Monitor Forced movement of the gas spring arm or VESA bracket may damage the unit. Before adjusting, disconnect the power of the monitor to avoid excess damage. Make the necessary adjustments, ensure that the monitor is supported and the proper screws are loosened.
Page 18 Adjusting the Mount Bracket Resistance 2. To adjust the resistance on the VESA bracket, use the provided 6mm hex Allen wrench (6) to loosen or tighten the hex screw until you have reached your desired position (See Figure 5-2). Figure 5-2 This bracket features +/-90°...
Page 19 4. The gas spring arm can lift up 60° and down 30° (See Figure 5-4). At the wall plate, the mount has a swivel range of 180°, 360° at the pivot point and 180° at the monitor interface (See Figure 5-5). Figure 5-4 Figure 5-5 Page...
Page 20 Step 【6】 Ergonomic Guidelines Note: Proper ergonomic design is necessary to prevent repetitive strain injuries, which can develop over time and can lead to long-term disabilities. 1. To ensure the correct focal distance for ultimate visual comfort, a viewing distance between 18"...
Page 21 2. Agronomists recommend that the proper screen position should be slightly below eye level. The suggested viewing angle should be approximately 10-20° downward onto the center of the screen. The lumbar (bottom five vertebrate in the spine) needs to be supported to decrease disc pressure.
Page 22 Dyconn disclaims any liability for modification, improper installations, or installations over specified weight range. Dyconn will not be liable for any damages arising out of the use of, or inability to use of Dyconn products. Warranty specification is subject to change without prior notice.
