Summary of Contents for Dyconn DE840D

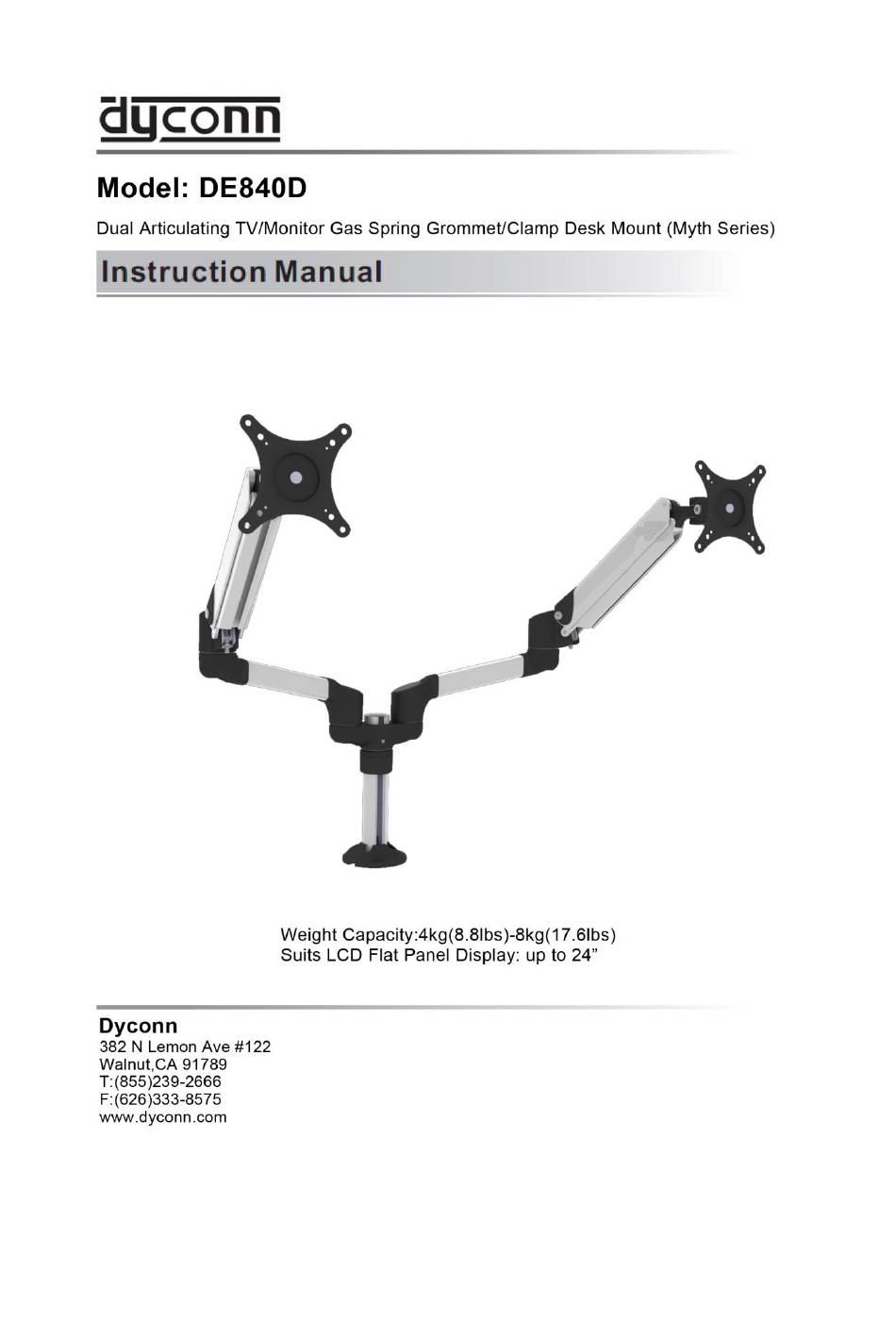

  • Page 1 Page...
  • Page 2 Images may differ from actual product Disclaimer It is Dyconn’s intention to have all the correct information present within this manual. Although we try our best, Dyconn makes no claim that the information comprised herein covers all conditions or details in connection with installation or use of this product.
  • Page 3 Please Read the following before installing  Verify all parts are included. Do not install if the products or hardware are damaged or missing. Not all hardware included will be used.  Please contact a qualified installer.  This product contains moving parts, use with caution. ...
  • Page 4 Supplied Parts Page...
  • Page 5 Required Tools Page...
  • Page 6: Assembly And Installation

    ASSEMBLY and INSTALLATION INSPECT THE MOUNT BEFORE ASSEMBLY 1. Carefully inspect/verify that all components are present. 2. If the mount/components are damaged or missing, please contact the company/seller of the product you purchased this from and report the issue. Note: Read all assembly instructions before starting the installation process.
  • Page 7 Step 【1】 Installation of Desk Clamp Do not over-tighten screws. Stop immediately when you encounter any resistance. Note: A Phillips screwdriver may be needed to complete the following steps. Note: We recommend installing the desk clamp or grommet near the edge or towards the rear of the desktop surface.
  • Page 8 3. Attach the four gasket cushions (17) to the base of the larger L plate (See Figure 1-3). Figure 1-3 4. Combine the components of the pressure plate (items 11-15, see page 5). Using a Phillips screw driver, attach the pressure plate to the smaller L plate. Then proceed to attach the smaller L plate to the larger L plate using the provided 4mm Allen wrench (See Figure 1-4).
  • Page 9 Place the desk clamp towards the edge of the desktop. Ensure the pressure plate is in contact with the bottom surface of the desk. Using the 8mm Allen wrench, tighten the hex screw until the mount is securely in place (See Figure 1-5). Figure 1-5 6.
  • Page 10 Step 【1】 Installation: Grommet Do not over tighten the Handle. Stop immediately if you encounter any resistance. Note: Other tools may be required depending on your method of installation. Installation method: 1. Attach gasket cushions (17) to the grommet plate (See Figure 1-7). Figure 1-7 2.
  • Page 11 Step 【2】 Display Installation Using improper screws or screw size may damage your monitor. If spacers are required, be sure to use screws of the correct size. Proper screws will easily and completely thread into the monitor mounting holes. Inadequate thread engagement in the monitor may cause the monitor to fall.
  • Page 12 3. Determine depth of recessed mounting holes relative to the back of the surface of the monitor and select proper length of Screws (2、3、4). 4. Place the gas spring arm on the back of the display and align the mounting holes with the VESA bracket.
  • Page 13 Step 【3】 Attaching Gas Spring Arm Assembly The DE840D Desk Mount will only work when properly installed. Attaching the Gas Spring Arm Assembly 1. Install the DEK (19) onto the mounting pole. Using the provided 2.5mm Allen wrench, securely fasten the DEK to the mounting pole (See Figure 3-1).
  • Page 14 3. Place the arm covers (7) on the pivot points and secure with the M6x12mm Phillips screws (9) and washers (8) (See Figure 3-3). Do not over tighten the screw. The arm cover is used to help secure the extension arm. Figure 3-3 4.
  • Page 15 Step 【4】 Cable Management Ensure that the gas spring arm is fully extended before connecting the cables. Exercise caution when attaching or removing the display to avoid personal injury or damage to equipment. Disconnect power before removing the display. Note: Be sure to leave enough slack in the cables to allow for movement of the arms.
  • Page 16 3. Attach the cable clip (18) to the mounting pole (See Figure 4-3). Figure 4-3 Page...
  • Page 17 Step 【5】 Adjusting the Display Monitor Forced movement of the gas spring arm or VESA bracket may damage the unit. Before adjusting, disconnect the power of the monitor to avoid excess damage. As you make the necessary adjustments, ensure that the monitor is supported and the proper screws are loosened.
  • Page 18 Adjusting the Bracket's Resistance 2. To adjust the resistance on the VESA bracket, use the provided 6mm hex Allen wrench to loosen or tighten the hex screw until you have reached your desired position (See Figure 5-2). Figure 5-2 3. This product features +/-90° Swivel (See Figure 5-3). Figure 5-3 Page...
  • Page 19 4. To adjust the height, remove the gas spring arm from the mounting pole. Loosen the collar on the mounting pole and adjust to your desired height. Then proceed to reattach the gas spring arm. (See Figure 5-4). Figure 5-4 5.
  • Page 20 Step 【6】 Ergonomic Guidelines Note: Proper ergonomic design is necessary to prevent repetitive strain injuries, which can develop over time and can lead to long-term disabilities. 1. To ensure the correct focal distance for ultimate visual comfort, a viewing distance between 460mm (18") to 610mm (24") is recommended.
  • Page 21 2. Agronomists recommend that the proper screen position should be slightly below eye level. The suggested viewing angle should be approximately 10-20° downward onto the center of the screen. The lumbar (bottom five vertebrate in the spine) needs to be supported to decrease disc pressure.
  • Page 22 Dyconn disclaims any liability for modification, improper installations, or installations over specified weight range. Dyconn will not be liable for any damages arising out of the use of, or inability to use of Dyconn products. Warranty specification is subject to change without prior notice.
