TECHNICAL REFERENCE
LANTIME M300/GPS/2LNE/RPS

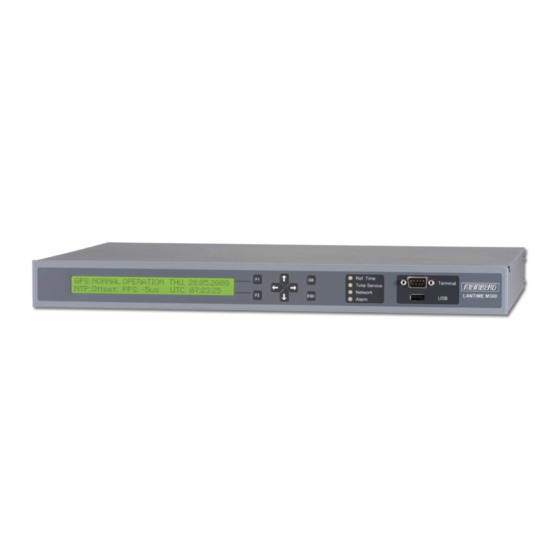

NTP Time Server with GPS Receiver
2nd September 2019
Meinberg Radio Clocks GmbH & Co. KG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LANTIME M300/GPS/2LNE/RPS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Meinberg LANTIME M300/GPS/2LNE/RPS

  • Page 1 TECHNICAL REFERENCE LANTIME M300/GPS/2LNE/RPS NTP Time Server with GPS Receiver 2nd September 2019 Meinberg Radio Clocks GmbH & Co. KG...
  • Page 3: Table Of Contents

    Antenna Assembly with Surge Voltage Protection ......8 WEEE Compliance 9 Declaration of Conformity Date: 2nd September 2019 LANTIME M300/GPS/2LNE/RPS...
  • Page 4: Imprint

    1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com...
  • Page 5: Important Safety Information

    Meinberg Funkuhren shall not be responsible for any damage arising due to non-observance of these regulations.
  • Page 6: Used Symbols

    Dieses Produkt fällt unter die B2B Kategorie. Zur Entsorgung muss es an den Hersteller übergeben werden. This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. LANTIME M300/GPS/2LNE/RPS Date: 2nd September 2019...
  • Page 7 This manual is intended exclusively for electricians or persons trained by an electrician who are familiar with the applicable national standards and safety rules. Installation, commissioning and operation of this device may only be carried out by qualified personnel. Date: 2nd September 2019 LANTIME M300/GPS/2LNE/RPS...
  • Page 8: Security During Installation

    For safety reasons, the device with the highest mass should be installed in the lowest position of the rack. Other devices must be placed from the bottom to the top. The device must be protected against mechanical stress such as vibration or shock. LANTIME M300/GPS/2LNE/RPS Date: 2nd September 2019...
  • Page 9 fluids or foreign objects enter), the current flow can be interrupted. Questions about the house installation, need to be clarified with your house administration. The power supply should be connected with a short, low-inductance line. Date: 2nd September 2019 LANTIME M300/GPS/2LNE/RPS...
  • Page 10 LANTIME M300/GPS/2LNE/RPS Date: 2nd September 2019...
  • Page 11: Protective Conductor- / Ground-Terminal

    (grounding rail). The mounting parts (without cable) are not included in the scope of delivery. Note: Please use a grounding cable 1.5 mm Always pay attention to a correct crimp connection! Date: 2nd September 2019 LANTIME M300/GPS/2LNE/RPS...
  • Page 12: Safety During Operation

    Devices that are connected via one or more uninterruptible power supplies (UPS) remain operational even when the UPS power cord is disconnected. Therefore, you must put the UPS out of operation according to the documentation of the corresponding user documentation. LANTIME M300/GPS/2LNE/RPS Date: 2nd September 2019...
  • Page 13: Safety During Maintenance

    Risk of explosion if the battery is not replaced correctly. Replace only with the same or equivalent type recommended by the manufacturer. When disposing used batteries, observe the local regulations for the disposal of hazardous waste. Date: 2nd September 2019 LANTIME M300/GPS/2LNE/RPS...
  • Page 14: Cleaning And Care

    ESD protective covers, which are extremely wrinkled or even have holes, no longer protect against electrostatic discharge. ESD protective covers must not be low-resistance and metallically conductive if a lithium battery is installed on the assembly. LANTIME M300/GPS/2LNE/RPS Date: 2nd September 2019...
  • Page 15: Return Of Electrical And Electronic Equipment

    Return and Collection Systems For returning your old equipment, please use the country-specific return and collection systems available to you or contact Meinberg. The withdrawal may be refused in the case of waste equipment which presents a risk to human health or safety due to contamination during use.
  • Page 16: Global Information Lantime M300/Gps/2Lne

    After the network connection has been established the time server can also be configured and monitored remotely from a workstation via TELNET or FTP. An integrated web server enables access to the LANTIME by using an ordinary web browser. LANTIME M300/GPS/2LNE/RPS Date: 2nd September 2019...
  • Page 17: Technical Specifications Lantime Chassis

    External Ground Connection on the Housing This connector must be wired to an equipotential bonding bar (earthing bar). Connection is possible on both sides of the housing. The mounting parts (without cable) are included in the scope of delivery. Date: 2nd September 2019 LANTIME M300/GPS/2LNE/RPS...
  • Page 18: Lantime M300 - Front Connectors

    By using the 4 arrows and the "ESC", "F1" and "F2" buttons of the keypad you can navigate through each menu in the display. You can always return to the main menu by pressing the "ESC" button several times. LANTIME M300/GPS/2LNE/RPS Date: 2nd September 2019...
  • Page 19 Stick. The USB Stick can be deployed for the follow- ing tasks: • to lock the keys on the LC-Display, to prevent unauthorized access • to save the LANTIME configuration • to transfer the configuration between several LANTIMES • to save log files Date: 2nd September 2019 LANTIME M300/GPS/2LNE/RPS...
  • Page 20: M300 - Rear Connectors

    6 M300 - Rear connectors PPS Out LAN 1 LAN 3 LAN 5 Error COM 1 LAN 0 LAN 2 LAN 4 GPS Antenna 100M 100M 100M 10MHz Out CO NO NC COM 0 LANTIME M300/GPS/2LNE/RPS Date: 2nd September 2019...
  • Page 21: Ac/Dc Power Supply

    The protective contact plug of the power cable can be reconnected to the power supply. The status LED of the new power supply should now light up and an "OK" status should be displayed in the system’s web interface. Date: 2nd September 2019 LANTIME M300/GPS/2LNE/RPS...
  • Page 22 - Never work with open terminals and plugs while the power is on. - All connectors must be protected against touching live parts with a suitable plug housing! - Note: Always ensure safe wiring! - Important: The device must be connected to a proper grounding (PE). LANTIME M300/GPS/2LNE/RPS Date: 2nd September 2019...
  • Page 23: Rs232 Comx Timestring

    6.2 RS232 COMx Timestring Data transfer: serial Baudrate/framing: 19200 / 8N1 (default) Timestring: Meinberg Standard (default) Assignment: Pin 2: TxD (transmit) Pin 3: RxD (receive) Pin 5: GND (ground) COM x Connection type: D-SUB female 9pin. Cable: data cable (shielded)
  • Page 24: Error Relay

    Dangerous voltages can occur at the terminal of the fault signal relay! Work on the terminal of the fault signal relay must never be carried out with the signal voltage present! LANTIME M300/GPS/2LNE/RPS Date: 2nd September 2019...
  • Page 25: Gps Antenna

    - Do not carry out any work on the antenna system or the antenna cable if there is a risk of a lightning strike. - Do not carry out any work on the antenna system if the safety distance to free lines and sequential circuits is exceeded. Date: 2nd September 2019 LANTIME M300/GPS/2LNE/RPS...
  • Page 26: Pulse Per Second Output

    10MHz Out 6.7 10/100Base-T Network Port (IEEE 803.2) Output signal: 100Base-T Data transmission speed: 10/100 MBit/s LAN x Connection type: 8P8C (RJ45) Cable: Copper twisted pair, e.g. CAT 5.0 100M 10M Duplex Modes: Half/Full/Autonegotiaton LANTIME M300/GPS/2LNE/RPS Date: 2nd September 2019...
  • Page 27: Mounting The Gps Antenna

    - Do not carry out any work on the antenna system or the antenna cable if there is a risk of a lightning strike. - Do not carry out any work on the antenna system if the safety distance to free lines and sequential circuits is exceeded. Date: 2nd September 2019 LANTIME M300/GPS/2LNE/RPS...
  • Page 28: Antenna Cable

    If this message appears the clock has to be disconnected from the mains and the defect eliminated. After that the clock can be powered-up again. The supply voltage for the antenna/converter unit is approx. 18.5 V DC in idle mode and approx. 16 V DC when the GPS antenna is connected. LANTIME M300/GPS/2LNE/RPS Date: 2nd September 2019...
  • Page 29: Antenna Assembly With Surge Voltage Protection

    N-Norm female Meinberg GPS N-Norm male N-Norm male female Ground lead to PE rail or BNC male female (Protective Earth) Cable ca. 1,5 mm Ø fastened at the surge protector Date: 2nd September 2019 LANTIME M300/GPS/2LNE/RPS...
  • Page 30: Weee Compliance

    Any transportation expenses for return- ing this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. LANTIME M300/GPS/2LNE/RPS...
  • Page 31: Declaration Of Conformity

    9 Declaration of Conformity Konformitätserklärung Doc ID: LANTIME M300/GPS/2LNE/RPS-2019-02-18 Hersteller Meinberg Funkuhren GmbH & Co. KG Manufacturer Lange Wand 9, D-31812 Bad Pyrmont erklärt in alleiniger Verantwortung, dass das Produkt, declares under its sole responsibility, that the product Produktbezeichnung LANTIME M300/GPS/2LNE/RPS Product Designation auf das sich diese Erklärung bezieht, mit den folgenden Normen und Richtlinien übereinstimmt:...
