Ubiquiti LTU LR Quick Start Manual

5 ghz subscriber station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
5 GHz Subscriber Station
Model: LTU-LR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTU LR and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti LTU LR

Summary of Contents for Ubiquiti LTU LR

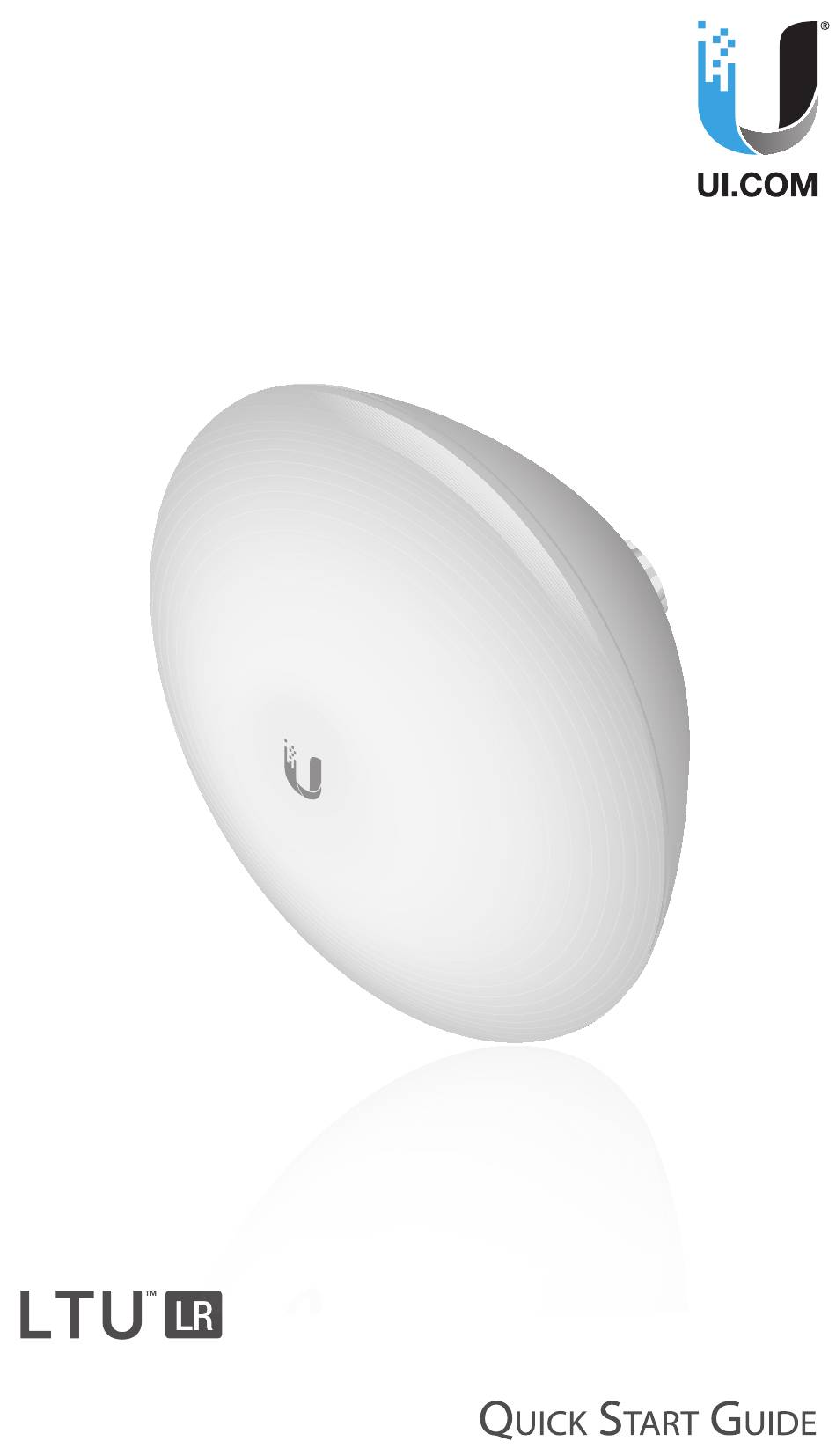

  • Page 1 5 GHz Subscriber Station Model: LTU-LR...

  • Page 2: Installation Requirements

    Introduction Thank you for purchasing the Ubiquiti®  5 GHz Subscriber ™ Station. This Quick Start Guide is designed to guide you through installation and also includes warranty terms. Package Contents LTU-LR Mount Bracket Pole Clamp U-Bolt Flange Nuts Washers (Qty. 2) (Qty.

  • Page 3: Hardware Overview

    This requires a minimum of three satellite connections. UNMS The center LED will light when there is a connection to the Ubiquiti® Network Management System (UNMS ) server. ™ The LED will light steady blue when an active Ethernet connection is made to the Ethernet port and flash when there is activity.

  • Page 4: Bottom Panel

    Bottom Panel Ethernet Port Ethernet Port Gigabit PoE port for handling all user traffic and powering the device. Default IP address: 192.168.1.20...

  • Page 5: Pole Mounting

    Pole Mounting 1. Remove the lock nut. 2. Attach the Mount Bracket.
  • Page 6 3. Replace the lock nut. 4. Insert the U-Bolt into the Pole Clamp. 25 - 60 mm...
  • Page 7 5. Insert the U-Bolt into the Mount Bracket. Secure the U-Bolt with the Washers and Flange Nuts.
  • Page 8 6. Aim the device, and then lock the aim by tightening the Flange Nuts to a torque of 25 N ∙ m. 25 N m...

  • Page 9: Connecting Power

    Connecting Power 1. Remove the port cover by pressing down the center of the cover and sliding the cover out. 2. Connect an Ethernet cable to the Ethernet port.
  • Page 10 3. Replace the port cover. 4. Connect the power using one of the following options: • Using the included Gigabit PoE Adapter: Go to Connecting to the PoE Adapter. • Using a separate PoE switch: Connect the Ethernet cable from the device’s Ethernet port to a 24V Passive PoE-enabled Ethernet port on the switch.
  • Page 11 Connecting to the PoE Adapter 1. Connect the Ethernet cable from the device to the POE port of the Gigabit PoE adapter. 2. Connect an Ethernet cable from your LAN to the LAN port of the Gigabit PoE adapter. 3. Connect the Power Cord to the Gigabit PoE adapter. Connect the other end of the Power Cord to a power outlet.

  • Page 12: Accessing The Configuration Interface

    U.S. to ensure compliance with FCC/IC regulations. The LTU Configuration Interface will appear, allowing you to customize your settings as needed. You can also manage your device using the Ubiquiti Network Management System. The UNMS app lets you configure, ™...

  • Page 13: Installer Compliance Responsibility

    Since Ubiquiti equipment can be paired with a variety of antennas and cables, the Output Power field is provided to the professional installer to assist in meeting regulatory...

  • Page 14: Specifications

    Specifications LTU-LR Dimensions 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86") Weight 1.3 kg (2.87 lb) Networking Interface (1) 10/100/1000 Ethernet Port Enclosure Outdoor UV Stabilized Plastic Max. Power Consumption Power Supply 24V, 0.5A Gigabit PoE Adapter (Included) Power Method 24V Passive PoE In (Pairs 4, 5+;...

  • Page 15: Safety Notices

    Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.
  • Page 16 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 17 CAN ICES-3(A)/NMB-3(A) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : l’appareil ne doit pas produire de brouillage; l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
  • Page 18 Brazil Nota: Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. Country List AT BE BG CY CZ DE DK EE EL ES...
  • Page 19 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 20 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 21: Declaration Of Conformity

    English Hereby, UBIQUITI, declares that this LTU-LR device, is in compliance with the essential requirements and other relevant provisions of Directives 2014/53/EU, 2014/30/EU, 2014/35/EU. The full text of the EU declaration of conformity is available at the following internet address: ui.com/compliance...

  • Page 22: Online Resources

    Id-dikjarazzjoni tal-konformità tista’ tiġi kkonsultata minn ui.com/compliance Norsk [Norwegian] Herved UBIQUITI, erklærer at denne LTU-LR enheten, er i samsvar med de grunnleggende kravene og andre relevante bestemmelser i direktivene 2014/53/EU, 2014/30/EU, 2014/35/EU. Den fulle teksten til EU-samsvarserklæringen er tilgjengelig på følgende internettadresse: ui.com/compliance...
  • Page 23 New York, NY 10017 ©2019 Ubiquiti Inc. All rights reserved. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, LTU, and UNMS are trademarks or registered trademarks of Ubiquiti Inc. in the United States and in other countries.
