Installing/Removing Power Modules

The RUGGEDCOM RX1501 supports a single power module.
1

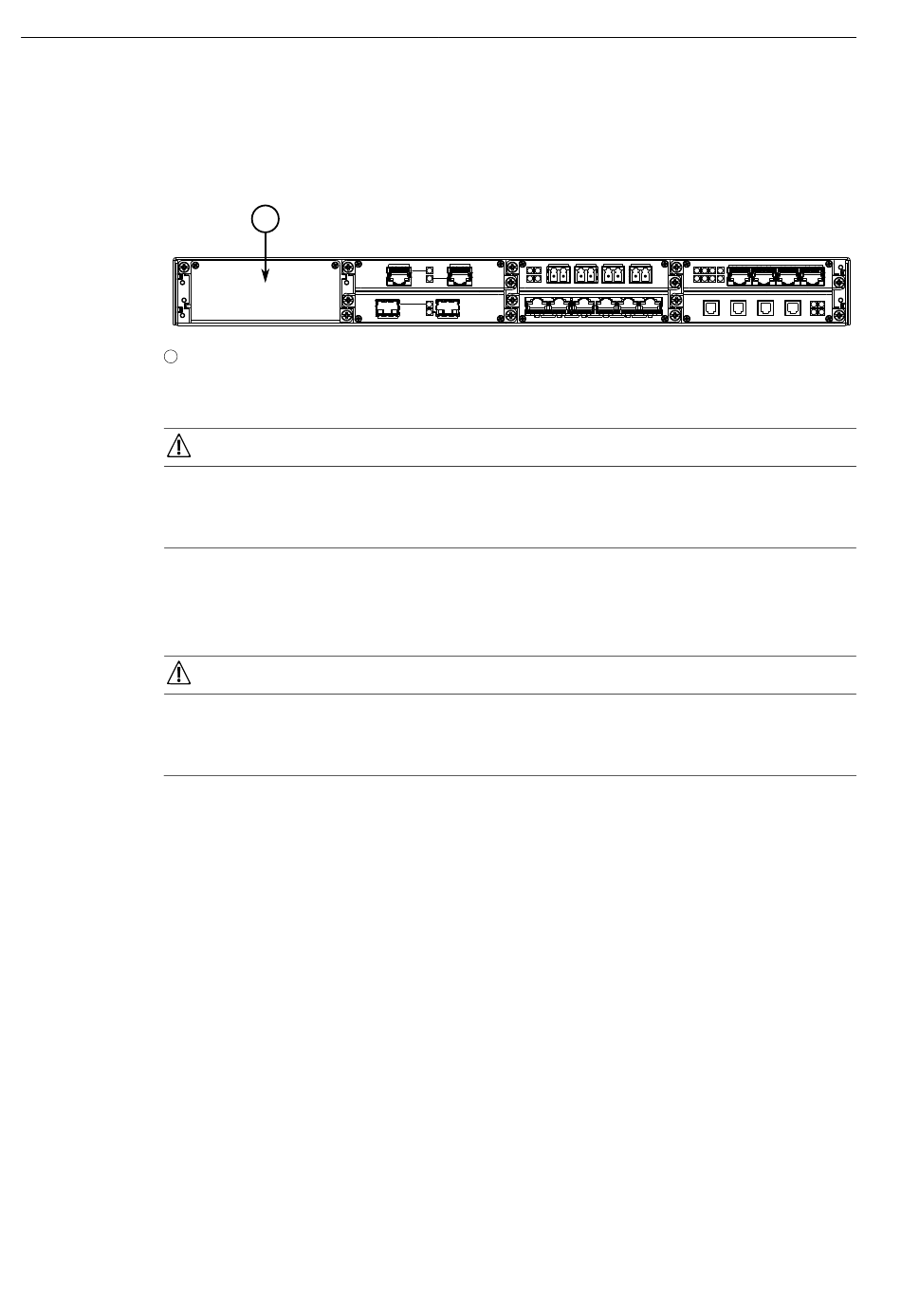

Figure 4.4
Contamination hazard – risk of equipment damage
Prevent the ingress of water, dirts and other debris that may lead to premature
equipment failure. Always make sure slots are not left empty.
Removing a Power Module
To remove a power module, do the following:
Electrocution hazard – risk of serious personal injury or death
Make sure power to the module is turned off before servicing the power supply
terminal.
1.
RUGGEDCOM RX1501
Installation Manual, 10/2021, C79000-G8976-1054-21
1
Power Module
Power Module
NOTICE
DANGER
Turn off power to the module.
4.4 Installing/Removing Power Modules
Modules
31
