RUGGEDCOM RX1501
Installation Manual, 10/2021, C79000-G8976-1054-21
Using a #10 ring lug and #10-32 screw, secure the ground terminal on the
power source to the ground connection on the device. Make sure the lug is
tightened to 2.4 N·m (9.5 lbf·in).
#10 Ring Lug
1
#10-32 Screw
2
Connection from External Power Source
3
Ground Connection
4

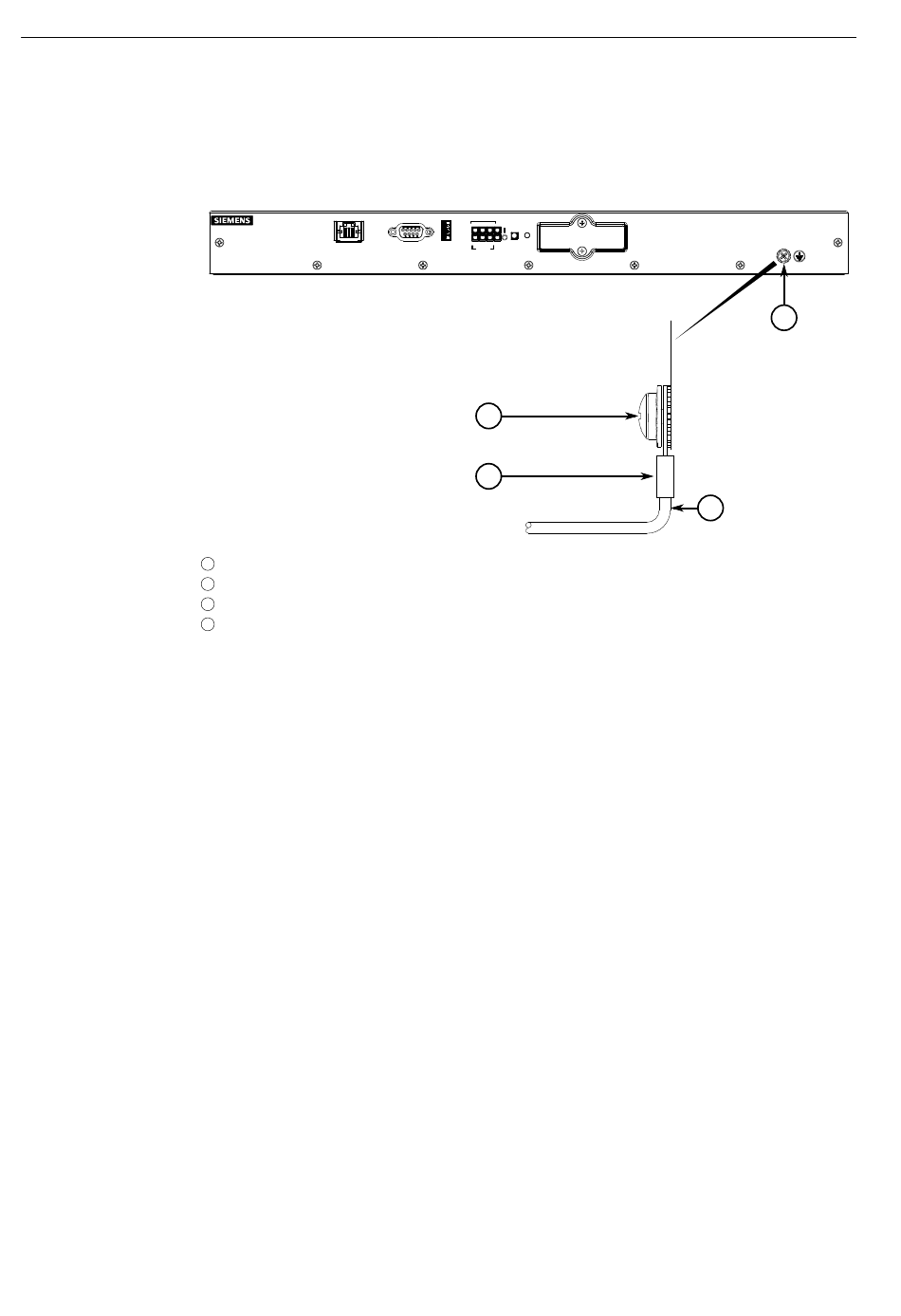

Figure 2.14
Ground Connection
Install the safety cover over the terminal block. This is mandatory for 48 VDC
and -48 VDC power supplies.
2.5.2 Connecting Low DC Power
1
2
Installing the Device
4
3
19
