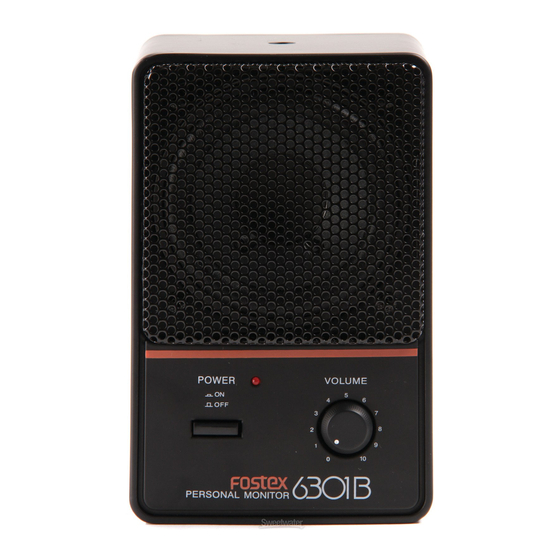

  • Page 1 Service Manual 6301B Personal Monitor Self-Powered...

  • Page 2: Safety Instructions

    CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightening flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 3 6301B. • For your information, this service manual complies to the 6301B with the followings are the serial number of 6301B. USA/CND 1. SPECIFICATIONS SPEAKER ( Internal ) Type Impedance Efficiency AMPLIFIER Normal Input Level...

  • Page 4: Parts List & View

    4x12 Bzn 4x12 Bzn 4x8 Bzn 4x8 Bzn 4x12 Bzn 3x6 Czn 4x12 Bzn PTP WH 3x10 Bzn P 4x10 Bzn 4x12 Bzn 3x6 Czn 3x8 Ni...
  • Page 5 8216034000 Packing, Speaker 8220462100 Cover, Speaker, B3/X/E 8226050000 Button, Push, Power, B3/X/E 8226067000 Knob, Pot, B3/X/E 8210020100 Box, Speaker, B3/X/E (192631) 8216213002 Sound Absorbent, B3/X/E 8242041200 Trans, Power, 120V, B3/X/E 8242042001 Trans, Power, 220V/240V, B3/X/E 8242040200 Trans, Power, 100V, B3/X/E...
  • Page 6 6301B/BX/BE 3. PCB ASSY AND PARTS LIST PCB Assy PowerAmp 8274216000 Ref. No. Part No. C001 8232050471 C002 8232098105 C003, 004 8232097227 C005 8232095476 C006 8232026123 C007 8232026104 C008, 009 8232074000 C010 8232026103 C011, 012 8232133478 D001 8234001607 R001 8230004102 R002 8230004563 R004...
  • Page 7 PCB Assy JK2 8274210000 Ref. No. Part No. JK002 8245103000 PCB Assy VR 8274215000 Ref. No. Part No. VR001 8240212002 PCB Assy LED 8274214000 Ref. No. Part No. D002 8234006400 PCB Assy TRANS 8274209000 Ref. No. Part No. R031, 032 8230004512 R034 8230004102...
  • Page 8 6301B/BX/BE 4. PATTERN DRAWING V- V+ S G TRANS 6301-106 6301-103 V- V+ S G G SPK TO...
  • Page 9 6301B 6301-104 50KA 6301-102 AC POWER IN 6301-101 +VCC1 220/35 TDA2050 1/50 470P 220/35 -VCC1 1.2K 47/16 +VCC1 4700/35 PGND1 4700/35 -VCC1 6301-103 EXT SP 0.01 PGND1 0.012 SGND1 +VCC1 6301-105 2.2K POWER LED PGND1 SGND1...
  • Page 10 6301-106 6301BX 5.1K WIPT 5.1K BALANCE INPUT 6301-102 CN2/W26 SGND SGND SGND +VCC UNBALANCE SGND INPUT 15B2 47/25 15B2 SGND 47/25 -VCC AC POWER IN 6301-104 50KA 6301-101 3.9K +VCC 3.9K 3.9K 4560 4560 -VCC SGND 10/16 +VCC1 220/35 TDA2050 1/50 470P 220/35...
  • Page 11 6301BE 6301-102 BALANCE INPUT WIPT CN2/W26 10/16 SGND 10/16 SGND SGND UNBALANCE INPUT +VCC SGND 15B2 47/25 15B2 SGND 47/25 -VCC AC POWER IN 6301-104 50KA 6301-101 3.9K +VCC 3.9K 3.9K 4560 4560 -VCC SGND 10/16 +VCC1 220/35 TDA2050 1/50 470P 220/35 0.01...
  • Page 12 FOSTEX CORPORATION 3-2-35 Musashino, Akishima, Tokyo, Japan 196-0021 FOSTEX CORPORATION OF AMERICA 15431 Blackburn Ave., Norwalk, CA 90650, U.S.A. © PRINTED IN JAPAN FEB 1999 8288779000...
