Fostex 6301B Owner's Manual

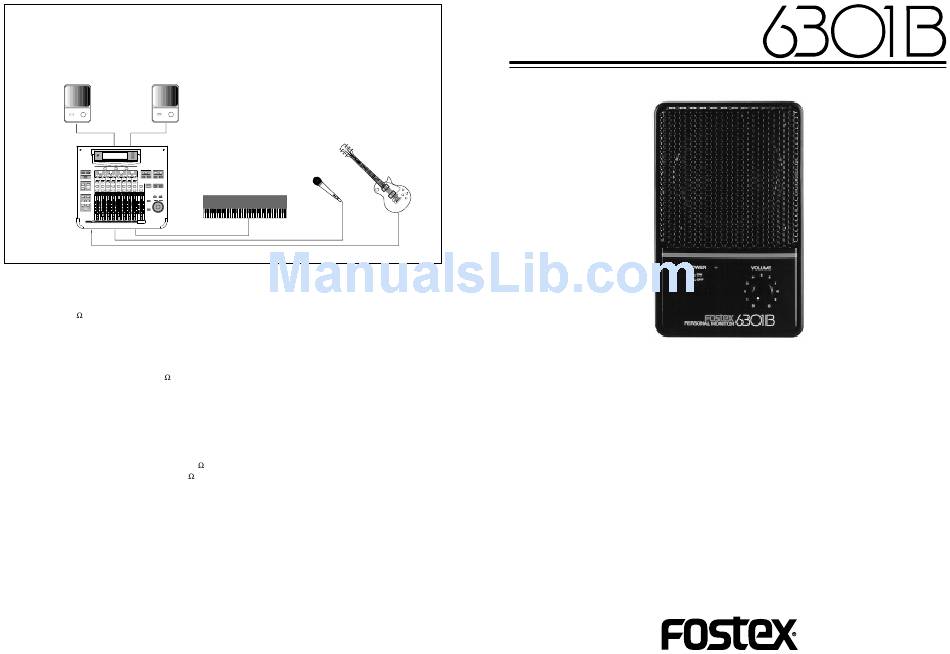

Typical Connections
In most applications, line level signals from
mixers such as the FOSTEX Multitracker
will be used to drive the 6301B Personal
Monitor.
6301B
METER
OL
-3
-6
-9
-18 -12
-24
-36
-40
ST BUSS/SOLO L R
Mixing console
PAGE SELECT
1-8 ANALOG IN 9-16 ADAT IN 17-20 EFF RTN
SETUP EQ/LO EQ/LO-MID EQ/HI-MID EQ/HI-MID SELECTED EQ EFF EDIT
SYSTEM MIDI GAIN GAIN GAIN GAIN EQ ON EFF 1 EFF 2
EQ LIBRARY EFF LIBRARY
CURRENT SCENE STATUS FREQ Q FREQ Q FREQ Q FREQ Q RECALL STORE RECALL STORE
PAN PAN PAN PAN PAN PAN PAN PAN
EQ EDIT EQ EDIT EQ EDIT EQ EDIT EQ EDIT EQ EDIT EQ EDIT EQ EDIT
KEY MODE
ROUTING/ PAIR/
PHASE GROUP REC BUSS SCENE MEMORY
SOLO SOLO SOLO SOLO SOLO SOLO SOLO SOLO SOLO SOLO RECALL STORE
MMC SEND
CHANNEL/
CH VIEW METER
ON ON ON ON ON ON ON ON ON
FADER MODE
AUX1 AUX2 /-1 +1/
AUX3 AUX4 EXIT
+10 +10 +10 +10 +10 +10 +10 +10 0 DATA
ADD.AUX 0 0 0 0 0 0 0 0
EFF1 EFF2 -10
-10 -10 -10 -10 -10 -10 -10 -10 -20
-30 ENTER
CHANNEL -20 -20 -20 -20 -20 -20 -20 -20
-40
-30 -30 -30 -30 -30 -30 -30 -30
-40 -40 -40 -40 -40 -40 -40 -40 -60
- - - - - - - - -
ANALOG IN ANALOG IN 1 2 3 4 5 6 7 8
ADAT IN 9 10 11 12 13 14 15 16 MASTER
EFF R EFF RTN TN 17 18 19 20
Spesifications
Speaker section
Type 10cm full range single cone
Impedance 4
Output sound 84dB (W/m)
pressure level
Frequency range 80Hz ~ 13kHz
Amplifier section (EXT SP jack)
Output Higher than 10W RMS (8 load)
Freq. range 20Hz ~ 50kHz (0dB, -3dB)
Distortion 0.05% at 1W output
Residual noise -70dBV (0.3mV)
Minimum input Unbalanced Type: -6dBV (0.5V RMS)
sensitivity (for Balanced Type: +4dBm (1.2V RMS)
maximum
output)
Input impedance Unbalanced Type: Higher than 20k
Balanced Type: Higher than 10k
Mains power 120VAC 60Hz (USA/Canada) 33W
230V~ 50/60Hz (Europe) 33W
240V~ 50Hz (U.K./Australia) 33W
Dimensions 188 (H) x 120 (W) x 118 (D) mm
Weight
3.0kg (6.6 Ibs)
Rating and physical appearance subject to change without prior
notice.
FOR HOUSEHOLD USE ONLY.
FOSTEX CO.
3-2-35, Musashino, Akishima-shi, Tokyo, Japan 196-0021
FOSTEX AMERICA
15431, Blackburn Ave., Norwalk, CA 90650, U.S.A.
Connections Typiques
Dans la plupart des applications seront
connectes des signaux au niveau ligne tels ´
qu'issus de melangeurs ou l'enregistrour ´
multipistes de FOSTEX.
6301B
Microphone
Keyboard
Spesifications
Haut Parleur (Interne)
Type: 10cm range bande
Impedance: 4 ohms
´
Niveau d'Entree Nominal:-10dBv
Bande Passante: 80Hz - 13kHz
Amplificateur
Puissance de Sortie: > 10W RMS (sous 8 ohms)
Bande Passante: 20Hz ~ 50kHz, 0dB, -3dB
Distortion: 0.05% (a 1W)
Bruit de Fond: -70dBv (0.3mV)
Sensibilite Mini: Non-balancee Type: -6dBV
(0.5V RMS)
´
Balancee Type: +4dBm (1.2V
RMS)
Impedance d'Entree: Non-balancee Type: > 20k
ohms
´
Balancee Type: > 10k ohms
Alimentation: 120VAC 60Hz (USA/Canada) 33W
230V - 50/60Hz (Europe) 33W
240V - 50Hz (R.U./Australie) 33W
Dimensions: 188 (H) x 120 (L) x 118 (P) millim.
Poids:
3kg
Les caractenstiques et I'apparence physique sont sujettes a modi-
fications sans preavis. ´
USAGE DOMESTIQUE SEULEMENT.
© PRINTED IN CHINA MAY 2004 8288333200
Guitar
Owner's Manual

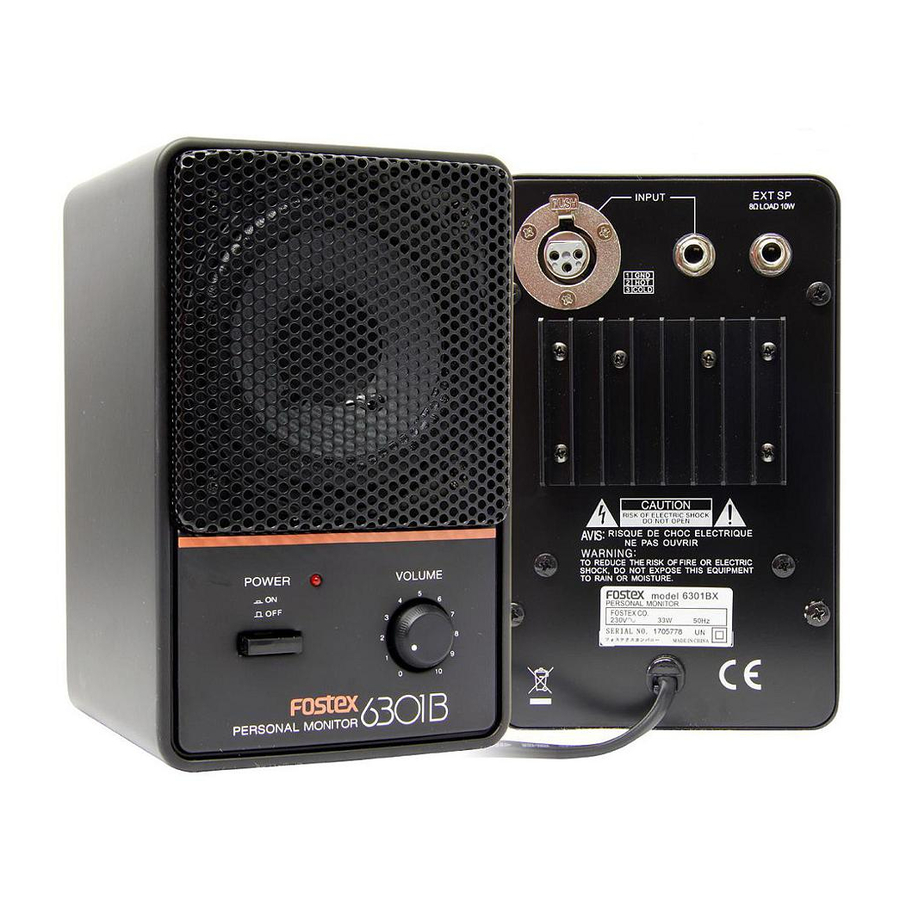

Fostex Model 6301B Personal Monitor
Speaker can perfectly handle a wide variety
´
of monitoring applications. It can monitor any
level of line signals. The Model 6301B can
be directly connected to the outputs of tape
´
recorders and electronic musical instru-
ments, or through recording mixers and
multitrackers. There are Two Versions in the
Model 6301B. The one is the Balanced Type
equipped with both 1/4 inch Phone Jack and
Cannon Type Jack. The other one is the Un-
balanced Type equipped with 1/4 inch Phone
`
Jack only.
(403522)
Model
`
Modele
PERSONAL MONITOR
Manuel d'Utilisation
Le haut-parleur de controle personnel
modele 6301B de Fostex est parfaitement `
´ ´
adapte a un large eventail d'applications `
^
controle. II est capable de capter tout niveau
de signaux de ligne. Le modele 6301B peut
^
etre directement raccorde a la sortie de
magnetetophones et d'instruments de ´
musique electroniques ou via des tables de ´
mixage et des systemes multipistes. Le `
modele 6301B existe en deux versions. La `
premiere version est le type compense avec
`
price casque 1/4 pouce et prise type encastre.
L'autre version est le type non compense avec
prise casque 1/4 pouce uniquement.
Self-Powered
^
`
´ `
´
´
´
