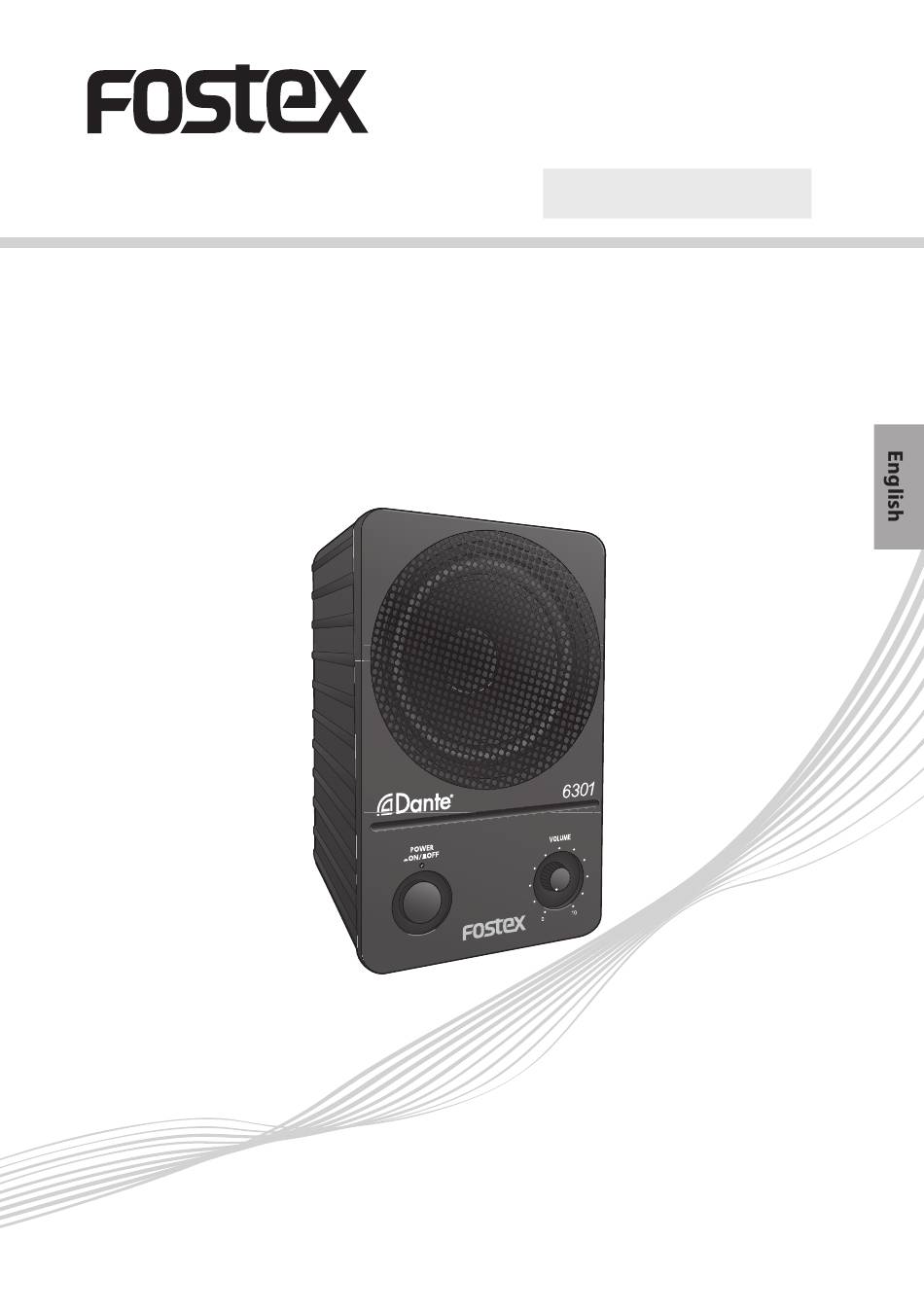

- Page 1 Owner's Manual Active Speaker 6301DT Thank you for purchasing this Fostex product. This manual provides instructions for basic use of the unit. Read this before using the unit for the fi rst time. © FOSTEX COMPANY All Right Reserved...
- Page 2 FCC and ICES-003 requirements. Changes or to radio or television reception, which can be determined by turning the modifications not expressly approved by Fostex Company for compliance equipment off and on, the user is encouraged to correct the interference by could void the user’...
- Page 3 • Equipped with a switching power circuit compatible with 100 V to 240 V AC power supplies. • 6301DT is designed to output either or both of any two-channel digital signals out of Dante network signals. Supported sampling frequencies: 44.1/48/88.2/96 kHz •...
-
Page 4: Part Names And Functions
[ANALOG IN] terminal is output from 6301DT. [INPUT SEL] switch Selects the audio channel output from 6301DT when Dante is being input. Selects 1ch only (1), 1ch+2ch (1+2), and 2ch only (2). -
Page 5: Specifications
A grounding type plug has a third grounding prong. The third prong are provided for your safety. If the provided plug does not fit into your AC outlet, consult an electrician for replacement of the obsolete outlet. Specifications 6301DT Type Sealed powered speaker system Speaker 100 mm cone-shaped, full-range speaker ×... -
Page 6: Dimensional Drawings
Dimensional drawings 120.0 113.0 10.0... -
Page 7: Optional Accessory
Ask a professional to fix the unit to a wall using firmly using the screws supplied with EB-6301. the bracket. Otherwise the unit may fall and cause accidents Fostex is not responsible for accidents and leading to injuries and damage. casualties caused by using the bracket. 6301DT... - Page 8 „ Accessories of EB-6301 • Mounting screw × 2 • Rubber washer (with no grooves) × 2 • Rubber washer (with grooves) × 2 „ Dimensional drawings of EB-6301 2x M6(Pitch=1.0) 4x Ø5.5 Ø10.0 70.0 45° 130.0±0.2 +0.40 194.0 -0.25 R23.0 14x R8.0 Ø14.4...
- Page 9 „ Attaching EB-6301 1 Remove the screws on the top and bottom of the 6301DT. 2 Attach the rubber washers (with no grooves) to the top and bottom of the unit. 3 Fit the rubber washers (with grooves) onto the mounting screws.
- Page 10 NAME: Era in Ear (Comsumer Products Only) Website: http://www.hifitalo.fi Email: info@blade.ru Website: http://www.blade.ru/ Fostex Company, a division of Foster Electric Company, Limited 1-1-109, Tsutsujigaoka, Akishima City, Tokyo, 196-8550, Japan TEL: (+81) 42 546 4974 © PRINTED IN CHINA DEC. 2020...
