Summary of Contents for Vari Lite VL800 EVENTPAR WW

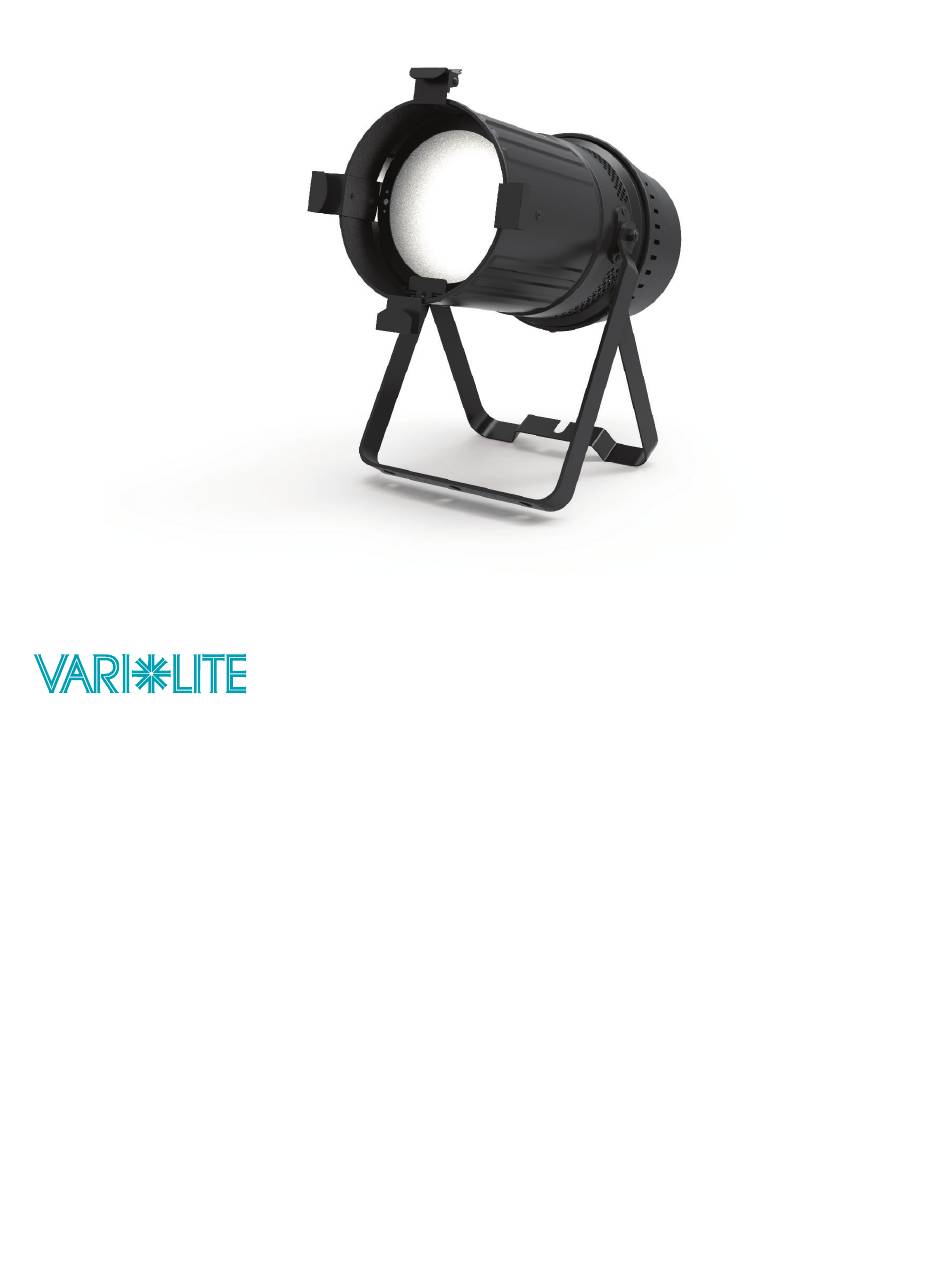

- Page 1 VL800 EVENTPAR QUICK START GUIDE...
- Page 2 The document provides installation and operation instructions for the following products: • VL800 EVENTPAR WW Read all instructions before installing or using this product. Retain this manual for future reference. Additional product information and descriptions may be found on the product specifi cation sheet.
- Page 3 QUICK START GUIDE INSTALLATION AND SETUP MOUNTING The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is fi rmly fi xed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight.
- Page 4 QUICK START GUIDE QUICK REFERENCE DMX MAPS TABLE 1. 16-BIT CHANNEL MODE CHANNEL PARAMETER Intensity high Intensity low Strobe speed Strobe control Control channel TABLE 2. 8-BIT CHANNEL MODE CHANNEL PARAMETER Intensity Strobe speed Strobe control Control channel TABLE 3. SINGLE CHANNEL MODE CHANNEL PARAMETER...
- Page 5 QUICK START GUIDE IMPORTANT INFORMATION WARNINGS AND NOTICES When using electrical equipment, basic safety precautions should always be followed including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS. • Do not mount near gas or electric heaters. • Equipment should be mounted in locations and at heights 2000851 where it will not readily be subjected to tampering by unauthorized personnel.
