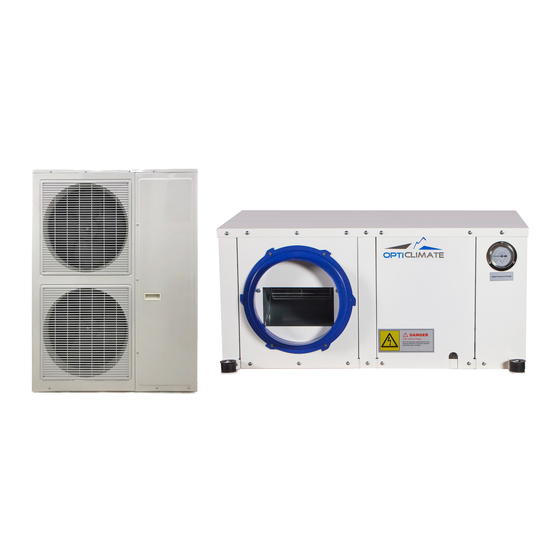

OPTIMAL CLIMATE CONTROL
OPTICLIMATE
PRO3 EN PRO4 SERIES
Usermanual
OptiClimate is a registered trademark of
airSupplies
PLEASE READ THE FOLLOWING INFORMATION
CAREFULLY BEFORE USING THE UNIT
High temperature safeguard on page 7
Delete alarm history on page 12
Dehumidify without cooling pro4 on page 12
OPTICLIMATE.NL
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO3 Series and is the answer not in the manual?

Questions and answers

Related Manuals for OPTICLIMATE PRO3 Series

Summary of Contents for OPTICLIMATE PRO3 Series

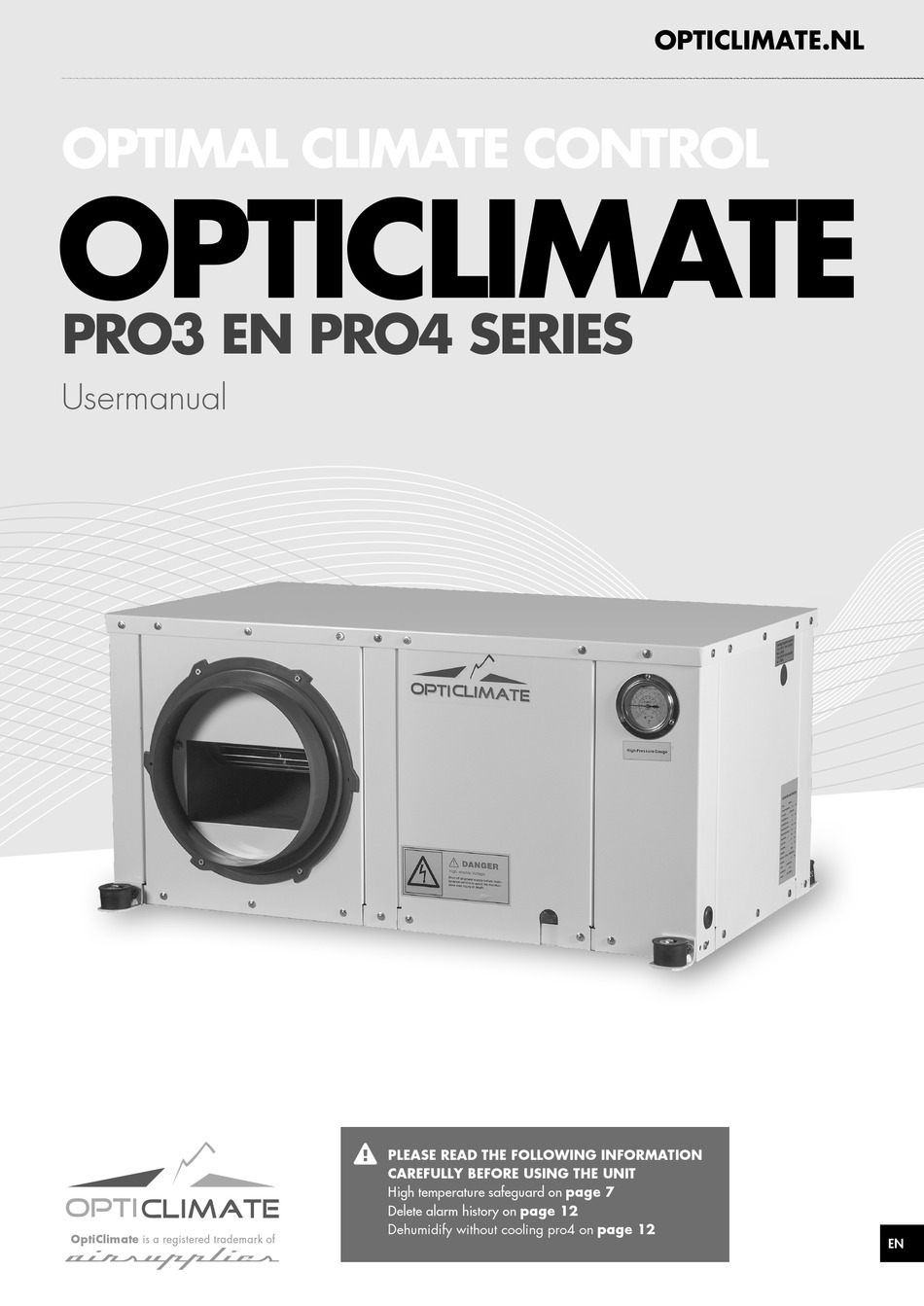

  • Page 1 PRO3 EN PRO4 SERIES Usermanual  PLEASE READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THE UNIT High temperature safeguard on page 7 Delete alarm history on page 12 Dehumidify without cooling pro4 on page 12 OptiClimate is a registered trademark of airSupplies...
