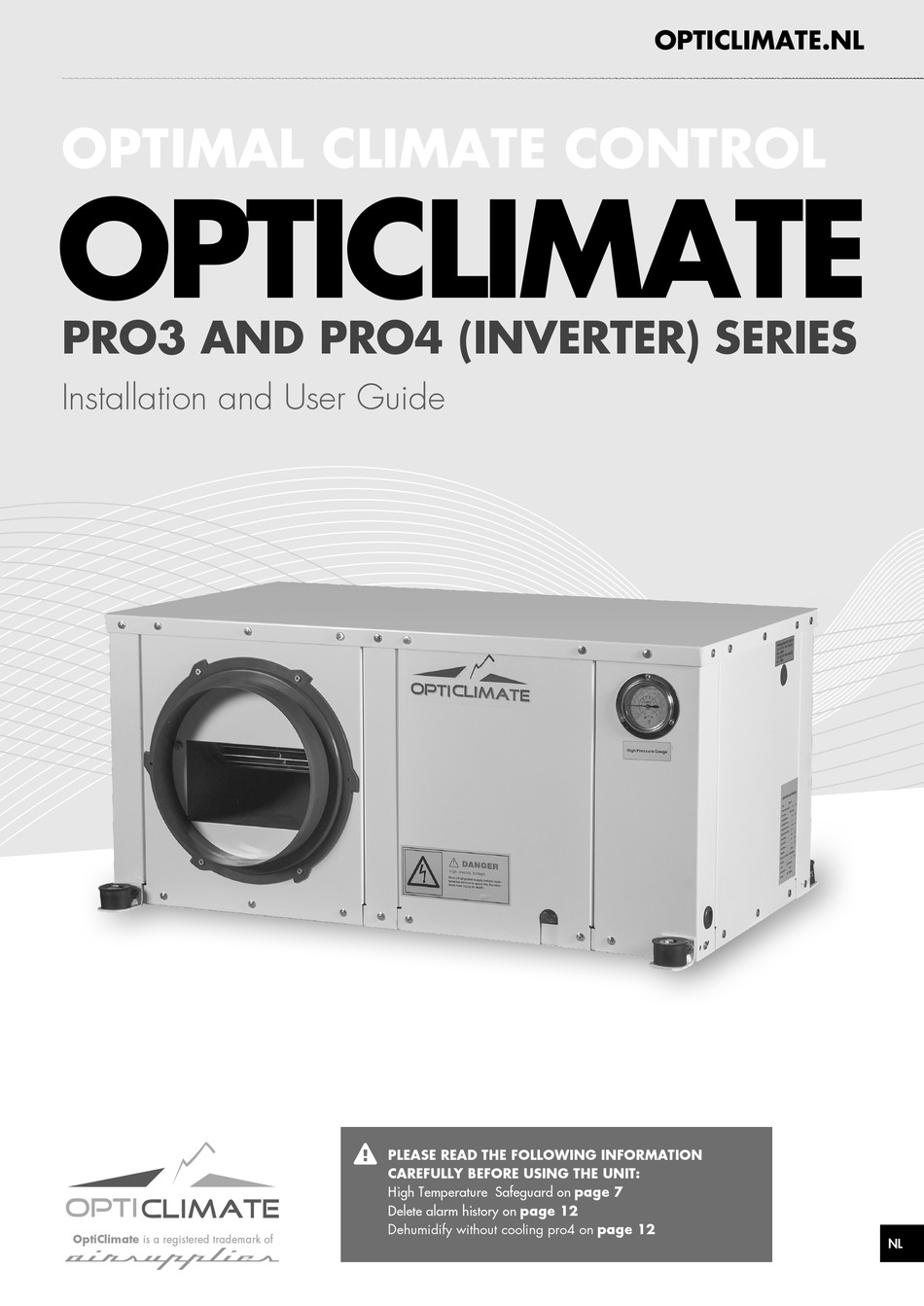

OPTIMAL CLIMATE CONTROL
OPTICLIMATE
PRO3 AND PRO4 (INVERTER) SERIES
Installation and User Guide
OptiClimate is a registered trademark of
airSupplies
PLEASE READ THE FOLLOWING INFORMATION
CAREFULLY BEFORE USING THE UNIT:
High Temperature Safeguard on page 7
Delete alarm history on page 12
Dehumidify without cooling pro4 on page 12
OPTICLIMATE.NL
NL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OPTICLIMATE PRO3 Series
Summary of Contents for OPTICLIMATE PRO3 Series
- Page 1 Installation and User Guide PLEASE READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THE UNIT: High Temperature Safeguard on page 7 Delete alarm history on page 12 Dehumidify without cooling pro4 on page 12 OptiClimate is a registered trademark of airSupplies...
-
Page 2: Installation
Installation of insulating springs The rubber feet with which the OptiClimate is placed on the pallet are use to suspend the unit by means of thread ends. A thread end, a large washer and a nut must be fitted. (not supplied) -
Page 3: Electrical Connections
The automatic moisture meter should be hung in the room and may NOT be covered. The light cell in the automatic moisture meter automatically switches the OptiClimate from day to night mode. Room temperature sensor The compartment also has a room temperature sensor, which is already connected to the printed circuit-board. - Page 4 Power cables and circuit breakers Inverter models Six different OptiClimate models are available. For your safety and the safety of the OptiClimate, the following specifications should be observed when connecting the power supply: use the circuit breakers (MCB) and cable...
- Page 5 High temperature safeguard Using this safeguard, the OptiClimate can switch off the heat sources (e.g. lamps) when the temperature in a room becomes too high. The unit has a terminal that can be connected to the timer of a control panel, for example.
-
Page 6: Putting Into Operation
If you use well water, you can install a filter, but such a solution requires maintenance. A normal 22mm tap water connection has sufficient capacity to continuously cool three or four These are 3 or 4 OptiClimate 15000 units. - Page 7 12:00 AM equals 00:00 The automatic moisture meter in the pro3 series has a light cell, which switches to the day mode when it sees the light is on and to the night mode when the light is off. Only the Day/Night temperatures have to be set, the rest is done automatically.
-
Page 8: Settings (Setup)
PUTTING INTO OPERATION SETTINGS (SETUP) 9) Reading function for the temperature sensors 11) Water Leakage safeguard Press the key and the sensor will show the temperatures. The number and temperature of the sensors will show in the If there is water on the ground - due for example to an incorrectly mounted coupling or a blocked sewer - and the water makes contact ... - Page 9 D:07 Dual Room (cooling two rooms 12h by 12h) on/off. Depending on the model, an OptiClimate has 2 or 3 heating elements. The heating elements of 1-phase systems are connected to 1 phase and the heating elements of 3-phase systems are divided over all phases.
-
Page 10: Inspection And Maintenance
SETTINGS (SETUP) FAULT ANALYSIS AND ERROR MESSAGES D:12 Minimum adjustable heating temperature D:27 Resting time of the compressor Using this setting, you can change the minimum adjustable heating temperature. Using this setting, you can adjust the resting time between Compressor Off and Compressor On. The adjustable values in D:12 are: default = 16°C, max. -
Page 11: Fault Code List
Error 04 = Ambient temperature is too low Error 18 = Outlet air sensor faulty or not connected The unit is placed in a cold environment, causing the risk of freezing. The room in which the OptiClimate is installed should be warmer than 4°C. -
Page 12: Fault Code Overview
Plenum box This box can be installed at the backside of the OptiClimate, so that the unit can be placed outside the room. One to three hoses can be connected to the plenum box to suck out the warm air from the room. Always measure the E:07 Return water temperature sensor not connected dimensions of the suction hoses as large as possible. - Page 13 Amsterdam, the Netherlands www.opticlimate.nl MADE IN HOLLAND OptiClimate is a registered trademark of airSupplies V04052016...
