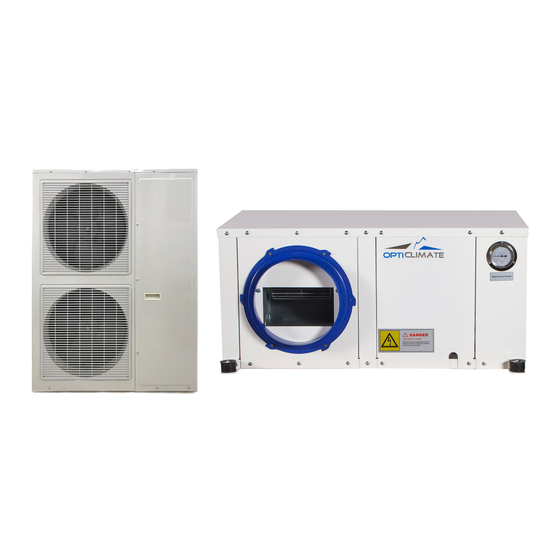

OPTICLIMATE PRO3 Series Installation And User Manual
Hide thumbs
Also See for PRO3 Series:
- Instructions manual (26 pages) ,
- Installation and user manual (24 pages) ,
- User manual (14 pages)
Advertisement
OPTIMAL CLIMATE CONTROL
OPTICLIMATE
PRO3 AND PRO4 SPLIT (INVERTER) SERIES
Installation and User Guide
OptiClimate is a registered trademark of
airSupplies
PLEASE READ THE FOLLOWING INFORMATION
CAREFULLY BEFORE USING THE UNIT:
High Temperature Safeguard on page 7
Do not bend the cooling coils! page 9
Delete alarm history on page 12
Dehumidify without cooling pro4 on page 12
OPTICLIMATE.NL
NL
Advertisement
Table of Contents
Related Manuals for OPTICLIMATE PRO3 Series
Summary of Contents for OPTICLIMATE PRO3 Series
- Page 1 PLEASE READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THE UNIT: High Temperature Safeguard on page 7 Do not bend the cooling coils! page 9 Delete alarm history on page 12 Dehumidify without cooling pro4 on page 12 OptiClimate is a registered trademark of airSupplies...
-
Page 2: Installation
Installation of insulating springs The rubber feet with which the OptiClimate is placed on the pallet are use to suspend the unit by means of thread ends. A thread end, a large washer and a nut must be fitted. (not supplied) -
Page 3: Electrical Connections
The automatic moisture meter should be hung in the room and may NOT be covered. The light cell in the automatic moisture meter automatically switches the OptiClimate from day to night mode. Room temperature sensor The room temperature sensor should be suspended in the space to be cooled. - Page 4 Power cables Inverter models Five different OptiClimate models are available. For your safety and the safety of the OptiClimate, the following specifications should be observed when connecting the power supply: use the circuit breakers and cable thickness Connecting to the terminal strips left corner...
-
Page 5: Installing Outdoor Unit
INSTALL / CONNECT THE OUTDOOR UNIT High temperature safeguard Using this safeguard, the OptiClimate can switch off the heat sources (e.g. lamps) when the temperature in a room Installing outdoor unit becomes too high. The unit has a terminal that can be connected to the timer of a control panel, for example. The feed wire running to the switch in the timer should be interrupted for this purpose. -
Page 6: Putting Into Operation
WATER-SIDED CONNECTIONS PUTTING INTO OPERATION Discharge of the condensation water Remote Control The unit will also dehumidify the air during cooling. The moisture extracted from the air comes into the condensation drain. The condensation drain is connected to a sturdy garden hose or a pipeline that does not bend easily. The condensation water drips from the hose, which can be connected to the drain pipe. - Page 7 12:00 AM equals 00:00 The automatic moisture meter in the PRO3 series has a light cell, which switches to the day mode when it sees the light is on and to the night mode when the light is off. Only the Day/Night temperatures have to be set, the rest is done automatically.
-
Page 8: Settings (Set-Up)
D:01 Switching the heating elements on/off Depending on the model, an OptiClimate has 2 or 3 heating elements. The heating elements of 1-phase systems are connected to 1 phase and the heating elements of 3-phase systems are divided over all phases. - Page 9 Using this setting, you can calibrate the cooling block temperature sensor. The settings in D:24 are: default = 0°C, max. The clock of the OptiClimate (OC) will operate these make-and-break contacts and the clock/timer of the OC can replace the clock on the control panel. The lamps will operate synchronous with the cooling mode of the OC.
-
Page 10: Inspection And Maintenance
INSPECTION AND MAINTENANCE FAULT ANALYSIS AND ERROR MESSAGES D:25 Temperature of compensating refrigerant return outdoor unit D:38 Celsius / Fahrenheit With this option, the temperature sensor can measure the temperature of the return gas to be calibrated from the 0=C/1=Fh outdoor unit. -
Page 11: Fault Code List
Error 04 = Ambient temperature is too low Error 20 = Temperature sensor AI08 not connected or is defective (no log) The unit is placed in a cold environment, causing the risk of freezing. The room in which the OptiClimate is installed should be warmer than 4°C. -
Page 12: Fault Code Overview
E:07 Liquid/ return sensor not connected This box can be installed at the backside of the OptiClimate, so that the unit can be placed outside the room. One to three hoses can be connected to the plenum box to suck out the warm air from the room. Always measure the dimensions of the suction hoses as large as possible. - Page 13 Amsterdam, the Netherlands www.opticlimate.nl MADE IN HOLLAND OptiClimate is a registered trademark of airSupplies V04052016...
