Power Brush - Gtech MULTI ATF036 Operating Manual

Power brush

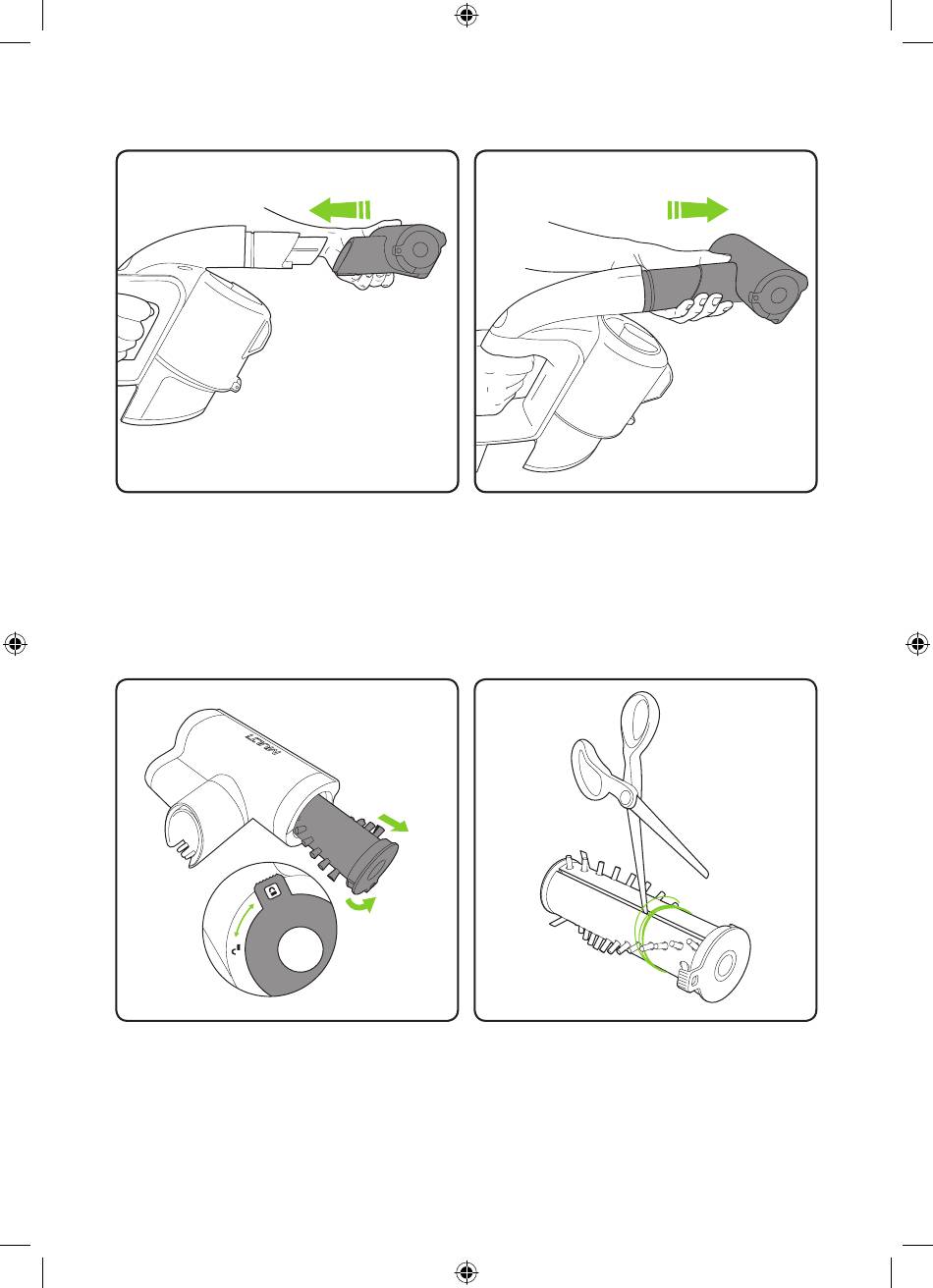

Make sure the terminals on the Power
Brush and Active nozzle are correctly lined
up and gently push the Power brush onto
the Active nozzle. The battery should be
removed when changing attachments.
To clean the brush bar, first remove the
power brush. Rotate the latch from the
lock to the unlock position and pull out the
brush bar.
16
2859_System_TE_manual_update_aw.indd 16
Gently pull the Power Brush from the Multi
to remove. The battery should be removed
when changing attachments.
To remove hair from the brush bar, run an
open pair of scissors down the groove to
cut the hair, then pull it out. Never operate
the power brush without the brush bar in.
