Gtech MULTI ATF036 Operating Manual page 12

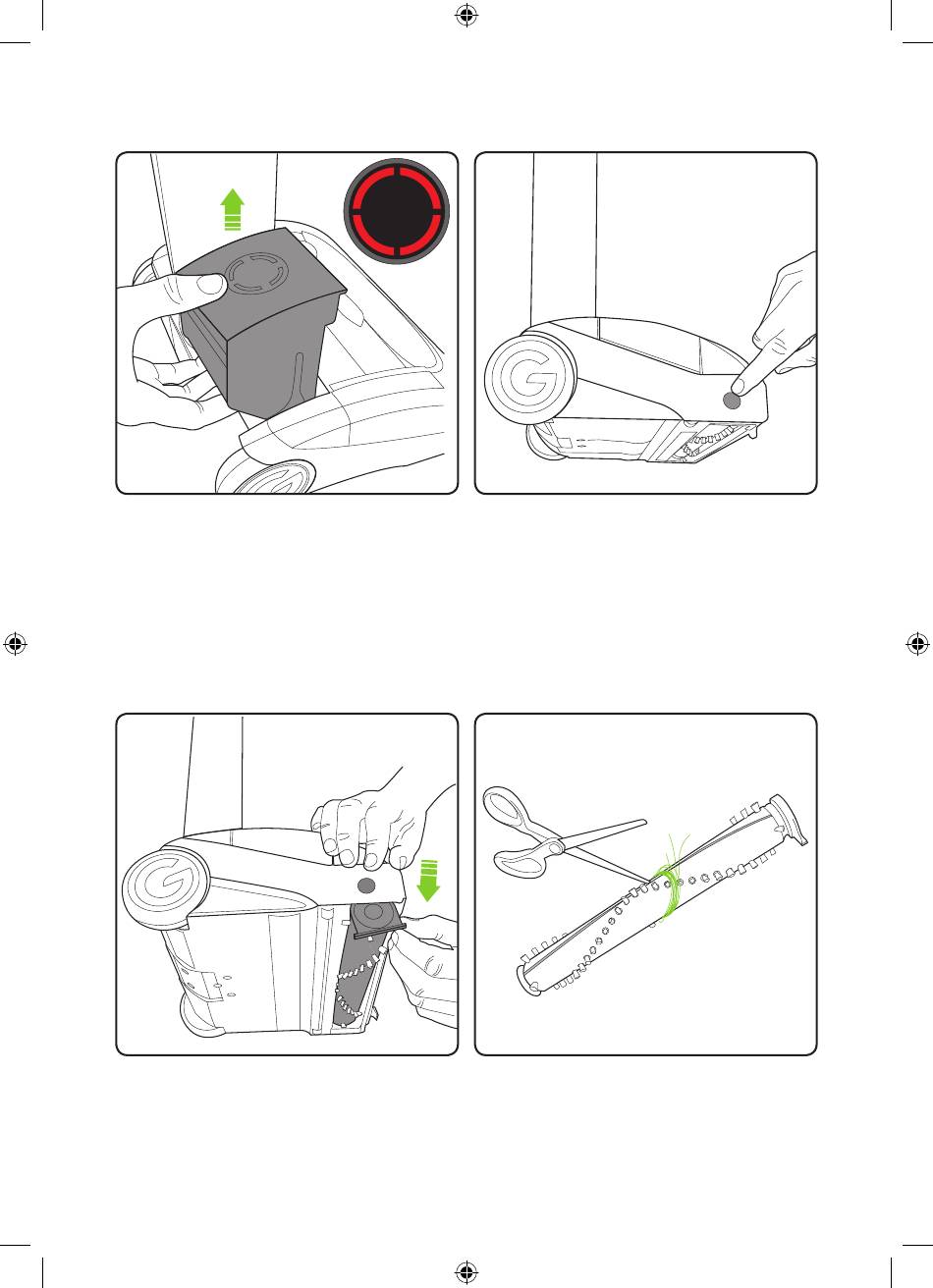

Removing and cleaning the brush bar
If the brush bar jams during use, the
AirRam will stop and the LEDs will appear
red. Before checking for a blockage,
remove the battery.
The brush bar can now be removed,
starting at the button end.
12
2859_System_TE_manual_update_aw.indd 12
Rest the AirRam on its side and locate
the brush bar button on the right hand side.
Press the button inwards and then pull
the brush bar out from the bottom of
the AirRam.
To remove hair from the brush bar, run an
open pair of scissors down the groove to
cut the hair, then pull it out.
31/05/2018 13:24
