Configuring the IP address

The industrial managed switch is shipped with the default IP
address shown below:
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address
for the industrial managed switch, use the following
procedures:
Display of the current IP Address
1. At the "NS3552-8P-2S:/IP" prompt, type "configuration."
2. The screen displays the current IP address, subnet mask,
and gateway as shown in Figure 7 below.

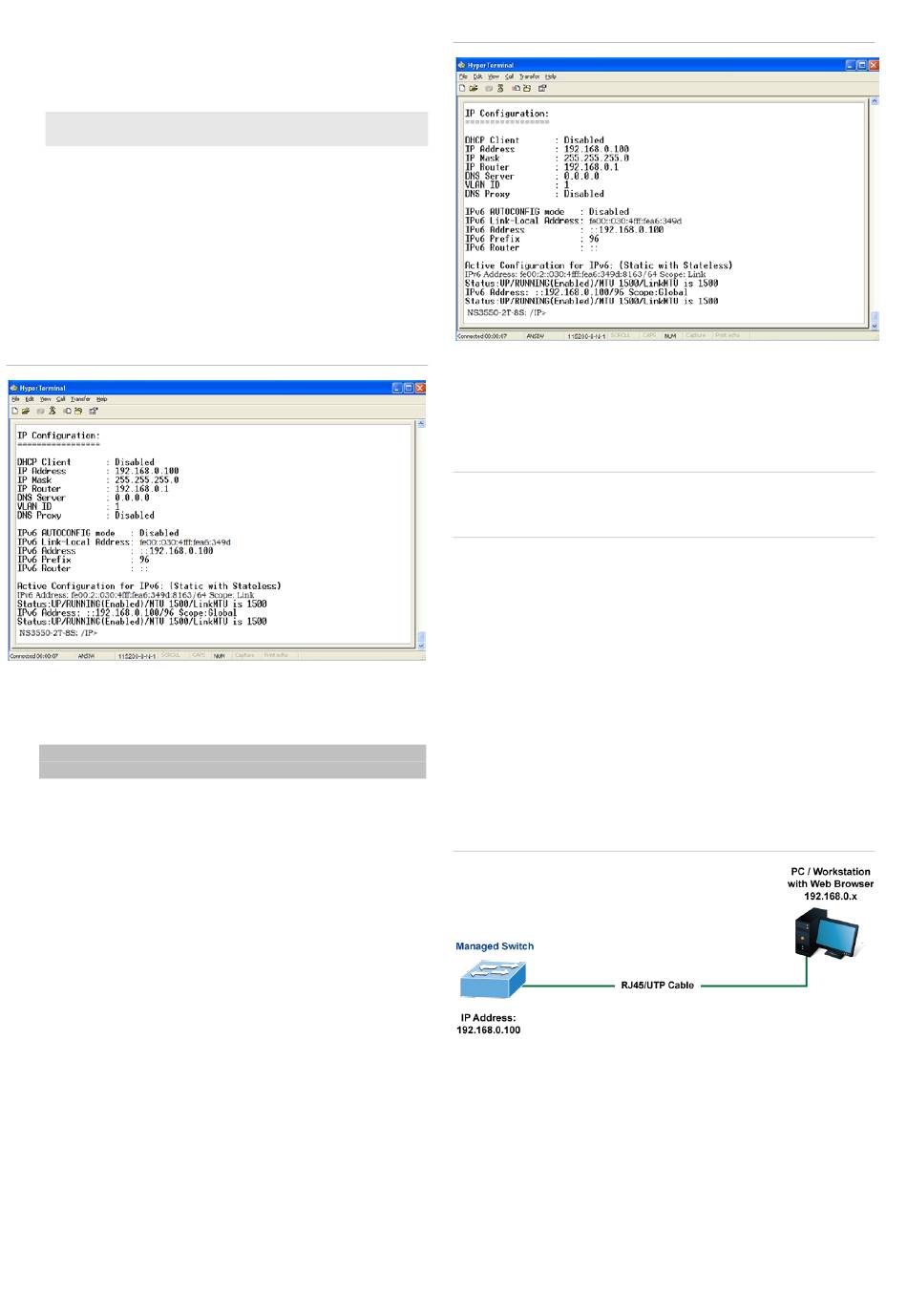

Figure 6: IP information screen
Configuration of the IP address
3. At the "NS3552-8P-2S:/IP" prompt, type the following
command and press Enter.
NS3552-8P-2S:/IP> setup 192.168.1.100 255.255.255.0
192.168.1.1
The previous command would apply the following settings
for the industrial managed switch.
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.1
VLAN ID: 1
4 / 5
Figure 7: Configuring the IP address screen
4. Repeat step 1 to check if the IP address has changed.
If the IP is successfully configured, the industrial managed
switch applies the new IP address setting immediately. Access
the web interface of the industrial managed switch through the
new IP address.
Note: If unfamiliar with the console command or the related
parameter, type "help" in the console to obtain the Help
description.

Starting web management

The section describes how to start up the web management
function for the industrial managed switch. Note that the
industrial managed switch is configured through an Ethernet
connection. Ensure that the manager computer is set to the
same IP subnet address.
For example, if the default IP address of the industrial
managed switch is 192.168.0.100, then the manager computer
should be set to 192.168.0.x (where x is a number between 1
and 254, except 100), and the default subnet mask is
255.255.255.0.
Figure 8: IP management diagram
Logging in to the industrial managed switch
1. Use the Internet Explorer 8.0 or later web browser and
type the IP address http://192.168.0.100 (the factory-
default IP address) to access the web interface.
2. When the following dialog box appears, enter the default
user name "admin" and password "admin" (or the
password you have changed before) as shown in Figure 9
on page 5.
