3. Use the screws to screw the wall-mount plate on the
industrial gigabit Ethernet switch.
4. Use the hook holes at the corners of the wall-mount plate
to hang the industrial gigabit Ethernet switch on the wall.
5. To remove the wall-mount plate, reverse the steps above.

Terminal setup

To configure the system, connect a serial cable to a COM port
on a PC or notebook computer and to RJ45 type serial
(console) port of the industrial managed switch. The console
port of the industrial managed switch is DCE already so that
you can connect the console port directly through a computer
without the need of null modem.

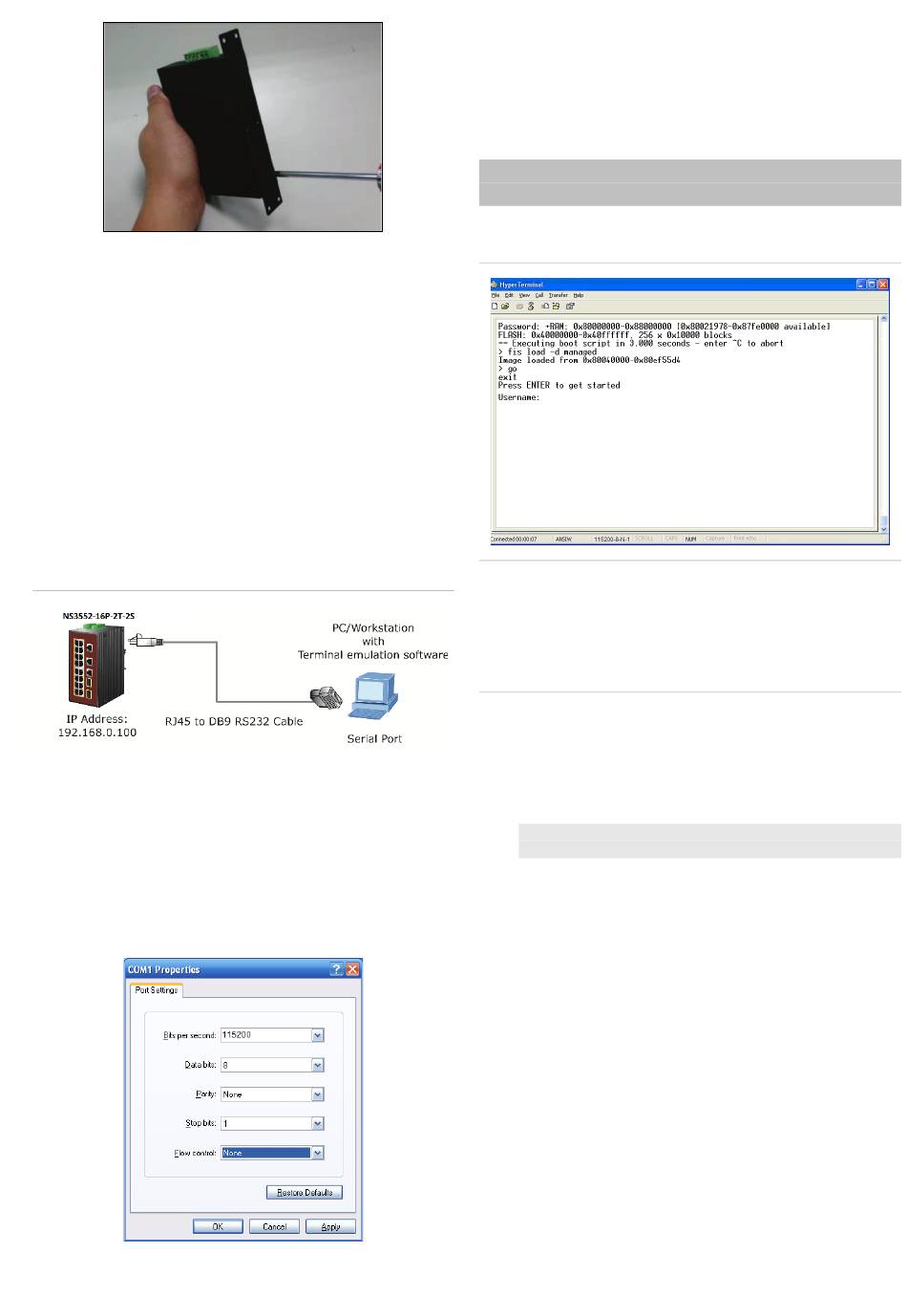

Figure 3: Managed industrial switch console connectivity
A terminal program is required to make the software connected
to the industrial managed switch. Windows' Hyper Terminal
program may be a good choice. The Hyper Terminal can be
accessed from the Start menu.
Click Start > Programs > Accessories > Hyper
1.
Terminal.
2. When the following screen appears, ensure that the COM
port is configured as shown below. Click OK when finished
with configuration.
P/N 1073222-EN • REV C • ISS 01FEB19
3. Log in to the console.
After the terminal has been connected to the device, power on
the industrial managed switch. The terminal displays "running
testing procedures".
When the following dialog box in Figure 4 below appears, type
the factory default user name "admin" and password "admin".
User name: admin
Password: admin
Figure 4: Console login screen
Note:
1. For security purposes, change and memorize the new
password after this first setup.
2. Only commands in lowercase letters are accepted in the
console interface.

Configuring the IP address

The industrial managed switch is shipped with the default IP
address shown below:
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address
for the industrial managed switch, use the following
procedures:
Display of the current IP Address
1. At the "#" prompt, type "show ip interface brief".
2. The screen displays the current IP address shown in
Figure 6 on page 4.
