Stack PD-V3 Installation Instructions

Installation Instructions STACK102 Installation Instructions
1) Provide 5V DC on pad 1 (4.75V-5.25V)
2) Provide DC ground onto PAD3
3) Connect PAD 2 (IF) to the µPC for signal processing
4) Operating temperature: -10-70° C
PAD1
PAD2
PAD3
NOTICE:
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry
Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
NOTICE:
Changes or modifications made to the equipment not expressly approved by Stack
may void the FCC / IC authorization to operate this equipment.
The use of the transceiver is authorized into mobile or fixed devices taking into
account the conditions listed below :
• OEM Integrator may be sure that the end user manual may not contain any
information about the way to install or remove the module from the final
product.

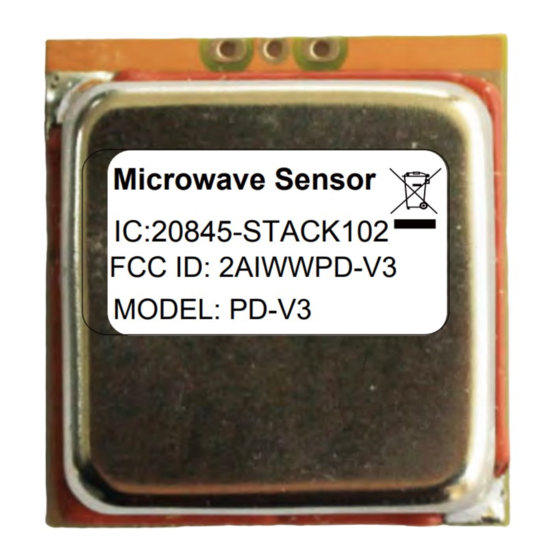

Microwave Sensor
