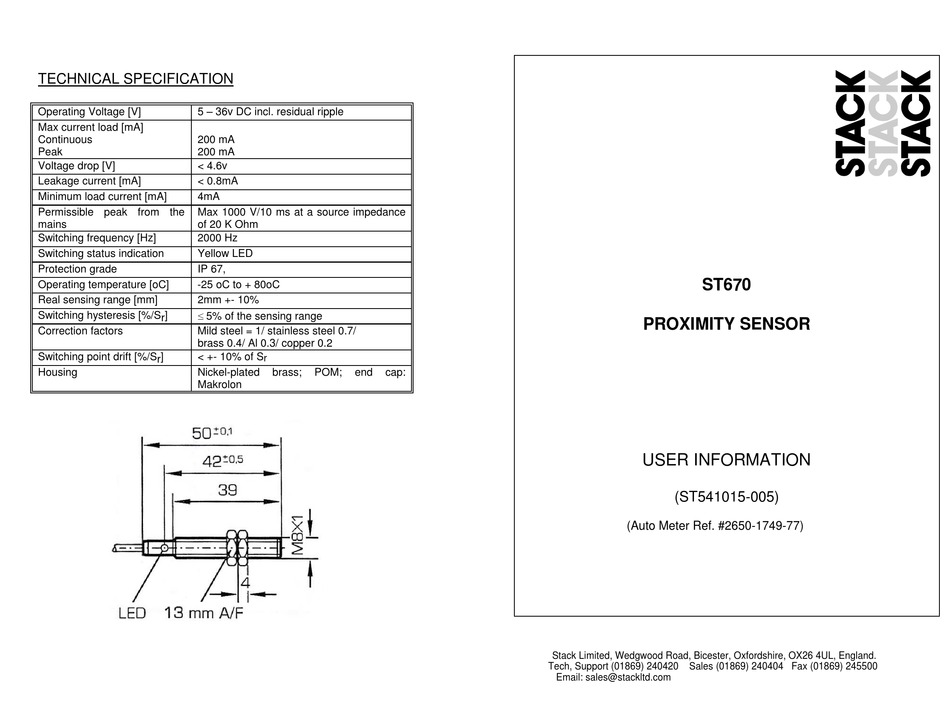

TECHNICAL SPECIFICATION
Operating Voltage [V]
5 – 36v DC incl. residual ripple
Max current load [mA]
Continuous
200 mA
Peak
200 mA
Voltage drop [V]
< 4.6v
Leakage current [mA]
< 0.8mA
Minimum load current [mA]
4mA
Permissible peak from the
Max 1000 V/10 ms at a source impedance
mains
of 20 K Ohm
Switching frequency [Hz]
2000 Hz
Switching status indication
Yellow LED
Protection grade
IP 67,
Operating temperature [oC]
-25 oC to + 80oC
Real sensing range [mm]
2mm +- 10%
5% of the sensing range
Switching hysteresis [%/S r ]
Correction factors
Mild steel = 1/ stainless steel 0.7/
brass 0.4/ Al 0.3/ copper 0.2
Switching point drift [%/S r ]
< +- 10% of S
Housing
Nickel-plated
Makrolon
r
brass;
POM;
end
cap:
ST670
PROXIMITY SENSOR
USER INFORMATION
(ST541015-005)
(Auto Meter Ref. #2650-1749-77)
Stack Limited, Wedgwood Road, Bicester, Oxfordshire, OX26 4UL, England.
Tech, Support (01869) 240420
Sales (01869) 240404 Fax (01869) 245500
Email: sales@stackltd.com
