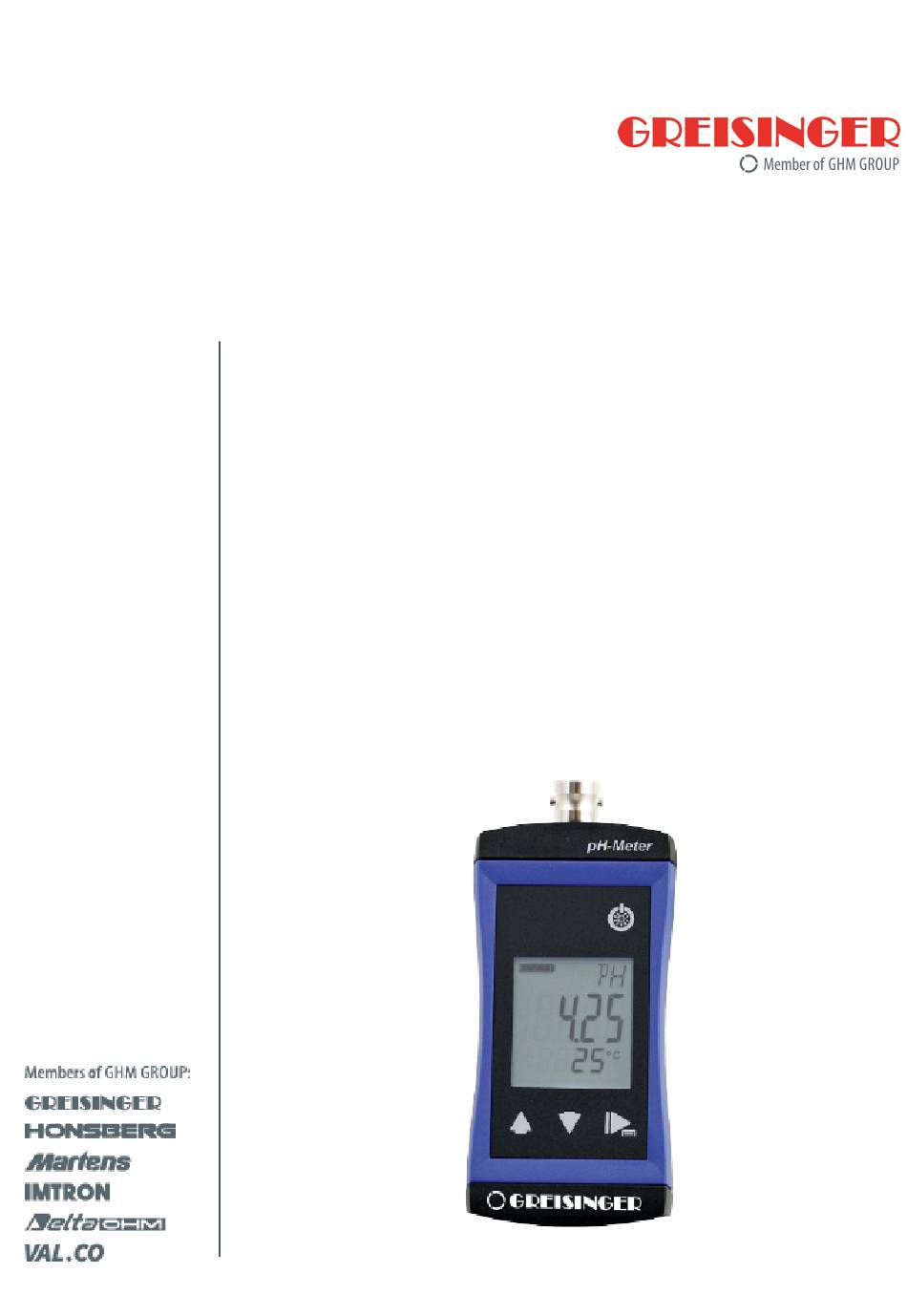

  • Page 1 Operating manual G 1500 pH measuring device...

  • Page 2: Table Of Contents

    Qualified personnel.......................... 8 Description ............................ 9 Scope of delivery .......................... 9 Functional description...........................  9 The product at a glance ........................ 10 The G 1500............................ 10 Display elements .......................... 10 Operating elements .......................... 10 Connections............................ 11 Bases for measurement ........................ 12 pH measurement ..........................
  • Page 3 Table of contents 7.2.3 Configuring parameters of the configuration menu................ 24 7.2.4 Adjustment of the measuring input .....................  25 Error and system messages...................... 27 Disposal.............................  29 Technical data...........................  30 Spare parts and accessories ...................... 31 Service ...............................  32 12.1 Manufacturer............................ 32 12.2 Repairs processing ..........................

  • Page 4: About This Documentation

    1 | About this documentation G 1500 1 About this documentation 1.1 Foreword Read this document carefully and familiarise yourself with the operation of the product before you use it. Keep this document ready to hand and in the immediate vicinity of the product so that it is available to the personnel/user for reference at all times in case of doubt.

  • Page 5: Further Information

    G 1500 About this documentation | 1 Instruction Tasks to be carried out by the personnel / user are represented as numbered instruc- tions. Adhere to the sequence of the specified instructions. Representation Shows an illustrative instruction or a configuration of the product.

  • Page 6: Safety

    2 | Safety G 1500 2 Safety 2.1 Explanation of safety symbols DANGER This symbol warns of imminent danger which can result in death, severe bodily injury, or severe property damage in case of non-observance. DANGER This symbol indicates danger for living tissue as well as a variety of materials, which can be damaged or destroyed when coming into contact with this chemical.

  • Page 7: Safety Instructions

    G 1500 Safety | 2 DANGER Incorrect area of application! In order to prevent erratic behaviour of the product, personal injury and property dam- age, the product must be used exclusively as described in the chapter Description [} p. 9] in the operating manual.

  • Page 8: Intended Use

    2 | Safety G 1500 CAUTION Erratic behaviour! On suspicion that the product can no longer be operated without danger, it must be decommissioned and prevented from recommissioning with appropriate labelling. The safety of the user can be impaired by the device if, for example, if it shows visible damage, it no longer works as specified or if it was stored for an extended period of time under unsuitable conditions.

  • Page 9: Description

    G 1500 Description | 3 3 Description 3.1 Scope of delivery Please check to ensure the completeness of the product after opening the package. You should find the following components: – Quick reference guide – Handheld measuring device, ready for operation, including batteries –...

  • Page 10: The Product At A Glance

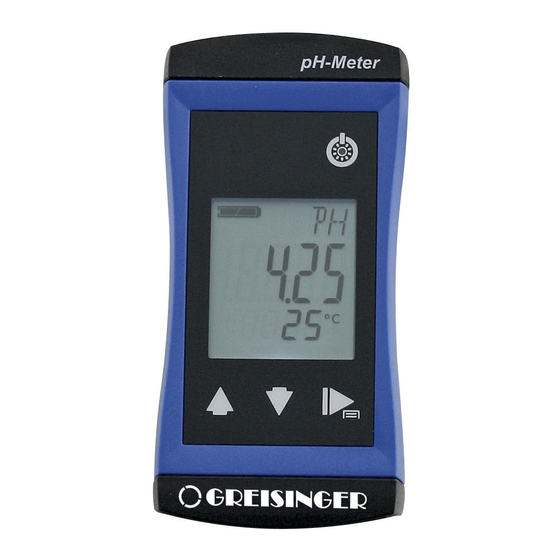

    4 | The product at a glance G 1500 4 The product at a glance 4.1 The G 1500 BNC connection LCD Display G 1500 GE 114 4.2 Display elements Display Battery indicator Evaluation of the battery status Unit display...

  • Page 11: Connections

    G 1500 The product at a glance | 4 Up / Down button Press briefly Display of the min/max value Change value of the selected parameter Long press Reset the min/max value of the current measure- ment Both simultaneously Rotate display, overhead display...

  • Page 12: Bases For Measurement

    5 | Bases for measurement G 1500 5 Bases for measurement 5.1 pH measurement 5.1.1 Explanation The pH value describes the acidic or alkaline behaviour of an aqueous solution. A pH value below 7 is acidic, a value above 7 is alkaline. A pH value of 7 is neutral.

  • Page 13: Design

    G 1500 Bases for measurement | 5 5.1.3 Design 1. Coaxial cable 2. Reference electrode 3. Measuring electrode 4. Refill opening 5. Electrolyte 6. Internal buffer 7. Diaphragm 8. Glass membrane / source layer Fig. 5: pH electrode The diaphragm, which establishes a connection between the electrolyte and the liquid to be measured, can be designed in different ways.

  • Page 14: Service Life

    5 | Bases for measurement G 1500 – GE 100 BNC is a universal electrode with two ceramic diaphragms and liquid elec- trolyte. – GE 101 BNC is preferably used for small sample amounts. It comprises a glass electrode with two ceramic diaphragms and liquid electrolyte.
  • Page 15 G 1500 Bases for measurement | 5 Impurities Cleaners General residue Mild detergent Inorganic coatings Commercially available liquid glass clean- Metal compounds 1 mol/l HCl solution or GRL 100 pepsin cleaning solution Oil and grease Special cleaner or solvent Biological coatings with protein...

  • Page 16: Operation And Maintenance

    6 | Operation and maintenance G 1500 6 Operation and maintenance 6.1 Operating and maintenance notices NOTE The product and electrode must be handled with care and used in accordance with the technical data. Do not throw or strike. NOTE Plugs and sockets must be protected from soiling.

  • Page 17: Calibration And Adjustment

    G 1500 Operation and maintenance | 6 CAUTION Damage! If the batteries have different charge levels, leaks and thus damage to the product can occur. – Use new, high-quality batteries! – Do not use different types of batteries! – Remove depleted batteries and dispose of them at a suitable collection point!
  • Page 18 6 | Operation and maintenance G 1500 Prerequisite – The product is switched on. Instruction 1. Carefully remove the protective cap from the electrode. 2. Rinse off the electrode with distilled or deionised water. 3. Press function key F1 for 1 second to open the Calibration menu. Start 1.
  • Page 19 G 1500 Operation and maintenance | 6 NOTE Measure the temperature of the buffer solution with a thermometer. The exact value of the buffer solution is temperature dependent and can be determined based on the tables provided. NOTE Always use fresh buffer solutions! 6.3.1.2 Buffer solutions...
  • Page 20 6 | Operation and maintenance G 1500 NOTE Automatic calibration can also be carried out with the pre-mixed PHL buffer solutions. Since the temperature compensation relates to the GPH capsules, an error of a few hundredths pH should be taken into account, depending on the temperature. Refer also to the differences in the tables of the buffer solutions in Buffer solutions [} p. 19].
  • Page 21 G 1500 Operation and maintenance | 6 4. Enter the temperature of the buffer solution by pressing the Up button and Down button and confirm the entry by pressing the Function key again. 5. The PK.OF parameter appears in the display.

  • Page 22: Calibration And Adjustment Service

    6 | Operation and maintenance G 1500 Outcome of an action After successful completion of the calibration the assessment of the electrode condi- tion is displayed briefly in percent. Then, the current measurement is shown in the dis- play again. A low value can be the result of the age of the electrode, contaminated or old buffer solutions or impurities on the BNC connector.

  • Page 23: Operation

    G 1500 Operation | 7 7 Operation 7.1 Commissioning 7.1.1 Explanation Description The product is switched on with the On/Off button. It may be necessary to configure the product after switching on. See Configuration [} p. 23]. Prerequisite – Sufficiently full batteries are inserted in the product.

  • Page 24: Configuring Parameters Of The Configuration Menu

    7 | Operation G 1500 3. By briefly pressing the Function key, you can scroll through the parameters. Select the parameter you would like to configure. 4. When you have selected the desired parameter, change the parameter to the de- sired value with the Up button and the Down button.

  • Page 25: Adjustment Of The Measuring Input

    G 1500 Operation | 7 Temperature unit UN,T Temperature display in °C °( Temperature display in °F °F Shut-off time POFF No automatic shut-off Automatic shut-off after a selected time in minutes, 15 30 60 120 240 during which no buttons have been pressed...
  • Page 26 7 | Operation G 1500 3. By briefly pressing the Function key, you can scroll through the parameters. Select the parameter you would like to configure. 4. When you have selected the desired parameter, change the parameter to the de- sired value with the Up button and the Down button.

  • Page 27: Error And System Messages

    G 1500 Error and system messages | 8 8 Error and system messages Display Meaning Possible causes Remedy No probe or sensor Sensor or probe Connect sensor or probe SENS ERRO connected missing Connect different sensor or Sensor or probe de-...
  • Page 28 8 | Error and system messages G 1500 Incorrect electrode Check electrode connected Send in for repair Electrode or product defect System error Error in the product Switch product on/off SYS ERR Replace batteries Send in for repair 28 / 34...

  • Page 29: Disposal

    G 1500 Disposal | 9 9 Disposal Separation by material and recycling of device components and packaging must take place at the time of disposal. The valid regional statutory regulations and directives applicable at the time must be observed. NOTE The device must not be disposed of with household waste.

  • Page 30: Technical Data

    10 | Technical data G 1500 10 Technical data Measuring range pH 0.00 .. 14.00 pH Temperature compensation -5 .. 150 °C (or 23 .. 302 °F) Accuracy pH (device) ± 0.02 pH ± 1 digit Nominal temperature 25°C Input resistance pH ca.

  • Page 31: Spare Parts And Accessories

    G 1500 Spare parts and accessories | 11 11 Spare parts and accessories A selection of spare parts and accessories for this product is listed below. Article Number Name Description 610049 Mignon battery Mignon AA spare battery 603523 GAK 1400...

  • Page 32: Service

    12 Service 12.1 Manufacturer If you have any questions, please do not hesitate to contact us: Contact GHM Messtechnik GmbH GHM GROUP - Greisinger Hans-Sachs-Str. 26 93128 Regenstauf | GERMANY Email: info@greisinger.de | www.greisinger.de WEEE reg. no. DE 93889386 12.2 Repairs processing Defective products are repaired professionally and quickly in our service centre.

  • Page 33: Sales Subsidiaries
