Modbus Mode
This menu is for setting the Modbus mode of transmission. The operator can select between
RTU and ASCII, with a default of RTU. As per the Modbus specification, the character size is 8
data bits for RTU and 7 data bits for ASCII.
Modbus Data Rate
This menu is for setting the data or baud rate for the Modbus interface. The operator can select
between 2400, 4800, 9600, 19,200, 38,400 or 57,600 bits per second. The default is 19,200 bps.
Modbus Parity
This menu is for setting the parity for the EX-485 port when configured as a Modbus slave. The
operator can select between Even, Odd or None. The default is Even. As per the Modbus
specification, there is 1 stop bit used with even and odd parity and 2 stop bits with no parity.
Access Code
This menu allows the operator to enable and set a 4-digit code for access to the Setup menu.
The selections are On/Set and Off. The default setting is Off.

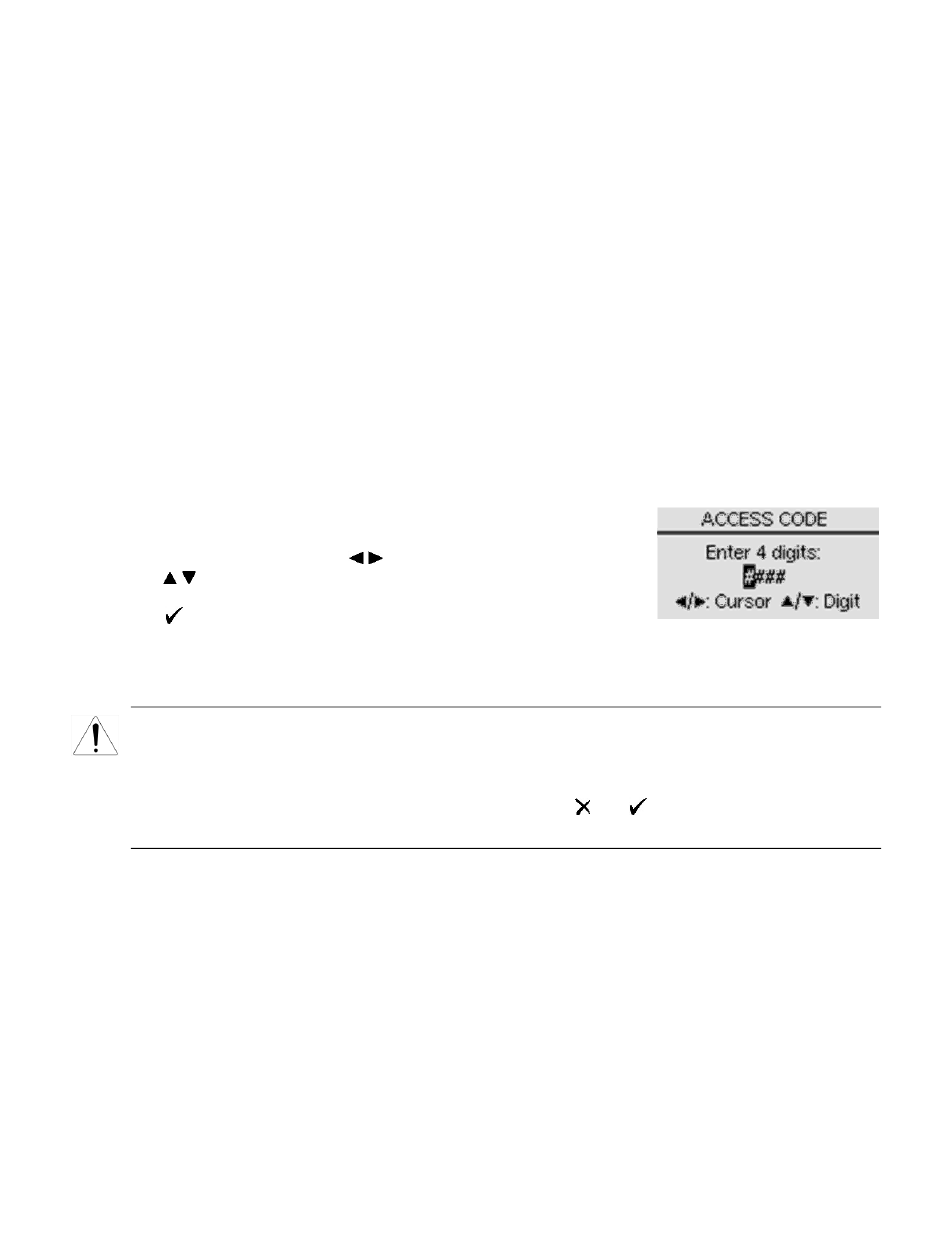

After selection of On/Set, a setup screen appears for entering a 4-
digit number. Enter any 4-digit number between 0000 and 9999,
one digit at a time. Use the
the
/
keys to adjust the selected digit. After all four digits have
been entered, write the number down in a safe place and press
the
key. Next time the Setup menu is accessed, this same
screen is presented for entering the access code. Entry to the Setup menu is not permitted until
the correct 4-digit code is entered. With an access code set, if the console is left unattended in
the Setup menu it will automatically exit to the Main menu after 20 seconds of no keypad activity.
CAUTION: If you lose or forget the access code you will have to clear ALL nonvolatile memory to
regain access to the Setup menu. Doing so will also erase all user settings, vessel parameters
and measurement data.
To clear all nonvolatile memory, press and hold both the
inside the wiring cabinet or power cycling the console.
Language/Idioma
This is a menu that allows the operator to select either the English or Spanish language for
displaying the text-based menu system. The default is English.
This menu is also presented to the user when the C-100MB SmartBob control console is powered
up for the very first time.
Info/About
This screen simply displays company, product and firmware version information. Knowing the
firmware version may be needed when working with BinMaster's service department.
information is also displayed momentarily when powering up.
925-0301 Rev C
/
keys to re-position the cursor and
23
and
keys while either pressing S1
This
