OPTICAL IN 1/2 connection

You can enjoy the sound from your component
with a digital optical connection through the
speakers of this system.
Connect the optical output terminal of your
component into the OPTICAL IN 1 or 2 terminal
on the unit. And then select the [Optical IN 1/2]
option by pressing FUNCTION and ENTER.
2

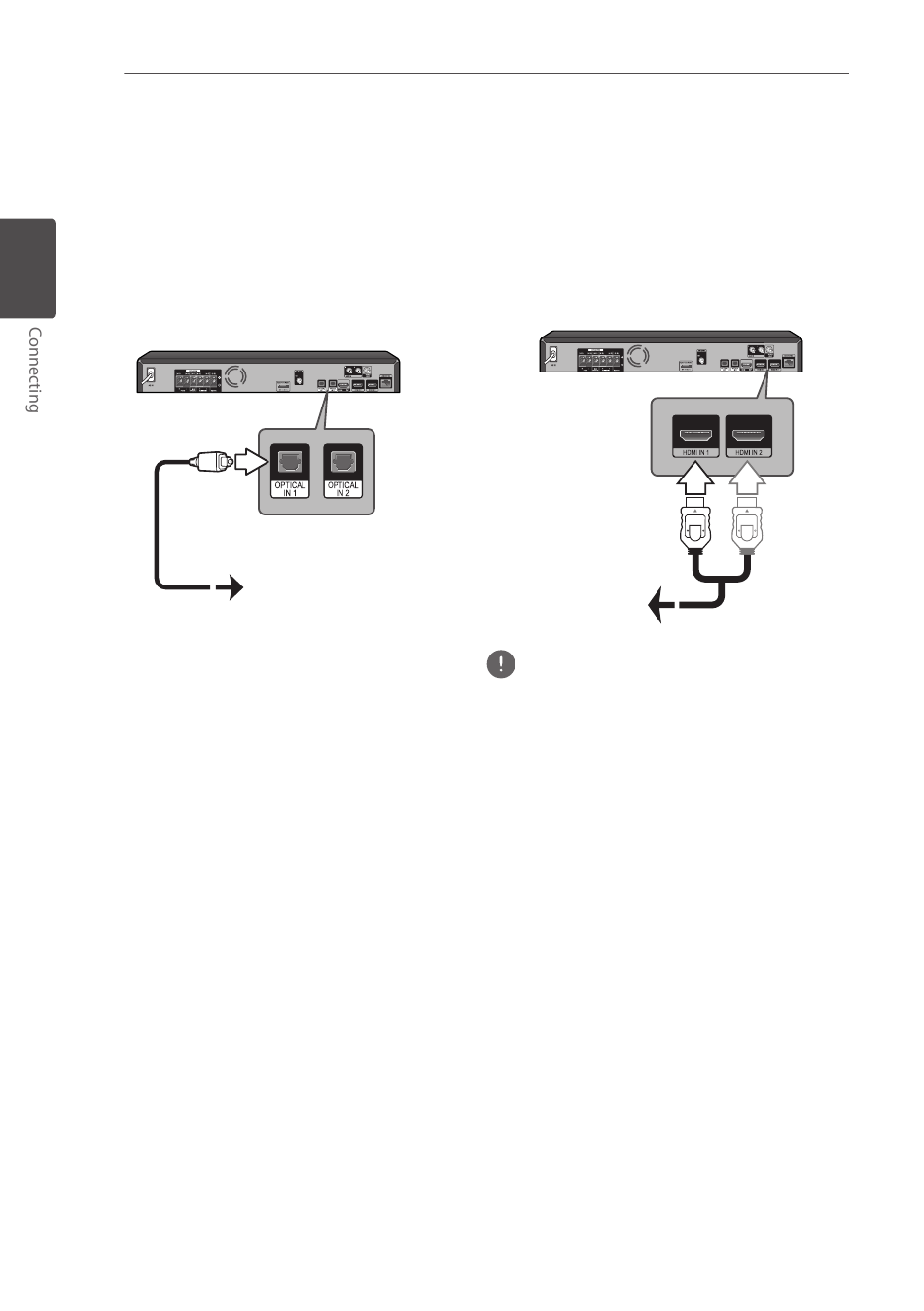

Rear of the unit
To the digital optical
output terminal of
your component

HDMI IN 1/2 connection

You can enjoy the pictures and sound from
your component through this connection.
Connect the HDMI OUT terminal of your
component into the HDMI IN 1 or 2 terminal
on this unit. And then select the [HDMI IN 1/2]
option by pressing FUNCTION and ENTER.
Rear of the unit
To the HDMI OUT
terminal of your
component
(set-top box, digital
satellite receiver,
video game
machine, etc.)
Note
• You cannot change the video resolution in the
HDMI IN 1/2 mode. Change the video resolution of
the connected component.
• If the video output signal is abnormal when your
personal computer is connected to HDMI IN 1/2
terminal, change the resolution of your personal
computer to 576p, 720p, 1080i or 1080p.
• The video signal from the HDMI input cannot be
output from the component or composite video
outputs.
• You may not able to output 3D images depending
on the type of the 3D output signal of the
connected device.
