INSTALLATION AND OPERATION MANUAL

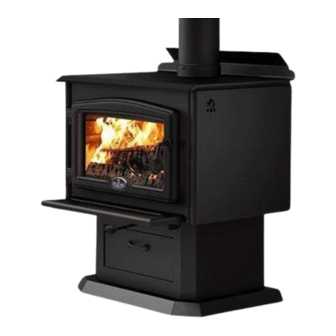

OSBURN 2000
(OB02005 Model)
NEW ZEALAND
38 Harris Road, East Tamaki, Auckland
Ph: 09 274 8265
Email:
sales@glendimplex.co.nz
www.glendimplex.com.au
This manual is available for free download on the manufacturer's web site. It is a copyrighted
document. Re-sale is strictly prohibited. The manufacturer may update this manual from time to
time and cannot be responsible for problems, injuries, or damages arising out of the use of
information contained in any manual obtained from unauthorized sources.
Printed in Canada
Distributed by
Glen Dimplex Australasia
Fax 09 274 8472
READ AND KEEP THIS MANUAL FOR REFERENCE
AUSTRALIA
Unit 1, 21 Lionel Road
Mount Waverley, Victoria 3149
Ph: 1 300 554 155 Fax 8787 3570
Email:
sales@glendimplex.com.au
www.glendimplex.com.au
45640A
21-10-2014
