4.6 NETWORK CONFIGURATION

This section covers setting up your DVR so that it can be remotely monitored from another
computer on your network, over the Internet or from mobile wireless devices. E-mail alerts
are also configured here and you can set up a DDNS service for a more reliable connection
to your remote devices. The four tabs in this window are Network, Sub-Stream, Email
and Other Settings. If you will only be monitoring the DVR from another computer on your
network, you will only need to use the first three tabs.
It is important that your DVR is connected to your network router and that the router is
powered on before proceeding.
Network Tab
HTTP Port – This is the port the DVR
will occupy on your computer
network. When accessing the DVR
remotely from the Internet, you will
need to enter your network's IP
address (obtained in the next step)
in the address bar of an Internet
Explorer window. For example:
http://192.168.0.25
NOTE! The default value is 80. If port 80 is already occupied by another device
on the network, then another port will need to be selected. Choose another
number in the same range; 81-89. In this case, you will have to add the port to
the IP address when entering it into the Internet Explorer window. For example,
if the port is now 82, then you will need to enter http://192.168.0.25:82
Optain IP Address Automatically – Clicking this box will obtain the IP address, subnet mask,
and gateway IP from the router.
PPPOE – Selecting this enables Point-to-Point Protocol over Ethernet (PPPoE) which allows
you to directly connect your DVR to the Internet through your modem. Do not use this
unless required by your Internet Service Provider (ISP) or if you are already connected
to a router. Contact your ISP for your account information including user name and
password. The TEST button will verify that your information is correct.
26
NETWORK NETWORK
Network Network Substream Substream Email Email Other Settings Other Settings
HTTP Port HTTP Port 80 80
Server Port Server Port 6036 6036
Obtain an IP address automatically Obtain an IP address automatically
IP Address IP Address
192 . 168 . 001 . 100 192 . 168 . 001 . 100
Subnet Mask Subnet Mask
255 . 255 . 255 . 000 255 . 255 . 255 . 000
Gateway Gateway
192 . 168 . 001 . 001 192 . 168 . 001 . 001
Preferred DNS Server Preferred DNS Server
000 . 000 . 000 . 000 000 . 000 . 000 . 000
Alternate DNS Server Alternate DNS Server
000 . 000 . 000 . 000 000 . 000 . 000 . 000
PPPoE PPPoE
User Name User Name
Password Password
Test Test
Default Default Apply Apply Exit Exit

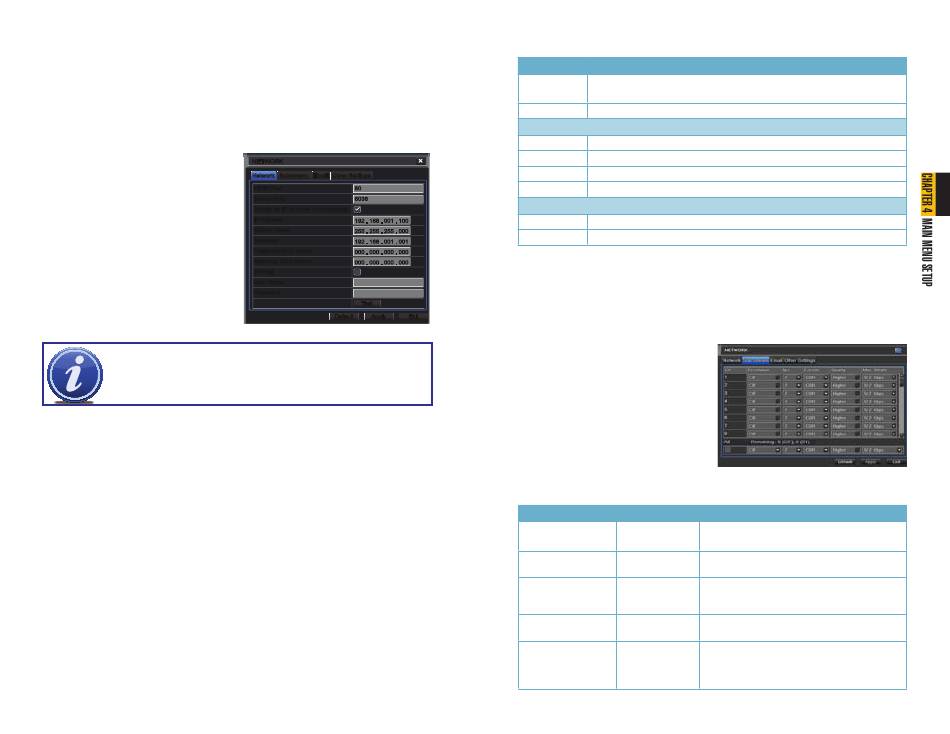

PICTURE 4-35
Definitions and descriptions of network configuration:
Parameter Definition
HTTP Port The network port number for accessing the DVR via Internet Explorer. The default
port is 80
Server Port The port number for data. The default port is 6036
Static IP
IP Address The IP address of the DVR on your network
Subnet Mask The server's subnet mask
Gateway The gateway of the router
DNS Server The address of the Domain Name System (DNS) server
PPPoE
User Name User name of the broadband account
Password Password for broadband account
Substream Tab
The substream is the data that is sent to remote monitoring devices. Due to bandwidth
concerns, these data streams are generally smaller than those sent directly to the DVR itself.
These streams run in parallel with the main stream sent to the hard drive and they do not
affect each other.
Substream settings are configured in the
same manner as that used for the primary
stream settings in the Record Bitrate
tab in Section 4.3 Certain settings will be
grayed out and cannot be changed due to
throughput concerns. The definitions are
repeated for your convenience:
Parameter Options
Resolution D1, CIF
FPS 1-30
Encode VBR, CBR
Quality Lowest – Highest
Max Bitrate 256-2084kbps
PICTURE 4-36
What it Means
D1 = Full TV resolution, CIF = 1/2 D1. D1 takes more
room on the hard drive than CIF
Frames per second. More frames makes for smoother
video but takes up more room on the hard drive.
Variable Bit Rate versus Constant Bit Rate. VBR
provides better compression, but issues may arise
when streaming for remote viewing.
Only available when VBR is selected. The higher the
quality, the more drive space required.
Your network may not have enough bandwidth to
handle maximum rates from all of your cameras.
Adjusting these settings to suit your network will
improve performance and on-screen image quality.
