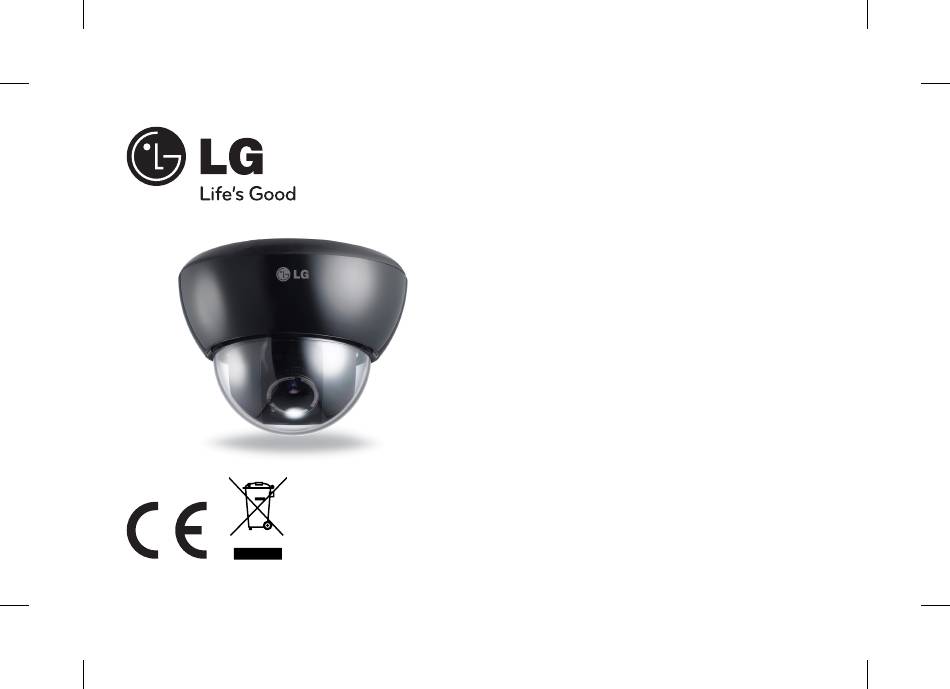

- Page 1 Color Video Camera User Manual Models: LV821 LV822 LV823 Before installing, operating or adjusting this product, please read this instruction booklet carefully and completely.
- Page 2 FCC WARNING: This equipment may generate or use radio CAUTION frequency energy. Changes or modifications to this equip- ment may cause harmful interference unless the modifica- tions are expressly approved in the instruction manual. The RISK OF ELECTRIC SHOCK user could lose the authority to operate this equipment if DO NOT OPEN an unauthorized change or modification is made.
- Page 3 Caution: This installation should be made by a qualified • Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent service person and should conform to all local codes. type recommended by the manufacturer. Dispose Caution: To avoid electrical shock, do not open the cabi- of used batteries according to the manufacturer’s net.
- Page 4 When this crossed-out wheeled bin symbol is attached to a product it means European representative : the product is covered by the European LG Electronics Service Europe B.V. Directive 00/96/EC. Veluwezoom 15, 17 AE Almere, All electrical and electronic products...
- Page 5 Important Safety Instructions Read these instructions. and the point where they exit from the apparatus. Keep these instructions. 11. Only use attachments/accessories specified by the manufacturer. Heed all warnings. 1. Use only with the cart, stand, tripod, bracket, or table Follow all instructions.
- Page 6 Cautions for Safe Operation Power Supply Operating and storage location This camera must always be operated a AC V or DC 1 V Avoid viewing a very bright object (such as light fittings) Certified/Listed, class power supply only. during an extended period.
-
Page 7: Table Of Contents
Contents Features ................8 SENS-UP setting ............6 White Balance settings ............6 Features Chart ................8 Day/Night Setting ..............7 Part Names and Functions ..........9 Motion Detection Setting ............8 Connections ..............11 D-DNR Setting ...............9 Basic connection ..............11 Privacy Setting .................0 Installation .............. -
Page 8: Features
Features Features Chart This Color Video Camera is designed for installation in an indoor video surveillance system. This table shows the differences between the models. This manual contains instructions on how to install and manage the Color Video Camera in your video surveillance Use LV8P-DB is used for the description, operation and system. -
Page 9: Part Names And Functions
Part Names and Functions a Dome Cover b Lens Cover c Video output connector (BNC type) d Power input connector Supplies AC V or DC 1 V from an external power source. e Focus lock lever Fixes the focus position after adjusting. f Setup menu control buttons g Video Out connector Use this jack for checking the picture with portable... - Page 10 Part Names and Functions h Azimuth adjuster Adjusts the azimuth angle to obtain a level image. i Azimuth lock screw Fixes the azimuth angle after adjusting. j Zoom lock lever Fixes the zoom position after adjusting. k Pan lock screw Fixes the panning position after adjusting. l Camera mounting bracket This bracket is supplied for ceiling installation.
-
Page 11: Connections
Connections Basic connection Supply AC V or DC 1 V from an external power source. The peripheral devices (DVR, monitor, lens, etc.), AC adapter and cables are not supplied. Connecting the monitor Make the video signal connection between the cam- era and the monitor or DVR. -
Page 12: Installation
Installation Mounting the Camera without Fasten the camera body to the ceiling. bracket This camera can be installed directly on the surface of the wall or ceiling without bracket. Use the installation guide template to check the mounting location. Face the front of the label toward the area of interest. - Page 13 Installation Assemble the camera cover and camera body. For proper orientation, use the align mark to assemble the camera.
-
Page 14: Mounting The Camera With Bracket
Installation Mounting the Camera with bracket Fasten the camera bracket to the ceiling. This camera can be installed on the surface of the wall or ceiling using the supplied bracket. Use the installation guide template to check the mounting location. Face the front of the label toward the area of interest. - Page 15 Installation Fasten the camera body to the camera bracket. Assemble the camera cover and camera body. For Tighten the screw to fix the camera body on the proper orientation, use the align mark to assemble the bracket. camera.
-
Page 16: Image Adjustment
Installation Image Adjustment You can manually adjust the pan/tilt/azimuth angles, focus, and zoom while observing the connected monitor. Notes: • Do not hold the camera by lens unit to adjust panning, tilting, or azimuth. • The video output to the BNC will be interrupted while a portable monitor is connected to the video jack. - Page 17 Installation Adjust the pan/tilt position of the camera. Adjust the azimuth angle. 5-1. Lock the azimuth angle screw. -1. Lock the pan lock screw. Adjust the zoom 6-1. Unlock the zoom lever. 6-. Move the lever to adjust the zoom. TELE WIDE...
- Page 18 TELE WIDE Installation TELE NEAR WIDE 6-. Lock the lever. 7-. Lock the lever. Adjust the focus Attach the lens cover. 7-1. Unlock the focus lever. Attach the dome cover. 7-. Move the lever to adjust the focus. NEAR...
-
Page 19: Menu Operation
Menu Operation • UP button: This camera utilizes an on-screen user MENU. To set items on the menu, use the following buttons. Used to move upper direction on the menu screen. Use this button to select an item or adjust the param- eters. -
Page 20: Osd Menu Overview
Menu Operation OSD Menu Overview Main Menu Sub Menu Contents The following table shows the list of menu items and op- PUSH tions. You can adapt the camera to your requirements by INDOOR, setting up the respective items in these menus. COLOR TEMP OUTDOOR WHITE BAL... - Page 21 Menu Operation Main Menu Sub Menu Contents Main Menu Sub Menu Contents ZOOM D-DNR D-ZOOM MIDDLE TILT HIGH EXIT D-EFFECT OFF/ V-FLIP/ MIRROR/ ROTATE SHARPNESS 0 to 68 MASK NUMBER AREA1 to AREA8 STABILIZER OFF/ ON DISPLAY ON/OFF SPECIAL COLOR OFF/ ON GRAY, WHITE, COLOR...
-
Page 22: General Operation
Menu Operation General Operation • TOP: Return to the CAMERA SETTING menu screen. Press [SET] button. • END: Exit the setup menu. The setup menu screen appears on the monitor. Camera Identification Settings You can use the camera identification (CAMERA ID) to assign a number to the camera. -
Page 23: Exposure Settings
Menu Operation Exposure Settings You can set the exposure options using the EXPOSURE menu. Select [EXPOSURE] option on the [CAMERA SETTING] menu. Use [LEFT] or [RIGHT] button to select a mode (ALC ELC). Select [WDR/BLC] option. Press [SET] button and the EXPOSURE menu appears. Use [LEFT] or [RIGHT] button to select a mode then press [SET]. - Page 24 Menu Operation Brightness setting > BLC LIMIT: LOW MIDDLE HIGH • HSBLC: Use for masking brightness of the specific You can increase the brightness of the darkened video. If area to view the subject more clearly. The HSBLC you set the brightness to lower value, the image is dark- mode is automatically activated only in low lumi- ened.
-
Page 25: Agc (Automatic Gain Control) Setting
Menu Operation AGC (Automatic Gain Control) setting SHUTTER (Shutter Speed) setting If the images are too dark, change the maximum [AGC] Select the desired shutter speed for camera exposure. You value to make the images brighter. can change the shutter speed to higher speed to capture fast-moving subjects, though the image becomes darker. -
Page 26: Sens-Up Setting
Menu Operation SENS-UP setting Note: If you set to one of the SHUTTER options except AUTO on If pictures are not clear due to darkness, this SENS-UP the [SHUTTER] menu or [AGC] to [OFF], the [SENS-UP] set- operation would increase the sensitivity of picture. ting is not available and [---] mark is displayed. -
Page 27: Day/Night Setting
Menu Operation • ATW (Auto-Tracing White Balance): The color OUTDOOR: The color temperature range temperature range for the proper white balance for the proper white balance is approxi- is approximately 1 700 to 11 000 K. Proper white mately 5 100 K. balance may not be obtained under the following >... -
Page 28: Motion Detection Setting
Menu Operation Motion Detection Setting • AUTO: You will be able to change the Day/Night mode automatically. The motion detection detects the moving objects in the Note: scene by monitoring changes in brightness level. You can If you set the AGC to [OFF] or the SHUTTER is set select the level of sensitivity for motion detection to zone. -
Page 29: D-Dnr Setting
Menu Operation 3D-DNR Setting Use [UP] or [DOWN] to select an option then use [LEFT] or [RIGHT] button to adjust the option. • HEIGHT: Enlarge or decrease the vertical size of the mask. • WIDTH: Enlarge or decrease the horizontal size of the mask. -
Page 30: Privacy Setting
Menu Operation Privacy Setting WHITE or BLACK on the COLOR option. Use [UP] or [DOWN] to select an option then use This function is aiming at the protection of personal pri- [LEFT] or [RIGHT] button to adjust the option. vacy, selecting a screen part black not to be displayed in •... -
Page 31: Special Menu Settings
Menu Operation Special Menu Settings This menu lets you adjust and set up D-ZOOM, D-EFFECT, SHARPNESS, COLOR, SYNC, USER TITLE, LANGUAGE func- tion by yourself in the SPECIAL menu. Select [D-ZOOM] option on the [SPECIAL] menu. Use [LEFT] or [RIGHT] button to select a [ON] then press [SET] the DIGITAL ZOOM menu appears. -
Page 32: Setting The D-Effect (Digital Effect)
Menu Operation Setting the D-EFFECT (Digital effect) Setting the SHARPNESS effect You can select the digital effect. The degree to which the boundary of the two portions is clearly distinguished. Select [D-EFFECT] option on the [SPECIAL] menu. Select [SHARPNESS] option on the [SPECIAL] menu. Use [LEFT] or [RIGHT] button to select a digital effect. -
Page 33: Stabilizer Setting
Menu Operation Stabilizer setting Setting the COLOR effect You can switch the displayed picture to gray scale or color. The image stabilizer function minimizes the appearance of shaky images caused by low-frequency vibration. Select [COLOR] option on the [SPECIAL] menu. This function is useful for outdoor surveillance. -
Page 34: Setting The Sync (Synchronization)
Menu Operation Setting the SYNC (Synchronization) The SYNC function is available only with AC power source. Select [SYNC] option on the [SPECIAL] menu. Use [LEFT] or [RIGHT] button to select [INT] or [LL] (Line Lock). • INT: Selects for using the internal synchronization. -1. -
Page 35: Language Setting
Menu Operation Language Setting Select the viewer language for the camera setup menu and OSD information display. Use [UP], [DOWN], [LEFT] or [RIGHT] button to select a character or number then press [SET] button. • CLR: Clear all entered characters and numbers. •... -
Page 36: Reset Settings
Menu Operation Reset Settings • CAMERA REBOOT: To reboot the camera system. • FACTORY RESET: To reset the camera setting to factory setting, select [FACTORY RESET] option. Press [SET] button to confirm your selection. Select [RESET] option. Press [SET] button and the RESET menu appears. Use [UP] or [DOWN] to select option. -
Page 37: Specification
6 mm Interline Color CCD 6 mm Super HAD CCD II Lens Vari-Focal Lens (f = .8 to 11 mm / F = 1.) Iris DC/ELC Selectable Signal Process LG XDI-S Scanning System :1 Interlace Synchronization Internal/Line Lock System Scanning Frequency 50 Hz(VD) 59.9 Hz(VD) - Page 38 Specification LV823P-DB LV823N-DB Item LV821P-DB LV821N-DB LV821P-D2 LV821N-D2 LV822P-DB LV822N-DB - Day: 0.0001 lx (Sens-up Auto, 0.000 lx (Sens-up Auto, F1.) F1.) (0.06 lx: Sens-Up Off, F1.) (0.7 lx: Sens-Up Off, F1.) 0.0001 lx (Sens-up Auto, F1.) Low Luminance - Night: 0.00001 lx (Sens-up (0.06 lx: Sens-Up Off, F1.) Auto, F1.) (0.0006 lx: Sens-Up 0.7 lx: Sens-Up Off, F1....
- Page 40 P/N: MFL6770...
