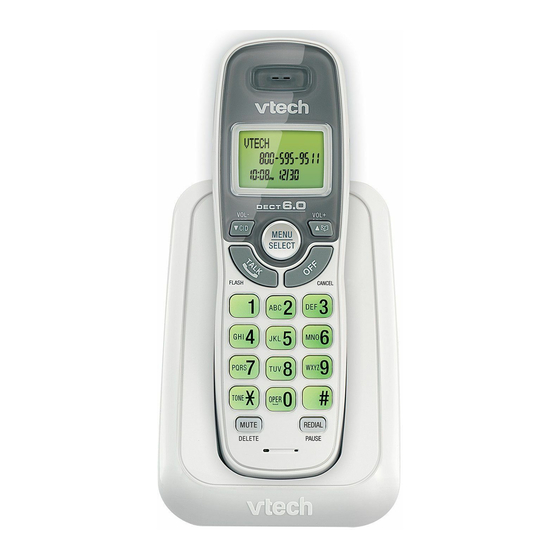

VTech CS6114 Complete User's Manual
Dect 6.0
Hide thumbs
Also See for CS6114:
- User manual ,
- Complete user's manual (50 pages) ,
- Online user's manual (43 pages)
Subscribe to Our Youtube Channel
Related Manuals for VTech CS6114
Summary of Contents for VTech CS6114

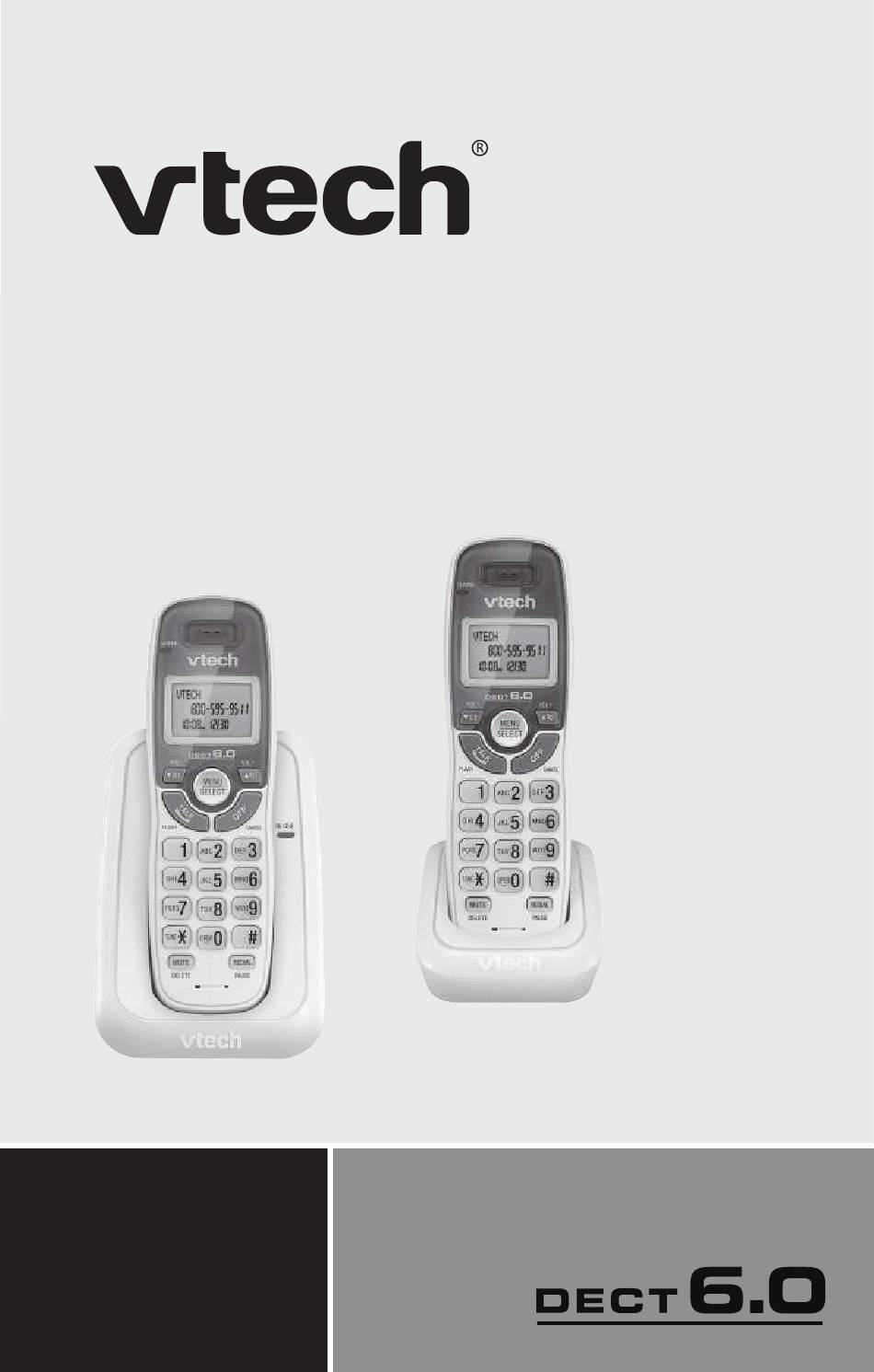

- Page 1 Complete user’s manual w w w.v t e c h p h o n e s . c o m Models: CS6114/CS6114-2...
- Page 2 Congratulations on purchasing your new VTech product. Before using this telephone, please read Important safety instructions on page 33 of this manual. This manual has all the feature operations and troubleshooting necessary to install and operate your new VTech telephone. Please review this manual thoroughly to ensure proper installation and operation of this innovative and feature rich VTech product.
-
Page 3: Table Of Contents
Table of contents Getting started ......1 Dial a redial entry ......16 Parts checklist ........1 Delete a redial entry ......16 Telephone base and charger Directory .........16 installation ........2 Add a directory entry .....17 Wall mounting ........2 Character chart ......18 Battery installation ......3 Review the directory ......18 Battery charging......5 Alphabetical search .......19... -
Page 4: Getting Started
Battery Battery Telephone charger adapter compartment cover line cord (1 for CS6114) (2 for CS6114-2) (1 for CS6114-2) (1 for CS6114 and 2 for CS6114-2) Abridged user’s manual CANCEL Telephone base Handset Telephone base Abridged user’s manual power adapter (1 for CS6114) -
Page 5: Telephone Base And Charger Installation
Getting started Telephone base and charger installation Install the telephone base and charger as shown below. Make sure that the electrical outlet is not controlled by a wall switch. If you subscribe to digital subscriber line (DSL) high-speed Internet service through your telephone line, you must install a DSL filter between the telephone line cord and telephone wall jack. -
Page 6: Battery Installation
Getting started Battery installation After you install the handset battery, the handset will prompt you to set the date and time. The handset will also prompt you to set the date and time after a power failure. For instructions, see Set date and time on page 11. To skip, press /CANCEL. - Page 7 Getting started Battery installation (continued) Align the cover flat against the battery compartment, then slide it towards the center of the handset until it clicks into place. Charge the handset by placing it in the telephone base or charger. The CHARGE light remains on whenever the handset is charging.
-
Page 8: Battery Charging
Getting started Battery charging Once you have installed the battery, the screen indicates the battery status (see the table below). If necessary, place the handset in the telephone base or charger to charge the battery. For best performance, keep the handset in the telephone base or charger when not in use. The battery is fully charged after 16 hours of continuous charging. -
Page 9: Handset Layout
Getting started Handset layout CHARGE light On when the handset is charging in the telephone base or charger (page 4). CID/VOL- Press to review the call log when the telephone is not in use (page 22). During a call, press to decrease the listening volume. - Page 10 Getting started Handset layout MENU/SELECT Press to show the menu. While in a menu, press to select an item, or save an entry or setting. /VOL + Press to review the directory when the telephone is not in use (page 18). During a call, press to increase the listening volume.
-
Page 11: Are You A New Cable Or Voip Subscriber
Getting started Are you a new cable or VoIP subscriber? If your answer is yes, the existing telephone jacks in your home may no longer work. You cable/VoIP service provider uses a different connection, separate from your old traditional telephone service, to connect the model/ router/terminal adapter installed in your home. -
Page 12: Telephone Settings
Telephone settings Using the menu To enter the handset menu: Press MENU/ when the telephone is not in use. SELECT Press CID or until the screen displays the desired feature menu. Press /SELECT to enter that menu. MENU • To return to the previous menu, press OFF/CANCEL. •... -
Page 13: Lcd Language
Telephone settings LCD language The LCD language is preset to English. You can select English, French or Spanish to be used in all screen displays. To change the setting: Settings Press MENU/ when the handset is not in use. SELECT Press CID or until the screen displays... -
Page 14: Key Tone
Telephone settings Key tone Settings You can turn the key tone on or off. Press MENU/ when the handset is not in use. SELECT Press CID or until the screen displays Settings, then press /SELECT. MENU Key tone Press CID or until the screen displays Key tone, then press /SELECT. -
Page 15: Home Area Code
Tone or Pulse, then press /SELECT MENU to confirm your selection. You hear a confirmation tone. Website Use this feature to view the VTech website address. Press MENU/ when the handset is not in use. SELECT Press CID or until the screen displays Website, then press /SELECT. -
Page 16: Telephone Operation
Telephone operation Make a call • Press and then use the dialing FLASH keys (0-9) to dial the telephone number. Predial a call • Enter the telephone number using the dialing CANCEL keys (0-9), then press to dial. FLASH • The screen shows the elapsed time as you talk (in hours, minutes and seconds). -
Page 17: Temporary Ringer Silencing
It may lead to handset deregistration. If Not registered displays on the handset, refer to Troubleshooting on page 29 to register the handset to the telephone base. Multiple handset use (for CS6114-2 only) You can use both handsets at a time on an outside call. To share an outside call: •... -
Page 18: Chain Dialing
Telephone operation Chain dialing Use this feature to initiate a dialing sequence from numbers stored in the directory, call log or redial while you are on a call. Chain dialing can be useful if you wish to access other numbers (such as bank account numbers or access codes) from the directory, call log or redial list. -
Page 19: Dial A Redial Entry
30 digits and a name up to 15 characters. • Each handset directory is independent (for CS6114-2 only). Any additions, deletions or edits made on one Directory full handset are not reflected on the other handset. -
Page 20: Add A Directory Entry
Telephone operation Add a directory entry Enter the number when the handset is not in use. Press /SELECT, MENU then go to step 3. -OR- Press MENU/ three times when the handset is not in use. SELECT 2. When the screen displays Enter number: Directory Use the dialing keys to enter the number. -
Page 21: Character Chart
Telephone operation Character chart Use the dialing keys and the chart below to enter a name (up to 15 characters). Each press of a particular key causes the characters to be displayed in the following order: Characters by number of key presses Number ’... -
Page 22: Alphabetical Search
Telephone operation Alphabetical search To start an alphabetical search: Follow the steps in Review the directory on page 18 to enter the directory. Use the dialing keys to enter the letters associated with the name. For example, if you have entries for Jenny, Jessie, Kristen and Laura in your directory, press 5 (JKL) once to see Jenny (when Jenny displays, press CID to see Jessie), twice to see Kristen, or three times to see... -
Page 23: Delete A Directory Entry
Telephone operation Delete a directory entry Mike Smith 800-595-9511 Search for the desired entry in the directory (see Review the directory on page 18 or Alphabetical search on page 19). When the desired entry appears, press Delete contact? /DELETE. The screen displays MUTE 800-595-9511 Delete Contact? and the number. -
Page 24: Call Log
Any deletions made on one handset are reflected on the other handset. • Only one handset can review the call log at a time (for CS6114-2 only). If a handset tries to enter the call log while another handset is already in it, Not available displays. -
Page 25: Memory Match
Telephone operation Memory match When the incoming telephone number matches the last seven digits of a telephone number in your directory, the screen displays the stored name of the directory entry. For example, if Linda Jones calls, her name appears as Linda if this is how you entered it into your directory. -
Page 26: Dial A Call Log Number
Telephone operation Dial a call log number When in the call log (see Review the call log on page 22), press to browse to the desired entry. Press to call. FLASH Save a call log entry to the directory When in the call log (see Review the call log on page 22), press to browse. -
Page 27: Delete The Call Log Entries
Telephone operation Delete the call log entries To delete an entry: When in the call log, press CID or to browse. Press /DELETE to delete the selected entry. The screen displays MUTE Deleting... and then you hear a confirmation tone. To delete all entries: Press MENU/ when the handset is not in use. -
Page 28: Appendix
Appendix Display screen messages Cal l log empty There are no call log entries. Directory empty There are no directory entries. Directory ful l The directory is full. Ended X:XX:XX You have just ended a call. Incoming cal l There is an incoming call. Line in use A system handset is in use, or another telephone on the same line is in use. -
Page 29: Handset And Telephone Base Indicators
Appendix Handset and telephone base indicators Handset light CHARGE On when the handset is charging in the telephone base or charger. Telephone base light IN USE On when the telephone is in use. Flashes quickly when there is an incoming call. Flashes when another telephone sharing the same line is in use. -
Page 30: Battery
Appendix Battery It takes up to 16 hours for the battery to be fully charged. When it is fully charged, you can expect the following performance: Operation Operating time While in use (talking*) Seven hours While not in use (standby**) Five days *Operating times vary depending on your actual use and the age of the battery. -
Page 31: Troubleshooting
Appendix Troubleshooting If you have difficulty with your telephone, please try the suggestions below. For customer service, visit our website at www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377. My telephone does not work at all. •... - Page 32 Appendix Troubleshooting Not registered appears on the handset and it does not work at all. • The handset may be deregistered from the telephone base. Follow the steps below to register the handset to the telephone base. Remove the handset from the telephone base. Press and hold /FIND HANDSET on the telephone base for about four seconds until the red IN USE light turns on.
- Page 33 Appendix Troubleshooting • Test a working telephone at the telephone wall jack. If another telephone has the same problem, the problem is in the telephone wall jack. Contact your telephone service provider (charges may apply). • The telephone line cord may be defective. Install a new telephone line cord. •...
- Page 34 Appendix Troubleshooting I hear other calls when using the telephone. • Disconnect the telephone base from the telephone wall jack. Plug in a different telephone. If you still hear other calls, the problem is probably in the wiring or local telephone service.
- Page 35 Appendix Troubleshooting New voicemail and show on the handset display and I don’t know why. • If New voicemail and appear on the handset, your telephone has received a signal from your telephone service provider that you have a voicemail message waiting for you to retrieve from them.
-
Page 36: Important Safety Instructions
Appendix Important safety instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning. -
Page 37: Precautions For Users Of Implanted Cardiac Pacemakers
Appendix Precautions for users of implanted cardiac pacemakers Cardiac pacemakers (applies only to digital cordless telephones): Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the interference between portable wireless telephones and implanted cardiac pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to physicians that: Pacemaker patients •... -
Page 38: About Cordless Telephones
VTech product service centers. Please call 1 (800) 8 BATTERY for information on Ni-MH battery recycling and disposal bans/restrictions in your area. VTech’s involvement in this program is part of its commitment to protecting our environment and conserving natural resources. ®... -
Page 39: Warranty
Warranty What does this limited warranty cover? The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase (“Consumer” or “you”) that the Product and all accessories provided in the sales package (“Product”) are free from defects in material and workmanship, pursuant to the following terms and conditions, when installed and used normally and in accordance with the Product operating instructions. -
Page 40: Fcc, Acta And Ic Regulations
Some states/provinces do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. In no event shall VTech be liable for any indirect, special, incidental, consequential, or similar damages (including, but not limited to lost profits or revenue, inability to use the Product or other associated equipment, the cost of substitute equipment, and claims by third parties) resulting from the use of this Product. - Page 41 Appendix FCC, ACTA and IC regulations (continued) handset may be safely held against the ear of the user. The telephone base shall be installed and used such that parts of the user’s body other than the hands are maintained at a distance of approximately 20 cm (8 inches) or more.
-
Page 42: Technical Specifications
Appendix Technical specifications Frequency control Crystal controlled PLL synthesizer Transmit frequency Handset: 1921.536-1928.448 MHz Telephone base: 1921.536-1928.448 MHz Channels Nominal effective Maximum power allowed by FCC and IC. Actual operating range may vary according to environmental range conditions at the time of use. Power requirements Handset: 2.4V Ni-MH battery Telephone base: 6V AC @ 300mA... -
Page 43: Index
Index About cordless telephones 35 Handset layout 6–7 Alphabetical search 19 Handset light 26 Answer a call 13 Handset screen icons 26 Battery 27 Important safety instructions 33 Battery charging 5 Indicators 26 Battery installation 3–4 Installation 2, 3–4 Call log 21 Key tone 11 Call log display screen messages 24 Call waiting 13... - Page 44 Index Safety instructions 33 Save a call log entry to the directory 23 Screen icons 26 Screen messages 24, 25 Set date and time 11 Share an outside call 14 Silence ringer temporarily 14 Store from redial 17 Technical specifications 39 Telephone base installation 2 Telephone base layout 5 Telephone base light 26...
- Page 45 VTECH TELECOMMUNICATIONS LTD. A member of THE VTECH GROUP OF COMPANIES. VTech is the registered trademark of VTech Holdings Limited. Copyright © 2013 for VTECH TELECOMMUNICATIONS LTD. All rights reserved. Version 10 01/13.
