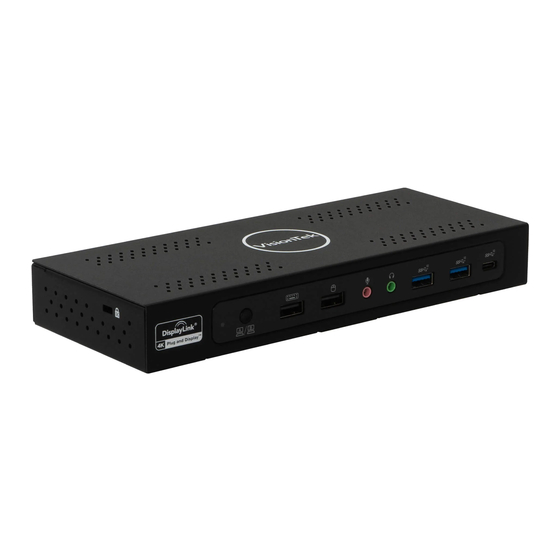

VT4900 USB-C KVM DOCKING STATION

1. Download the latest drivers for Windows, macOS and Android OS from the following

link: http://www.displaylink.com/downloads/

2. Download the latest KVM docking software from http://www.visiontek.com

3. Connect the Power adapter (PSU) to the DC power jack on the VT4900 Docking

Station.

4. Connect the included 2 x USB-C to C cables to USB-C (Upstream) Ports (Host A / B) on

the Docking Station and then to an available USB-C Port on each Host computer.

5. Connect your DisplayPort / HDMI displays to the corresponding ports on the VT4900

Docking Station.

6. Connect any other devices to the Docking Station, including an RJ-45 (Gigabit) for

network connection, USB peripherals, speakers and microphones.

7. Power On the Docking Station.

For the full instruction manual

visit www.visiontek.com

Quick Start Guide
