Fanimation Palmetto FP600 Series Specification Sheet

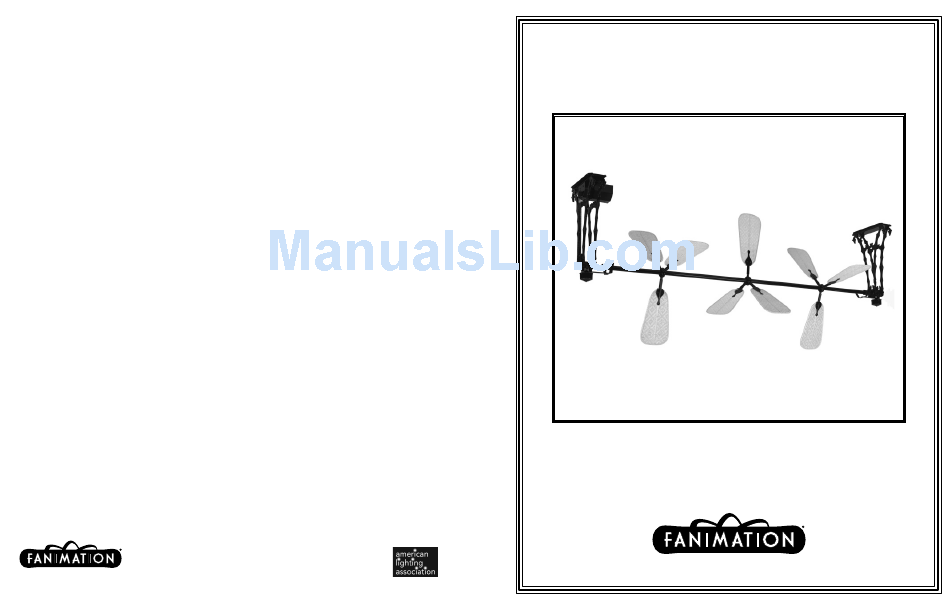

The Palmetto Ceiling Fan Assembly
®
INSTALLATION REQUIREMENTS:
It is recommended that each drive shaft support requires backing consisting of 3/4˝ plywood (20˝ x 20˝) attached to the
ceiling joists, snug above the sheet rock, and able to support 100 lbs. Not recommended for sound-sensitive areas.
ELECTRICAL REQUIREMENTS:
The drive shaft support that contains the motor will require a 120 VAC, 60 Hz, 15 amps electrical feed via a fl ush mount
junction box positioned on center and wired back to an on/off switch (motor unit is single speed). Any support that
contains a light fi xture will also require a junction box on center with a circuit wired back to a dimmer circuit or on/off
switch. The lights and motor should be on separate switch legs.
FAN SPEED:
Single-speed, 15 rpm; NOT designed for signifi cant air movement.
BLADE OPTIONS:
Various Palm and Bamboo blades are sold seperately. See Catalog or visit our website, www.fanimation.com for more
blade selections.
LIGHTING OPTIONS:
Optional lighting fi tters and light kits are available, including a single bowl fi xture with a maximum of 180 watts and
a variety of four-light fi xtures with a maximum of 240 watts. Can be only mounted on the cap housing. Installation
instructions provided with each light fi tter and light kit. See Catalog or visit our website, www.fanimation.com for more
lighting options.
DAMP LOCATION:
Fan not rated for Damp Location usage.
10983 Bennett Parkway
Zionsville, IN 46077
Toll Free (888) 567-2055
FAX (866) 482-5215
Outside U.S. call (317) 733-4113
Visit Our Website www.fanimation.com
Copyright 2007 Fanimation, Inc.
SPECIFICATION SHEET
2007/12
Palmetto
The
FP600 Series
Product Specifi cations subject to change
®
