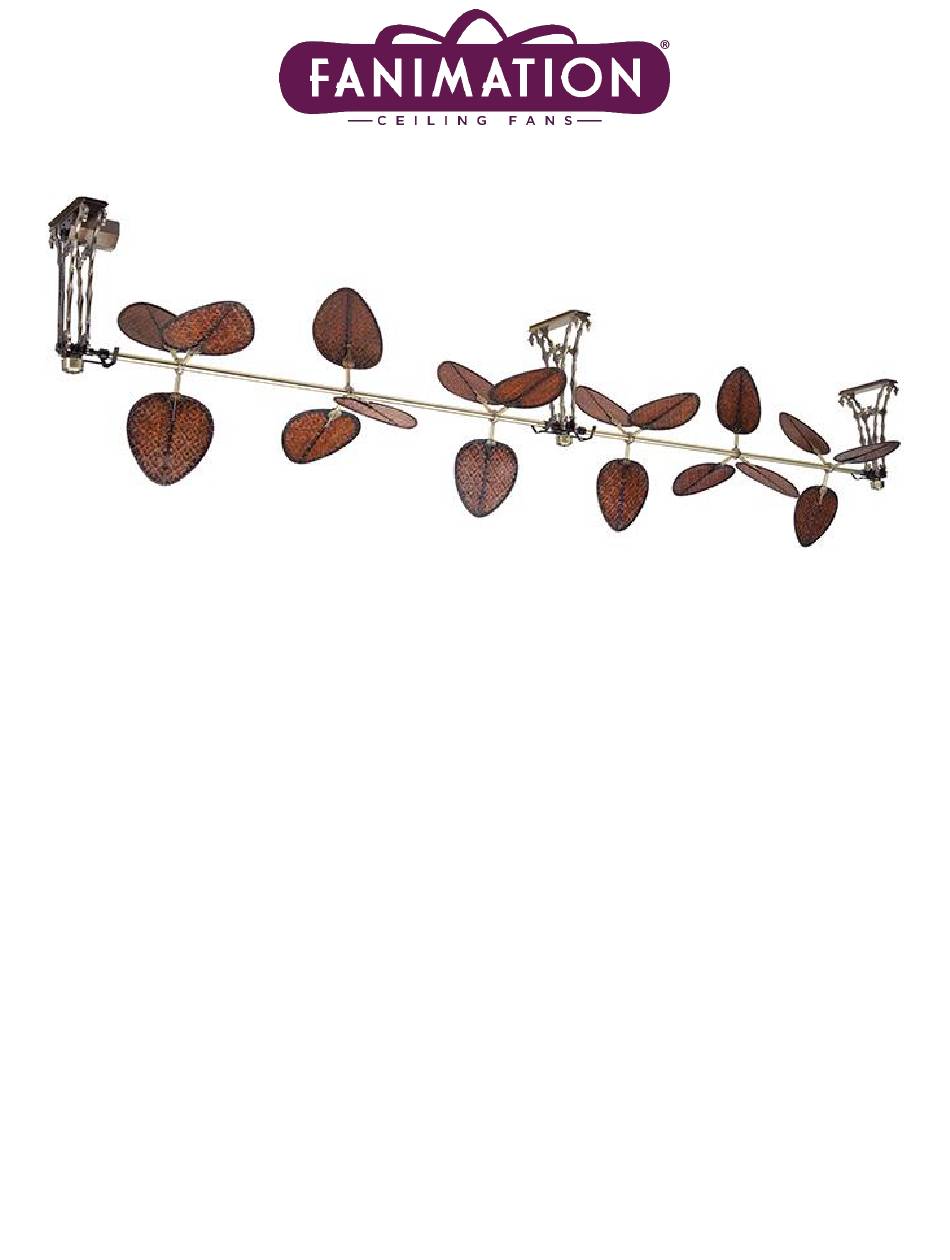

- Page 1 The Palmetto MODEL NOs: FP601 – 5** OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS...
- Page 2 PRODUCT IS DESIGNED TO USE ONLY THOSE PARTS SUPPLIED DESIGNATED SPECIFICALLY FOR USE BY FANIMATION. SUBSTITUTION OF PARTS OR ACCESSORIES NOT DESIGNATED FOR USE BY FANIMATION COULD RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE. CONTACT FANIMATION FOR MISSING OR DAMAGED PARTS.
- Page 4 1. LOCATE POWER a. POWER IS SUPPLIED BY PURCHASER/CONTRACTOR b. DISCONNECT POWER SUPPLY AT BREAKER BOX. A SINGLE PHASE 220 TO 240VAC ELECTRICAL FEED LOCATED AT THE CENTER OF THE MOTOR ASSEMBLY (P680M**) d. A SINGLE PHASE 220 TO 240VAC ELECTRICAL FEED LOCATED AT THE CENTER OF THE MOTOR ASSEMBLY (P680M**) e.
- Page 5 INSTALL DESIRED NUMBER OF HUB ASSEBMLIES (P606**) ON THE ROTATING SHAFT (TUBE108**) SPACE HUBS (P606**) ALONG ROTATING SHAFT AS DESIRED AND SECURE WITH SET SCREWS INSERT ROTATING SHAFT IN THE MOTOR END COUPLER AND TIGHTEN SET SCREW. LEAN BACK SECOND ASSEMBLY AND INSERT ROTATING SHAFT (TUBE108**) INTO THE COUPLER ADAPTER. m.
