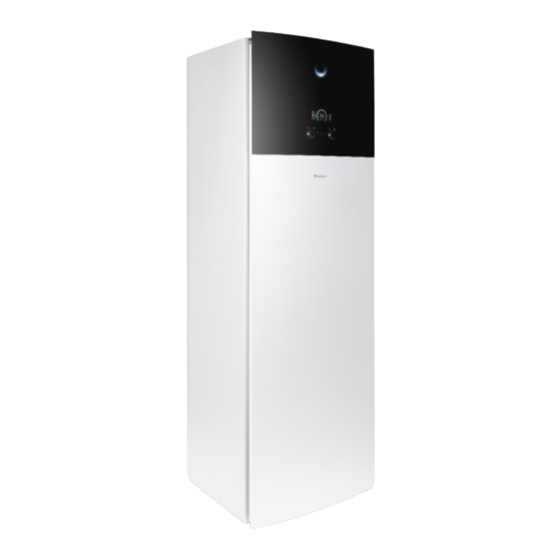

Daikin Altherma 3 R F Operation Manual
Hide thumbs
Also See for Altherma 3 R F:
- Installer's reference manual (312 pages) ,
- User reference manual (64 pages) ,
- Installation manual (48 pages)
Related Manuals for Daikin Altherma 3 R F
Summary of Contents for Daikin Altherma 3 R F
- Page 1 Operation manual Daikin Altherma 3 R F EBVZ16S18DJ6V EBVZ16S23DJ6V EBVZ16S18DJ9W Operation manual EBVZ16S23DJ9W English Daikin Altherma 3 R F...
-
Page 2: Table Of Contents
Latest revisions of the supplied documentation may be available on Symptom: You are feeling too cold (hot) in your living room..19 the regional Daikin website or via your installer. Symptom: The water at the tap is too cold ........ 19 Symptom: Heat pump failure............. -
Page 3: User Safety Instructions
Waste batteries MUST be treated at a specialised treatment facility for reuse. By ensuring waste batteries are disposed of correctly, you will help to prevent potential negative consequences for the environment and human health. EBVZ16S18+23DJ Operation manual Daikin Altherma 3 R F 4P643606-1 – 2021.09... -
Page 4: Instructions For Safe Operation
▪ User: Standard mode of the user interface. ▪ Advanced user: You can read out and edit more information ▪ If not, you can purge air immediately. Operation manual EBVZ16S18+23DJ Daikin Altherma 3 R F 4P643606-1 – 2021.09... -
Page 5: Space Heating/Cooling
1 Go to the applicable zone: Zone Go to … Main zone – Heating [2.5] Main zone > Heating WD curve EBVZ16S18+23DJ Operation manual Daikin Altherma 3 R F 4P643606-1 – 2021.09... -
Page 6: Domestic Hot Water
4 12] ▪ "5.6 Space heating/cooling ▪ "5.8 Schedule screen: Example" [ 4 14] User interface: Overview curve" [ 4 15] ▪ "5.9 Weather-dependent The user interface has the following components: ▪ User reference guide Operation manual EBVZ16S18+23DJ Daikin Altherma 3 R F 4P643606-1 – 2021.09... - Page 7 Home : Press to go back to the home screen. button d Help button : Press to show a help text related to the current page (if available). EBVZ16S18+23DJ Operation manual Daikin Altherma 3 R F 4P643606-1 – 2021.09...
-
Page 8: Menu Structure: Overview User Settings
Only applicable when EKHVCONV* is installed (**) Only accessible by installer (***) Only applicable when WLAN is installed INFORMATION Depending on the selected installer settings and unit type, settings will be visible/invisible. Operation manual EBVZ16S18+23DJ Daikin Altherma 3 R F 4P643606-1 – 2021.09... -
Page 9: Possible Screens: Overview
Go through the list of the main menu. Go to the main menu screen. Holiday mode Enable/disable breadcrumbs. Holiday mode active Item Description a Domestic hot water Domestic hot water Measured tank temperature EBVZ16S18+23DJ Operation manual Daikin Altherma 3 R F 4P643606-1 – 2021.09... -
Page 10: Main Menu Screen
Shows the applicable symbol Adjust and automatically apply the desired for your additional zone emitter type. temperature. Set the leaving water temperature for the additional zone (if present). Operation manual EBVZ16S18+23DJ Daikin Altherma 3 R F 4P643606-1 – 2021.09... -
Page 11: Detailed Screen With Values
Possible read-out information In menu… You can read out… [8.1] Energy data Produced energy, consumed electricity, and consumed gas [8.2] Malfunction history Malfunction history [8.3] Dealer information Contact/helpdesk number EBVZ16S18+23DJ Operation manual Daikin Altherma 3 R F 4P643606-1 – 2021.09... -
Page 12: Space Heating/Cooling Control
2 Select a month. 3 For each month, select an option: ▪ Reversible: Not restricted Additional zone ▪ Heating only: Restricted ▪ Cooling only: Restricted 4 Confirm the changes. Operation manual EBVZ16S18+23DJ Daikin Altherma 3 R F 4P643606-1 – 2021.09... -
Page 13: Domestic Hot Water Control
In case of frequent domestic hot water 00:00 07:00 14:00 21:00 operation, frequent and long space heating/cooling DHW tank temperature interruptions will happen. Time EBVZ16S18+23DJ Operation manual Daikin Altherma 3 R F 4P643606-1 – 2021.09... -
Page 14: Schedule Screen: Example
1 Select the day of which you want to clear the content. For example Friday 2 Select Copy. User defined 1 Delete Edit Copy Result: Next to the copied day, "C" is displayed. Operation manual EBVZ16S18+23DJ Daikin Altherma 3 R F 4P643606-1 – 2021.09... -
Page 15: Weather-Dependent Curve
Which type of curve you use to make adjustments, depends on your personal preference. "5.9.4 Using weather-dependent curves" [ 4 17]. Availability The weather-dependent curve is available for: ▪ Main zone - Heating EBVZ16S18+23DJ Operation manual Daikin Altherma 3 R F 4P643606-1 – 2021.09... -
Page 16: 2-Points Curve
For example, if leaving water temperature is in general fine but at low ambient temperatures too cold, raise the slope so that leaving water temperature is heated increasingly more at decreasingly lower ambient temperatures. Operation manual EBVZ16S18+23DJ Daikin Altherma 3 R F 4P643606-1 – 2021.09... -
Page 17: Using Weather-Dependent Curves
When the maximum or minimum setpoint is reached, the curve flattens out. EBVZ16S18+23DJ Operation manual Daikin Altherma 3 R F 4P643606-1 – 2021.09... -
Page 18: Maintenance And Service
▪ Do NOT use cleaning materials or means to accelerate the defrosting process other than those recommended by the manufacturer. ▪ Be aware that the refrigerant inside the system is odourless. Operation manual EBVZ16S18+23DJ Daikin Altherma 3 R F 4P643606-1 – 2021.09... -
Page 19: Symptom: You Are Feeling Too Cold (Hot) In Your Living Room
To manually recover it via the user interface, go to the Malfunctioning main menu screen and confirm whether the backup heater can take over the heat load or not. EBVZ16S18+23DJ Operation manual Daikin Altherma 3 R F 4P643606-1 – 2021.09... -
Page 20: Disposal
WD curve type [3.C] (read only) Tank Heat up mode [5.6] Comfort setpoint [5.2] Eco setpoint [5.3] Reheat setpoint [5.4] Setpoint mode [5.B] WD curve type [5.E] (read only) Operation manual EBVZ16S18+23DJ Daikin Altherma 3 R F 4P643606-1 – 2021.09... - Page 24 4P643606-1 0000000N 4P643606-1 2021.09 Verantwortung für Energie und Umwelt...
